Wiring Rogowski Coil

---

---



DANGER: Risk of electric shock

If the device is disconnected, the secondary side of the relevant current transformers must be short circuited.
Install the current sensors and corresponding measuring devices only when the power supply of the system is disconnected.
When the current transformer is operated with an open secondary circuit, hazardous voltages may occur at the secondary terminal blocks.



When measuring by means of current transformers or Rogowski coils, the accuracy is greatly influenced by the quality of the current sensors used. current sensors used.

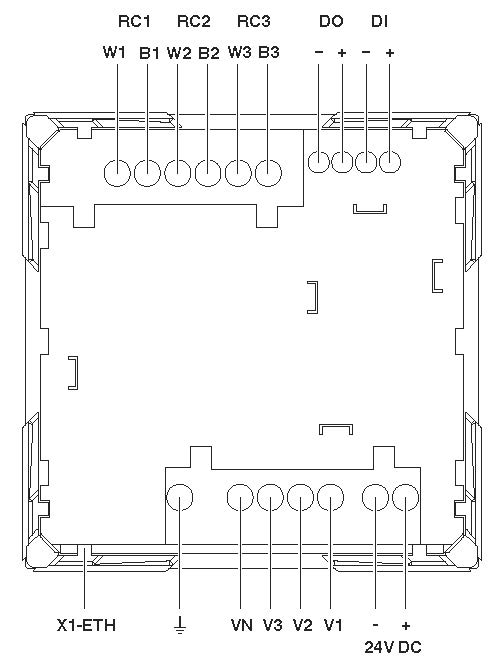

Pin assignment example



Maximum tightening torque for the relevant screws: 0.5 Nm ... 0.6 Nm.





RC1, RC2, RC3	Current measuring input, Rogowski coil
W1, W2, W3	RCP cable white
B1, B2, B3	RCP cable blue and shield
DI+, DI-	Digital input
DO+, DO-	Digital output
L, N(L)	Supply
V1, V2, V3, VN	Voltage measuring input
FE	Functional ground
X1-ETH	Modbus/TCP / REST-API (RJ45)
LED	Status
Optional (depending on the version):
1 x RS-485	RS-485 connection (Modbus/RTU)
2 x ETH RJ45	Ethernet connection (PROFINET in PN-devices)
	Ethernet connection (EtherNet/IP™ in EIP-devices)







---
