The digital output complies with IEC 61131-2 Type 3. It can be configured via the web server or the Modbus communication interface.



Impulse



Navigation on the web server

“Settings, Digital output”, “Impulse” function

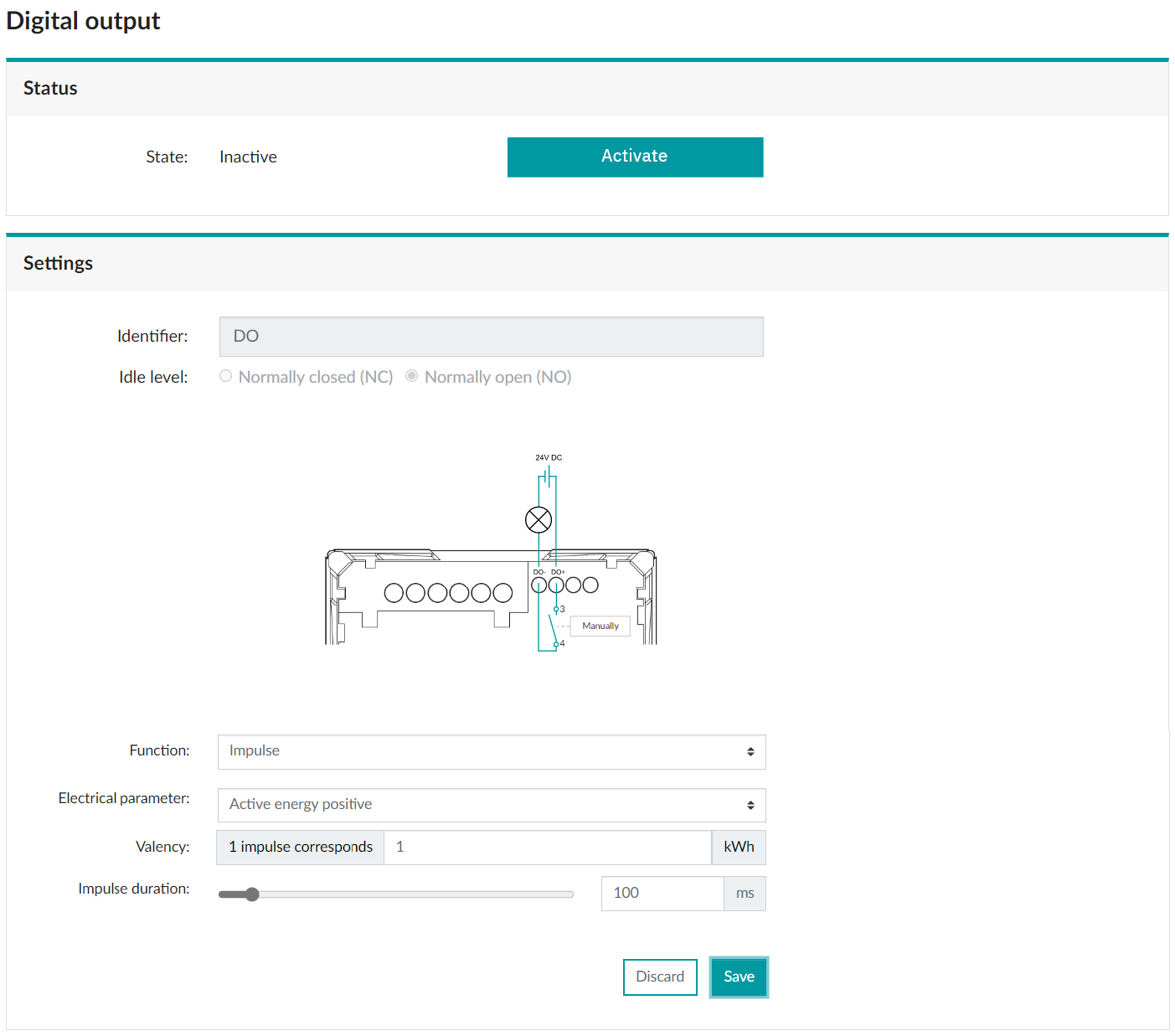

Menu: “Settings, Digital output”, “Impulse” function
Menu: “Settings, Digital output”, “Impulse” function



With the “Impulse” function, the following electrical parameters can be transmitted to a higher-level evaluation unit:

  • Active energy (positive, negative)
  • Reactive energy (positive, negative)
  • Apparent energy



Other configuration parameters are:

Valency

The impulse corresponds to the set value.

The valid value range is 0.01 … 655.35 in kWh.

Impulse duration

The valid value range is 30 … 900 in ms.
