Tariff Meter

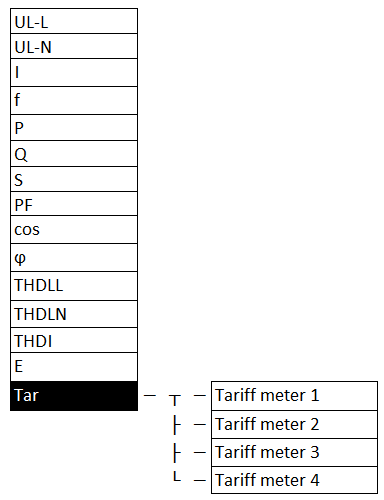

Navigation on the display

“Tar, Tariff meter 1...4“

Tariff meter (1…4)

If a tariff meter is selected/activated, counting is always performed on this meter. Tariff meters 1...4 can be reset.

Reset

The reset can be performed by means of the web server, the control buttons on the display, or the Modbus communication interface.

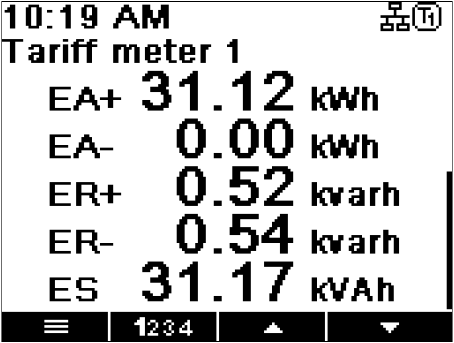

The following energy data is recorded for each tariff meter:

• Active energy: supply (Ea+), consumption (Ea-)
• Reactive energy: supply (Er+), consumption (Er-)
• Apparent energy (Es)
