cULus Recognized
Ідентифікатор відповідності: E118976-20230512| Номінальна напруга UN | Номінальний струм IN | Поперечний переріз AWG | Поперечний переріз мм2 | |
|---|---|---|---|---|
| 29.9 V | 0.5 A |
FS 0,635/ 60-FV-F-6,0
-
SMD female connectors
1439171
SMD female connector, nominal current: 0.5 A, test voltage: 500 V AC, number of positions: 60, pitch: 0.635 mm, color: black, contact surface: Au, contact connection type: Socket, mounting: SMD soldering
Докладно про виріб
| Product type | SMD female connector |
| Product family | FS 0,635/..-FV-F- 6,0 |
| Number of positions | 60 |
| Pitch | 0.635 mm |
| Number of rows | 2 |
| Pin layout | Linear pad geometry |
| Properties | |

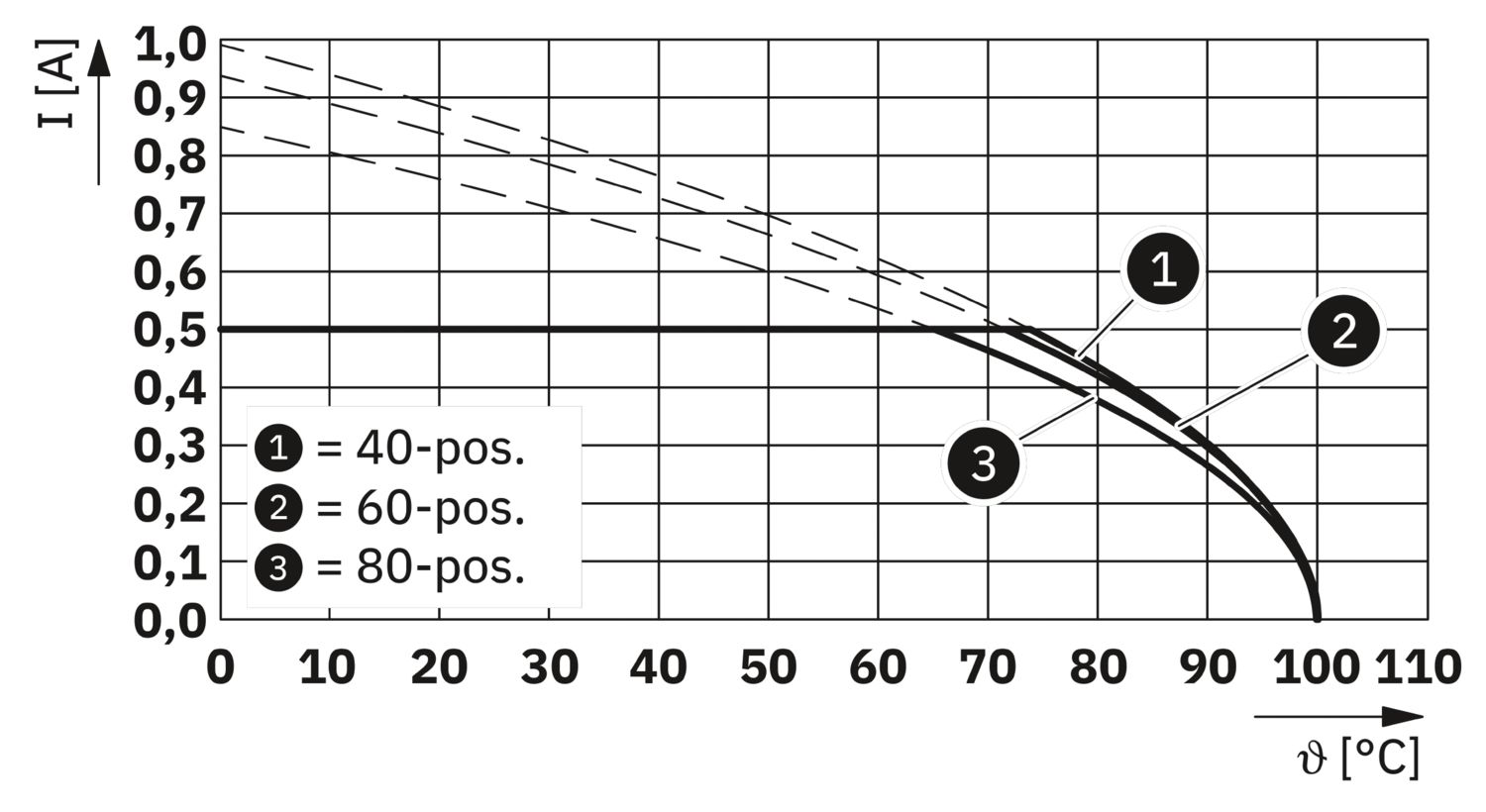

| Nominal current IN | 0.5 A IEC 60512-5-2:2002-02 (40-pos. / 60-pos. / 80-pos.) |
| Contact resistance | 70 mΩ |
| Test voltage | 500 V AC IEC 60512-4-1:2003-05 |
| Rated voltage (I/1) | 125 V |
| Rated surge voltage (I/1) | 0.8 kV |
| Data transmission | |
| Data transmission rate | 40 Gbps |
| Mounting type | SMD soldering |
| Pin layout | Linear pad geometry |
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Surface characteristics | Selective coating |
| Metal surface contact area (top layer) | Gold (Au) |
| Metal surface contact area (middle layer) | Nickel (Ni) |
| Metal surface soldering area (top layer) | Tin (Sn) |
| Metal surface soldering area (middle layer) | Nickel (Ni) |
| Material data - housing | |
| Color (Housing) | black (9005) |
| Insulating material | LCP |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 175 |
| Flammability rating according to UL 94 | V0 |
| Notes on operation | The permissible voltage during operation depends on the application, taking into consideration the air clearances and creepage distances within the scope of insulation requirements in accordance with IEC 60664-1. |
| Dimensional drawing |
|
| Pitch | 0.635 mm |
| Width [w] | 30.2 mm |
| Height [h] | 6.5 mm |
| Length [l] | 10.4 mm |
| Installed height | 6 mm |
| Application | |
| Contact cover | 0.6 mm |
| Center offset | ± 0.7 mm in longitudinal and transverse direction |
| Stack height | 8 mm Tolerance: +0.6 mm (in combination with Range of articles:FS 0,635/..-MV-R- 5,0) |
| 11 mm Tolerance: +0.6 mm (in combination with Range of articles:FS 0,635/..-MV-R- 8,0) | |
| 12 mm Tolerance: +0.6 mm (in combination with Range of articles:FS 0,635/..-MV-R- 9,0) | |
| Wipe length | 0.6 mm |
| Angular tolerance | ± 10 ° in longitudinal and transverse direction (when plugging in) |
| ± 5 ° in longitudinal and transverse direction (when plugged in) | |
| Axial offset in X direction (longitudinal) | ± 0.7 mm (in longitudinal and transverse direction (when plugged in)) |
| Axial offset in Y direction (transversal) | ± 0.7 mm (in longitudinal and transverse direction (when plugged in)) |
| Thermal test | Test group C | |
| Specification | IEC 60512-5-2:2002-02 |
| Tested number of positions | 80 |
| Insulation resistance | |
| Specification | IEC 60512-3-1:2002-02 |
| Insulation resistance, neighboring positions | ≥ 5 GΩ |
| Air clearances and creepage distances | | |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | IIIa |
| Minimum value for clearance and creepage distance | 0.2 mm |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 55 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 1.52 mm |
| Acceleration | 181 m/s² |
| Test duration per axis | 2 h |
| Test directions | X-, Y- and Z-axis |
| Durability test | |
| Specification | IEC 60512-9-1:2010-03 (following) |
| Contact resistance R1 | 70 mΩ |
| Contact resistance R2 | 70 mΩ |
| Insertion/withdrawal cycles | 50 |
| Insulation resistance, neighboring positions | ≥ 5 GΩ |
| Climatic test | |
| Specification | IEC 60068-2-60:2015-06 |
| Corrosive stress | Method 4, 10 days |
| Thermal stress | 125 °C/168 h |
| Power-frequency withstand voltage | 500 V |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 125 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Dimensional drawing |
|
| Type of packaging | 56 mm wide tape |
| [W] tape width | 56.4 mm |
| [W2] coil overall dimension | ≤ 60.4 mm |
| [A] coil diameter | ≤ 330 mm |
| Outer packaging type | Transparent-Bag |
| ESD level | (D) electrostatically conductive |
| Specification | DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07 |
Сумісна продукція
Переваги
Design-in support during device development using MCAD/ECAD data and a free sample service
Cost and space savings with the comprehensive portfolio available in various stack heights
Easy mating with integrated keyways and tolerance compensation for error-free production
Absorption of tolerances and mechanical stresses for a secure connection due to the floating function
Unique combination: tolerance compensation through floating and very high data transmission possible in one connector
