HBUS8 107,6-8P-1S BK - DIN rail bus connectors - 1252173

Product properties

Product type	DIN rail connector
Product family	BC 107,6..
Number of positions	8
Pitch	2.54 mm

Electrical properties

Properties
Nominal current I_N	3 A (per contact)
Contact resistance	35.7 mΩ
Rated voltage (III/3)	60 V
Rated surge voltage (III/3)	1.5 kV
Rated voltage (III/2)	100 V
Rated surge voltage (III/2)	1.5 kV
Rated voltage (II/2)	150 V
Rated surge voltage (II/2)	1.5 kV

Connection data

Maximum load current	3 A

Material specifications

Material data - contact
Contact material	Cu alloy
Surface characteristics	Completely gold-plated
Material data - housing
Color (Housing)	black (9005)
Insulating material	PA
Insulating material group	I
CTI according to IEC 60112	600
Flammability rating according to UL 94	V0
material specifications - connector
Color ()	()

Dimensions

Pitch	2.54 mm
Width [w]	111.23 mm
Height [h]	13.54 mm
Length [l]	36.82 mm

Mounting

Mounting type	DIN rail mounting

Mechanical tests

Visual inspection
Specification	IEC 60512-1-1:2002-02
Result	Test passed
Dimension check
Specification	IEC 60512-1-2:2002-02
Result	Test passed

Environmental and real-life conditions

Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.15 mm (10 Hz ... 58.1 Hz)
Acceleration	20 m/s²
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis (pos. and neg.)
Durability test
Specification	IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level	1.75 kV
Contact resistance R₁	35.7 mΩ
Contact resistance R₂	35.7 mΩ
Insertion/withdrawal cycles	25
Climatic test
Specification	DIN 50018:2013-05
Corrosive stress	0.2 dm³SO₂on 300 dm³/40 °C/1 cycle
Thermal stress	100 °C/168 h
Power-frequency withstand voltage	0.84 kV
Glow-wire test
Specification	IEC 60695-2-10:2013-04
Temperature	850 °C
Time of exposure	30 s
Shocks
Specification	IEC 60068-2-27:2008-02
Pulse shape	Semi-sinusoidal
Acceleration	150 m/s²
Shock duration	11 ms
Test directions	X-, Y- and Z-axis (pos. and neg.)
Ambient conditions

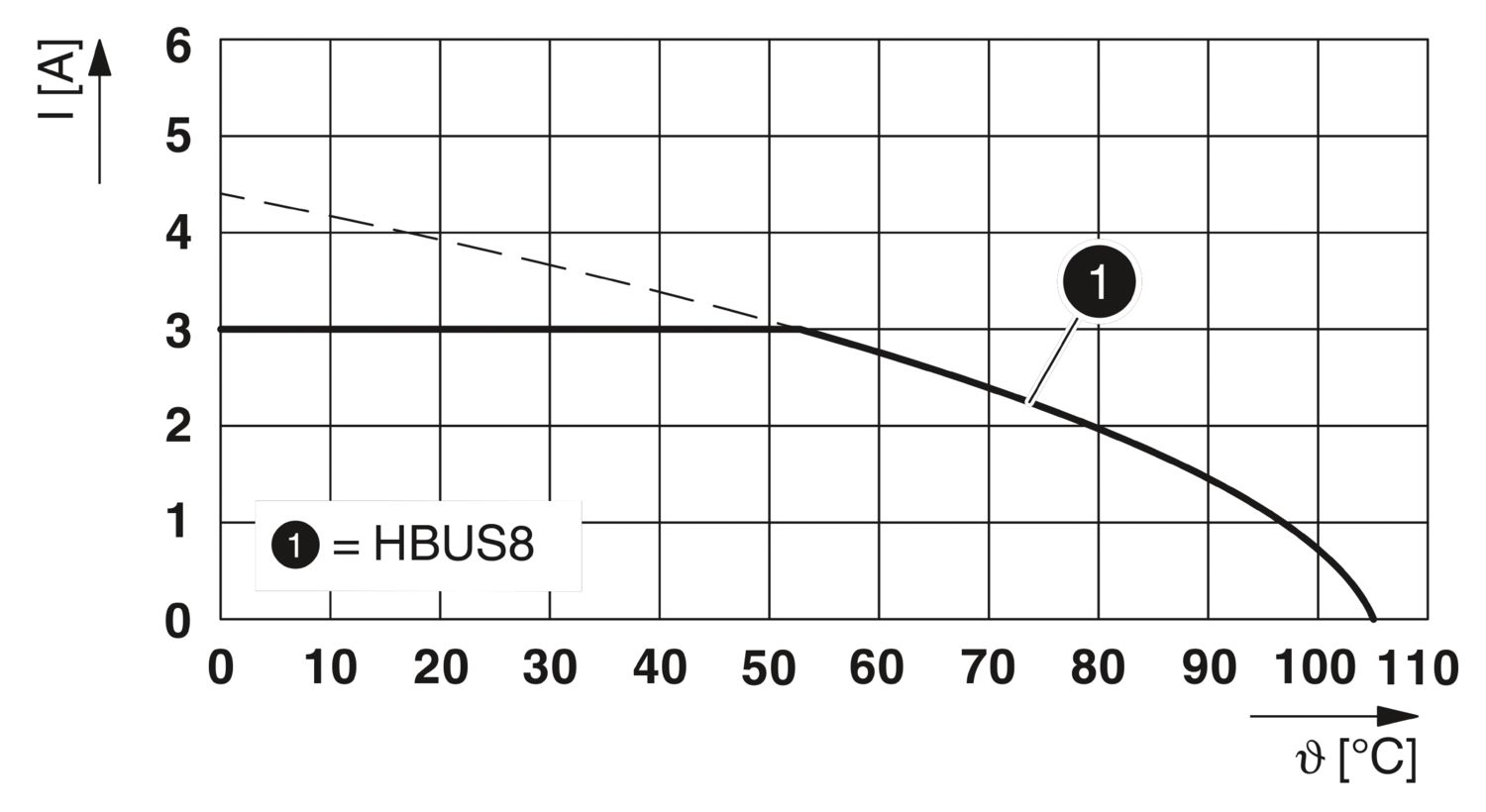

Ambient temperature (operation)	-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)	-40 °C ... 55 °C
Relative humidity (storage/transport)	80 %
Ambient temperature (assembly)	-5 °C ... 100 °C

Electrical tests

Air clearances and creepage distances \|
Specification	IEC 60664-1:2007-04
Insulating material group	I
Rated insulation voltage (III/3)	60 V
Rated surge voltage (III/3)	1.5 kV
minimum clearance value - non-homogenous field (III/3)	0.8 mm
minimum creepage distance (III/3)	1.6 mm
Rated insulation voltage (III/2)	100 V
Rated surge voltage (III/2)	1.5 kV
minimum clearance value - non-homogenous field (III/2)	0.5 mm
minimum creepage distance (III/2)	0.71 mm
Rated insulation voltage (II/2)	150 V
Rated surge voltage (II/2)	1.5 kV
minimum clearance value - non-homogenous field (II/2)	0.5 mm
minimum creepage distance (II/2)	0.8 mm

Packaging specifications

Артикул	1252173
Пакувальна одиниця	10 Шт.
Мінімальний обсяг замовлення	10 Шт.
Код виробу	ACHBBA
GTIN	4063151358754
Маса штуки (з упаковкою)	22,68 g
Маса штуки (без упаковки)	20 g
Митний тарифний номер	85366930
Країна походження	CN

ECLASS-11.0	27460202
ECLASS-12.0	27460202
ECLASS-13.0	27460202

EU RoHS
Відповідає вимогам Директиви RoHS	Так (Винятки відсутні)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Відсутність небезпечних речовин, що перевищують граничні значення
EU REACH SVHC
Інформація щодо речовини-кандидата за Регламентом REACH (№ CAS)	Речовини з масовою часткою більше ніж 0,1 % відсутні
