DC charging cable with vehicle charging connector and free cable end for fast charging of electric vehicles (EV) with direct current (DC) via CCS type 2 vehicle charging inlets, for installation at charging stations for e-mobility (EVSE)
CHARX PT2H-DC800-5,0MEC00P
-
DC charging cable
1820938
CHARX connect professional, CCS type 2, HPC DC charging cable, up to 1000 A in Boost mode, 800 A permanent, 1000 V DC, with cooled vehicle charging connector and cooled cable, cable: 5 m, black, straight, with replaceable mating face frame, with EVSE connection module, with replaceable signal, PE, and DC power contacts, PHOENIX CONTACT logo, IEC 62196-1, IEC 62196-3, IEC 62196-3-1, for charging electric vehicles (EV) with direct current (DC)
Product details
| Product type | DC charging cable |
| Product family | CHARX connect professional |
| Application | for charging electric vehicles (EV) with direct current (DC) |
| for installation at charging stations for electromobility (EVSE) | |
| Type | HPC DC charging cable |
| with cooled vehicle charging connector and cooled cable | |
| Design | with replaceable mating face frame |
| with EVSE connection module | |
| with replaceable signal, PE, and DC power contacts | |
| Technology | Combined Charging System |
| High Power Charging | |
| Affixed logo | PHOENIX CONTACT logo |
| Charging standard | CCS type 2 |
| Charging mode | Mode 4 |
| Cooling system | |
| Cooling | in the vehicle charging connector and in the cable |
| Coolant | 50% water, 50% glycol (Glysofor N) |
| Cooling hose diameter | 2x 8.00 mm Supply hose |
| 2x 8.00 mm Return hoses | |
| Flow rate | 2 l/min |
| Operating pressure | 1.00 bar ... 2.00 bar |
| Relief pressure | 2.00 bar |
| Maximum permissible pressure | 4.00 bar |
| Flow-in temperature | 15 °C |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 |
| Coding | 1500 Ω (between PE and PP) |
| Type of charging current | DC |
| Charging power | 800 kW |
| Charging current | 800 A DC |
| Type of charging current | DC |
| Type of charging current | DC Boost Mode |
| Charging power | up to 1000 kW (Boost Mode, depending on the ambient conditions. For further information on implementation, please contact your local Phoenix Contact office and see the packing slip in the download area for this item.) |
| Charging current | up to 1000 A DC |
| Power contact | |
| Number | 3 (PE, DC+, DC-) |
| Rated voltage | 1000 V DC |
| Rated current | 800 A (up to 40 °C) |
| 200 A (during operation without cooling) | |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Temperature sensors (Pt 1000) | |
| Sensor type | Pt 1000 |
| Attachment point | 2 sensors for the DC contacts |
| Switch-off temperature | 90 °C |
| Vehicle charging connector | |

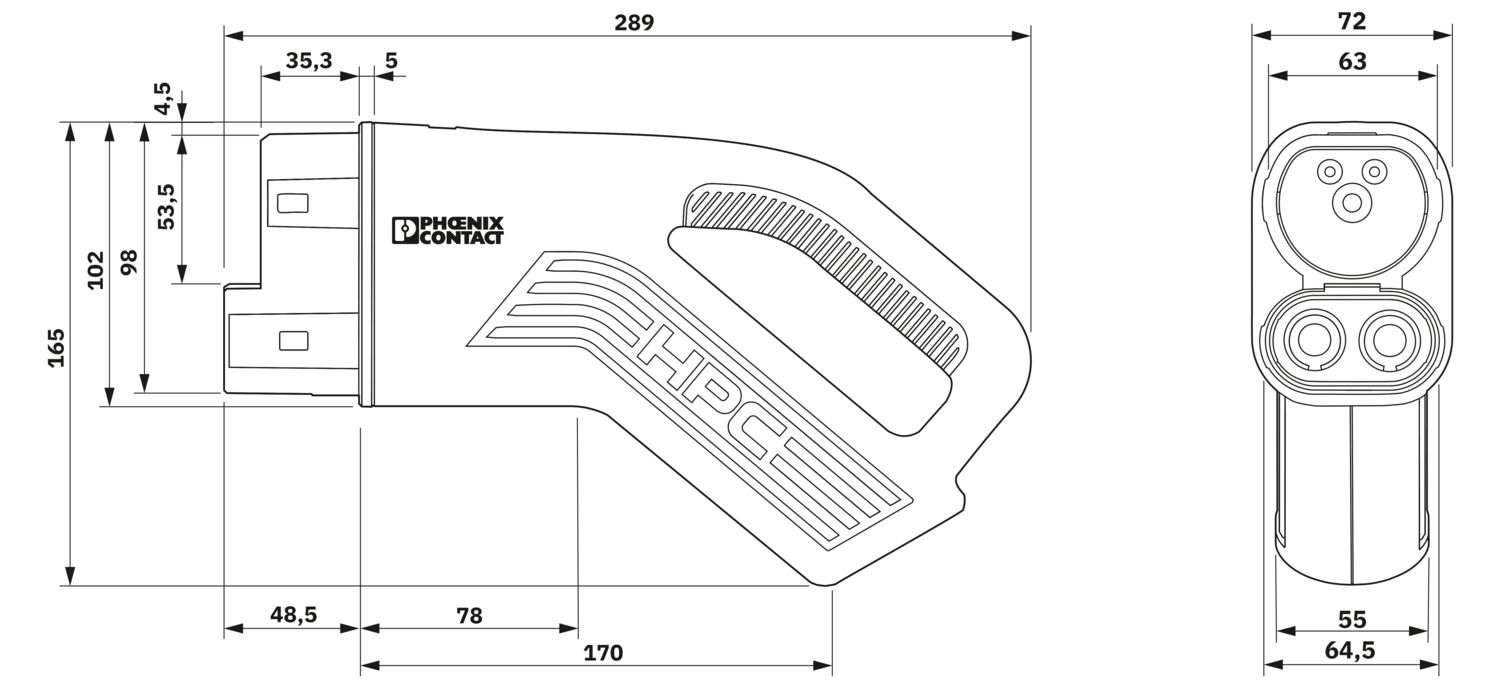

| Dimensional drawing |
Make sure that the vehicle charging connector is placed in an appropriate charging connector holder, which ensures a minimum protection rating of IP24 in accordance with IEC 61851-1, for the entire time between charging. To create this charging connector holder, use the dimensions of the vehicle charging connector. Detailed dimensions can also be found in the Download area.
|
| Width | 72 mm |
| Height | 165 mm |
| Depth | 289 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | EVM-1 in accordance with EN 50620 |
| Material (Contact surface) | Silver |
| Flammability rating according to UL 94 | V0 (Mating face) |
| Cable length | 5 m |
| Wiring standards/regulations | IEC 62893-4-2 |
| Cable weight | max. 1870.00 kg/km |
| Cable type | straight |
| Cable structure | 4 x 25 mm²(T) + 1 x 25 mm² + 8 x 0.75 mm² |
| External cable diameter | 38.00 mm ±0.5 mm |
| Outer sheath, material | EVM-1 in accordance with IEC 62893-1 |
| Cable resistance | ≤ 0.00078 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 380 mm (10x Ø) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 (based on IEC 62196-1) |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP67 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Ambient temperature (operation) | -30 °C ... 40 °C |
| max. 55 °C (Current reduction required, observe the DC contact temperature limit value of 90°C) | |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-1 |
| IEC 62196-3 | |
| IEC 62196-3-1 | |
Your advantages
Complete product range
The right charging cable for every application, from the carport to the charging park
Convenient handling due to the ergonomic design
Available with your logo on request - for consistent branding of your charging station
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Maintenance-friendly replacement of the mating face frame without draining the coolant
