HIGHLIGHTS 2019
Creative solutions for a smart world
Phoenix Contact will support you on your journey to a smarter world with a versatile range of innovative products, software, services, and expertise tailored to your applications.
Digitalization creates added value
“Thanks to the expertise of around 2000 engineers, we are the pioneer for new products, systems, and solutions.
Digitalization is the way forward if it creates added value. Read on to discover how this can be an option for you. In the field of control cabinets, we illustrate examples of how digital data significantly reduces the workload and how we can support you in this process. New opportunities are created by intelligent linking of data. Move into the future with digital business models: the PLCnext Store makes it easy to implement new solutions.
Enjoy discovering new possibilities.”
The comprehensive control cabinet solution
Optimized engineering
Control cabinet manufacturers are having to develop new approaches in order to remain competitive. As part of a collaborative partnership, we provide holistic solutions which enable system-wide use of digital data, optimization of processes, and time savings.
The COMPLETE line system allows you to optimize your processes – from project concept to implementation, through to operation of your applications.
The comprehensive control cabinet solution
Rapid, systematic installation
Coordinated hardware and software components are the key to the cost-effective production of control cabinets – whether for one-off or high-volume orders.
The consistent COMPLETE line system includes all of the key components and accessories necessary for your automation solution. It is consistent in terms of design, handling and function. This enables control cabinets to be installed quickly and intuitively.
The comprehensive control cabinet solution
New approaches to control cabinet manufacturing
Control cabinet manufacturing is characterized by a high proportion of process costs. Reducing these costs is the ideal starting point for improving efficiency in the production of machines and systems. Our experts will collaborate with you in developing new concepts tailored ideally to your unique operating environment. Take advantage of our experience in control cabinet manufacturing and machine building to develop successful solutions for optimizing your processes.
Optimizing operation and maintenance
Keeping the pulse of your system

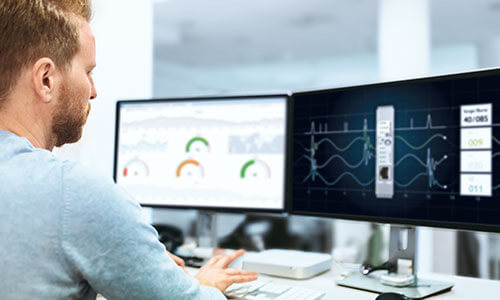

Intelligent monitoring system
Clear insight into the system
ImpulseCheck is the world's first intelligent assistance system for surge protection in the field of mains protection. The module enables you to measure the remaining life expectancy of every single protective device via a cloud connection and gives you access to new digital services, such as the automated ordering of replacement plugs.
Advantages
Keeping the pulse of your system: measure the status of your system and determine the remaining life expectancy (state of health) of the surge protective devices.
Always on the safe side: standard-compliant status reports, at any time at the push of a button.
Using digital added values and services: cloud-based logging, representation and combination of measured values enable completely new automated processes.
Reliable supply
Powerful performance for individual applications
Power supplies for superior system availability
The powerful QUINT POWER 40 A power supplies ensure maximum system availability, thanks to superior functionality. With a powerful output side, robust input side, and comprehensive signaling, the QUINT POWER power supplies represent cutting edge technology.
Advantages

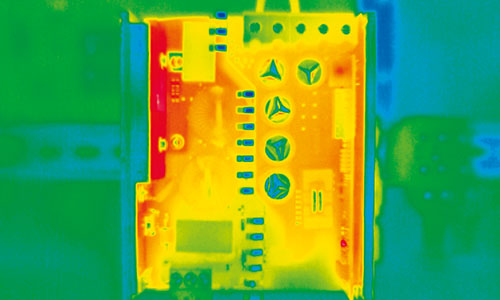

The innovative PFC (Power Factor Correction) concept enables efficiency to be increased over the entire power range. Benefit from your power supply having an even longer service life.
Without inrush currents, unintended backup fuse tripping is prevented in the event of grid fluctuations. You can therefore install more devices on each conductive path.
Preventive function monitoring signals the loss of a phase in the three-phase grid or a short circuit in good time. Your system will continue to be supplied reliably, whatever the situation.

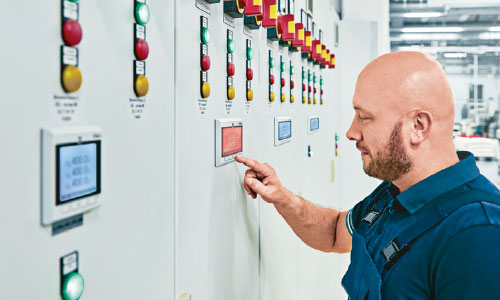

Transparent energy monitoring
The fastest way to measure energy use

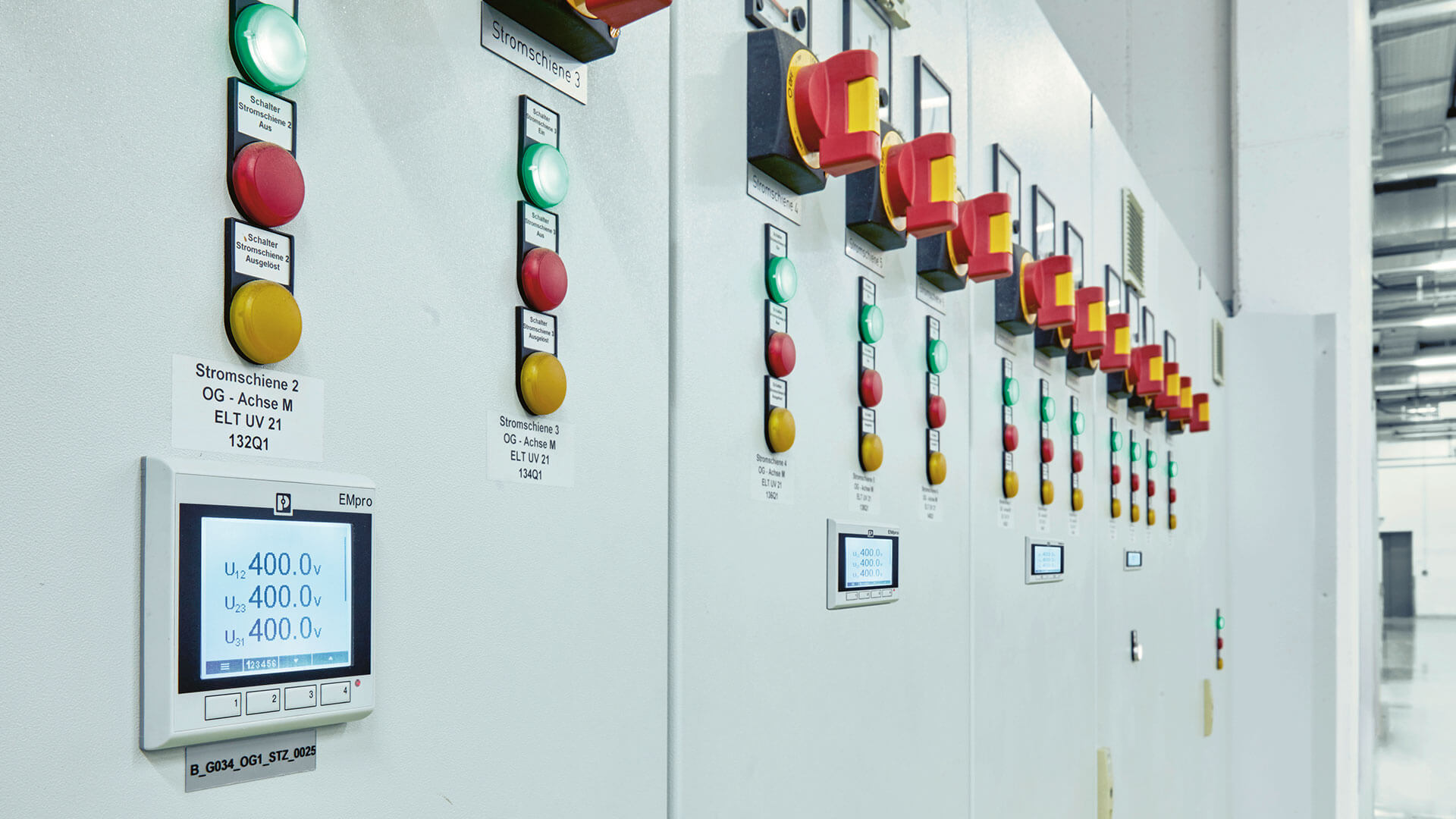

EMpro measuring devices for your energy management
Energy measurement in just three steps
Set up the communication interface, select the power grid type, and configure the measuring input: the EMpro energy measuring devices are configured and integrated into the network within minutes. Save on wiring outlay, thanks to the direct connection of manufacturer-independent current sensors, and benefit from the many practice-oriented web server and device functions.
Advantages

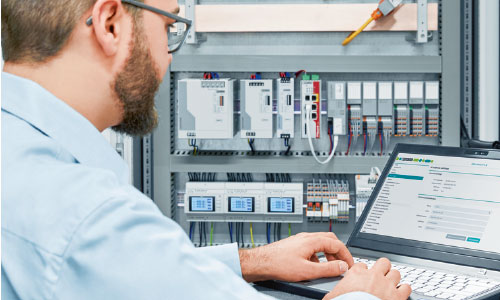

The user-guided installation wizard enables you to configure and start the device up intuitively. You can configure additional devices by simply duplicating the configuration files via the web server.
The Rogowski measuring input will save you a great deal of time during wiring and configuration: you can connect Rogowski coils from any manufacturer on the market directly, which means you can omit the measuring transducer that would normally otherwise be used.
Export the current configuration data along with historical signal and error lists for rapid troubleshooting. Errors and alarm statuses are quickly visible on site, thanks to a color change on the display.
Simple replacement
Modernization made easy
Terminal blocks with Push-in connection
Feed-through and function terminal blocks

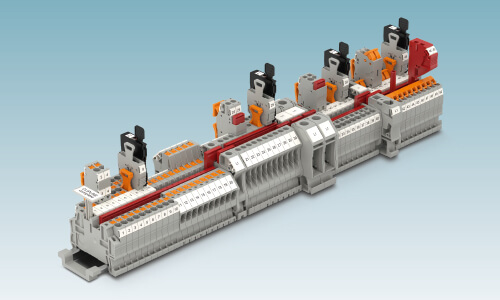

In addition to the feed-through versions for two, three, and four conductors, the product range of terminal blocks with vertical conductor connection also includes terminal blocks with function. These include knife disconnect terminal blocks and disconnect terminal blocks with a standardized plug-in zone for component connectors and fuse plugs.
Advantages
PTV terminal blocks bring together the best of two worlds: easy, tool-free conductor connection with Push-in Technology and the straight, clear conductor routing of the screw connection.

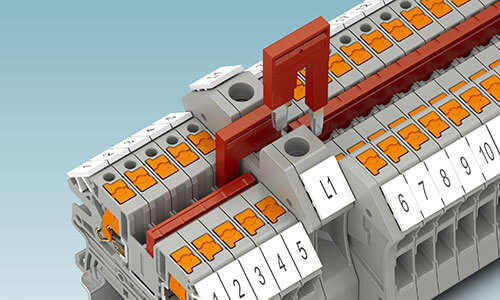

Using reducing bridges, potential distribution systems can also be set up as terminal blocks with differing connection technologies and a larger cross section.
The PTV terminal blocks are a part of the COMPLETE line system. They utilize the standardized bridge, testing and marking accessories of this range.
Consistent connections
Compatibility ensures high availability
M17-M40 PRO series connectors
Non manufacturer-specific connections
M17-M40 PRO series circular connectors offer uniform solutions for signal and power transmission. Thanks to the unique ONECLICK fast locking system you can connect your device quickly and safely.
Advantages
Highest availability worldwide: solutions with cross-manufacturer compatibility for standard and fast locking systems.

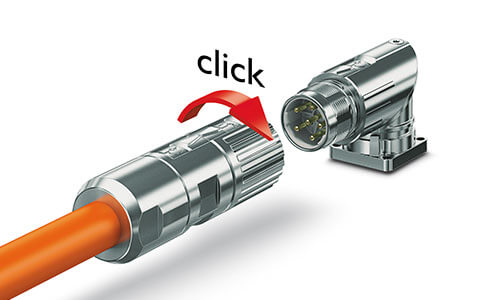

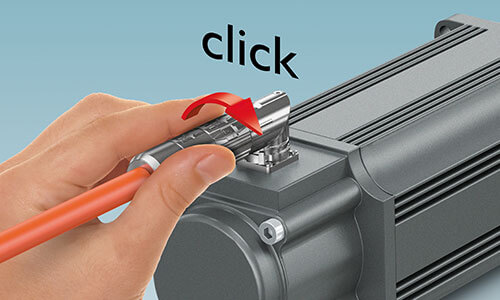

Secure connection: ONECLICK fast locking system with an optically, haptically, and acoustically clear locking position.
All-round protection: easy and reliable shield connection for cost-effective cable assembly.

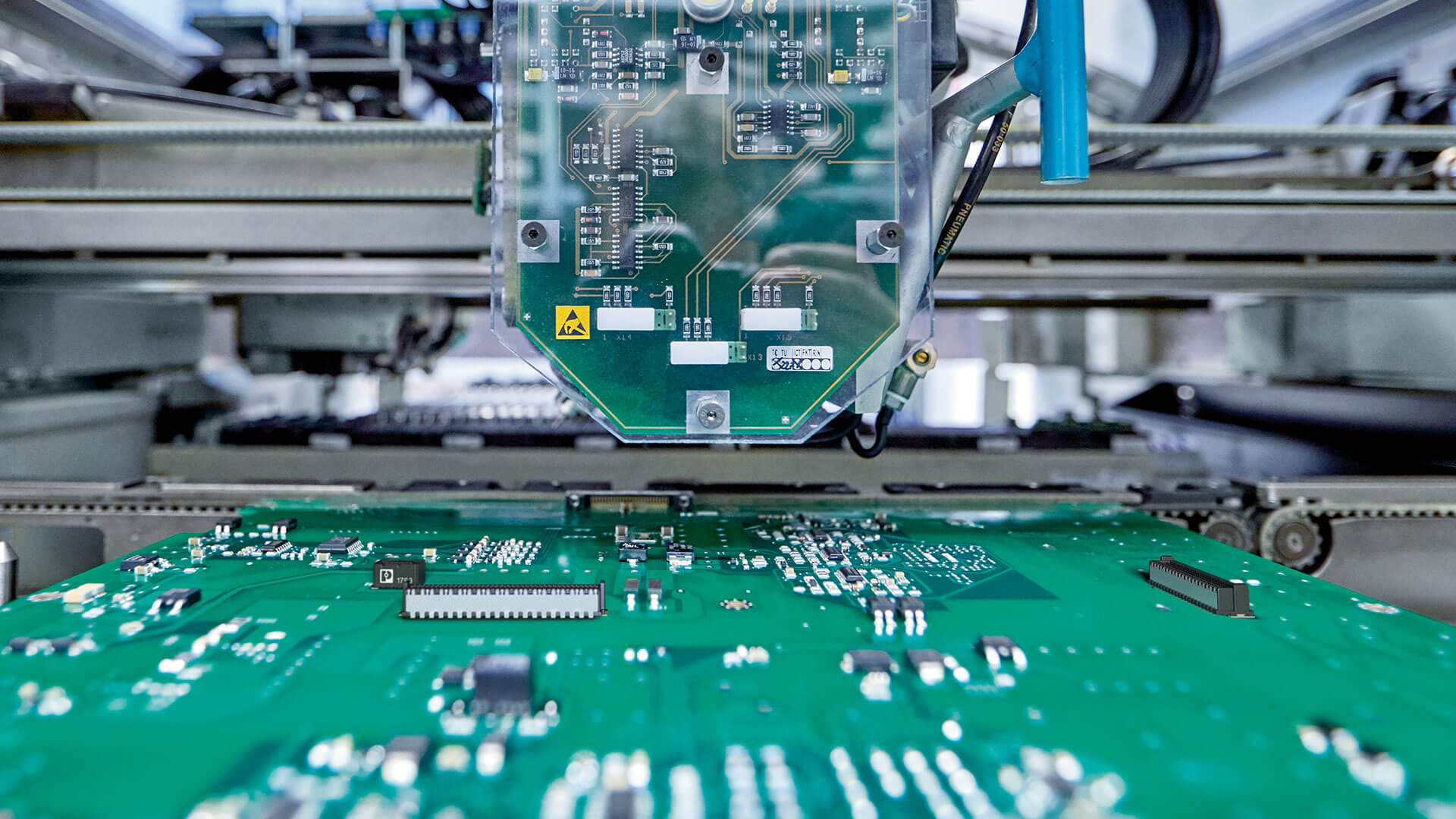

Connecting PCBs intelligently
Developing devices flexibly
Robust connectors from the FINEPITCH series
Connectivity for all dimensions
With FINEPITCH board-to-board connectors, Phoenix Contact provides shielded and unshielded solutions for signal and data transmission for the first time. This allows you to realize individual PCB orientations with different designs, stack heights, and numbers of positions in compact 0.8 and 1.27 mm pitches.
Advantages

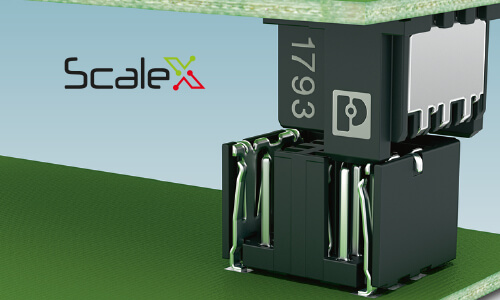

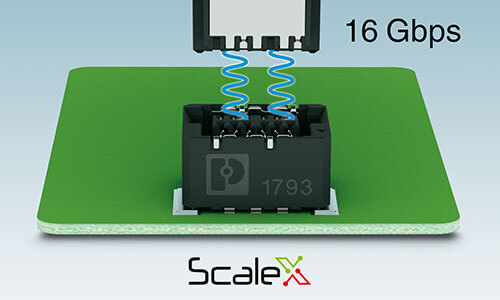

Robustness: ScaleX technology for high-level tolerance compensation and contact protection.
Data rates of up to 16 Gbps: with closed shielding concept for high EMC protection as an option.

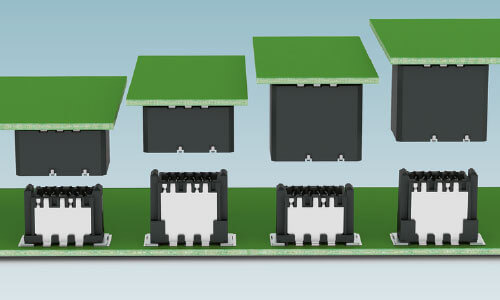

Flexible device design: various numbers of positions, designs, and stack heights with high wipe lengths.
Designing housing fronts
Individually in lot sizes of one
Your individual ICS housings
Three steps to your own design
Configure the ICS housing system with graduated sizes, variable connection technology, and optional bus connectors. From now on, you can also equip it with a distinctive cover design. You are therefore able to overcome the challenges of future-oriented automation technology while retaining your individual company design.
Advantages
A free rein for your ideas and requirements: using our intuitive configurator you can tailor your covers to your own design, thus retaining your company-specific features.
Sample covers per mouse click: thanks to the PROTIQ additive cover production system, our market place for 3D printing, your prototype set will be available in just a few days – in various colors upon request.
Once you have decided on your design, an experienced team of specialists is available for the rapid transition to series production at Phoenix Contact.
Intelligent charging park management
Integrating future-proof electromobility
The software for your charging park management
EV Charging Suite optimizes charging stations
The scalable software forms the interface between the driver, backend provider, power grid operator, and charging park operator. Integrating real-time data into your energy management system enables, for example, environmentally-sound charging with renewable energy, and ensures that enough power remains in reserve for other consumers. Tailored user roles, intuitive touch operation for charging park customers, and precise billing via the Open Charge Point Protocol (OCPP) round off the package.
Advantages

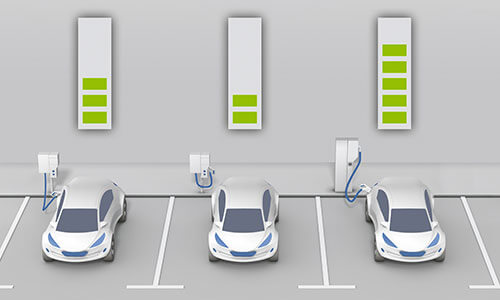

The integrated load management system ensures optimum distribution of the available connected load to all charging points, in accordance with configurable rules. This prevents overloads and safeguards the availability of your charging park.
Configure, control, and monitor your charging park via web browser. Manage users and charging points, release charging processes, and access all data – clearly visualized and ready for export.
You can purchase graded software licenses suited to the number of your charging points. You can easily add new charging points without having to completely reconfigure the system. We provide cost-effective upgrades for larger extensions.
Open and safe automation
Programming intelligent solutions
The safety controller for PLCnext Technology

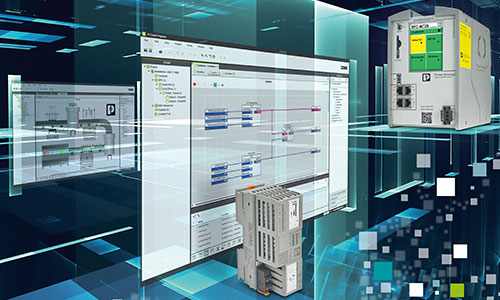

PLCnext Control RFC 4072S
The PLC is equipped with a powerful Intel® Core™ i5 Dual Core processor. The safety-relevant calculations are performed by two independent CPUs that are based on different architectures. This makes it suitable for applications with high safety requirements in accordance with SIL 3 and PL e. The safety-oriented controller uses the latest PROFIsafe profile, V2.6.1, for PROFINET and PROFIsafe systems.
Advantages
Use your preferred programming languages and programming environments, open source software, and apps. Expand your potential, now also via the PLCnext Store.
Ensure the safety of your machinery through the use of diversified CPUs, which support up to 300 PROFIsafe devices. Thanks to PLCnext Engineer, you can program standard and safety applications in just one tool.
Using an Intel® Core™ i5 Dual Core processor and two powerful processors based on the ARM architecture enables one of the best performance capabilities on the market.
New technologies – New possibilities
The digital marketplace for automation
The PLCnext Store is an extension of the PLCnext Technology ecosystem. It includes hardware, software, and an ever increasing community of innovators, lateral thinkers, and decision makers. The digital marketplace features applications (apps) that are designed especially for automation technology. It includes software libraries for accelerated PLC programming and apps for extending the functionality of a PLCnext Control, without the need for any programming knowledge whatsoever.
New technologies – New possibilities

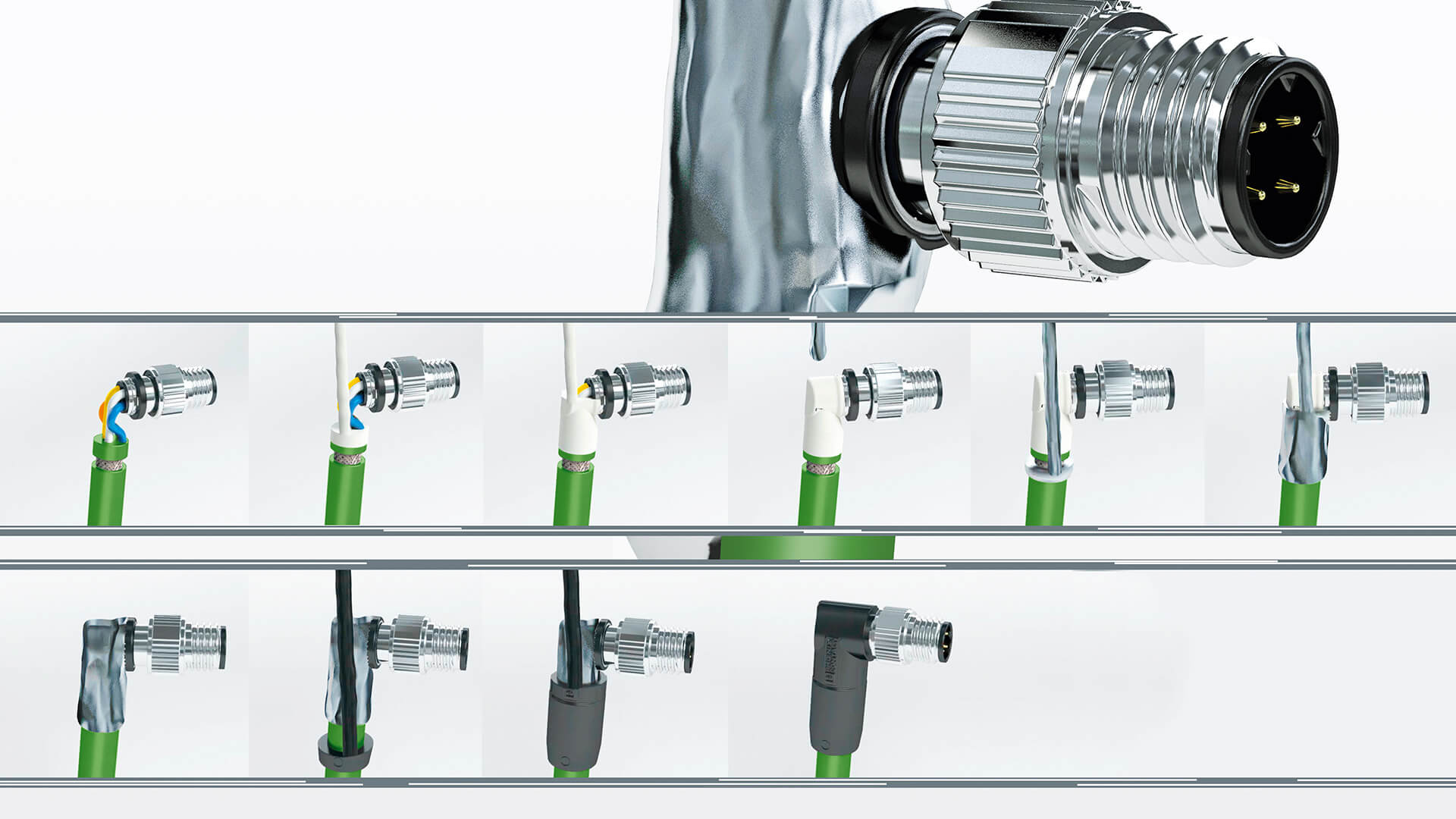

Absolutely secure shielding
Advanced Shielding Technology is the innovative shielding concept for assembled connectors. Liquid metal completely encloses the cable shielding during the manufacturing process and guarantees an absolutely secure and reliable shield connection. You can thus increase the transmission quality of data, signals, and power even when exposed to extreme environmental influences. Place your trust in future-proof cabling for state-of-the-art factory automation.
