Sleeve housing - VC-MEMV-T4-Z-M25
1886582

Sleeve housings, Range of articles: VARIOCON, Sleeve housing, type: VC4, housing material: Zinc die-cast, color: nickel


Product Details




Safety note
Safety note WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50 V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by Phoenix Contact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Operate the connector only when it is fully plugged in.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Type VC4
Product type Sleeve housings
No. of cable outlets 1
Type of the screw connection M25
Housing type Sleeve housing
Locking type Screw locking, cylinder head
Shielded yes
Cable outlet angled

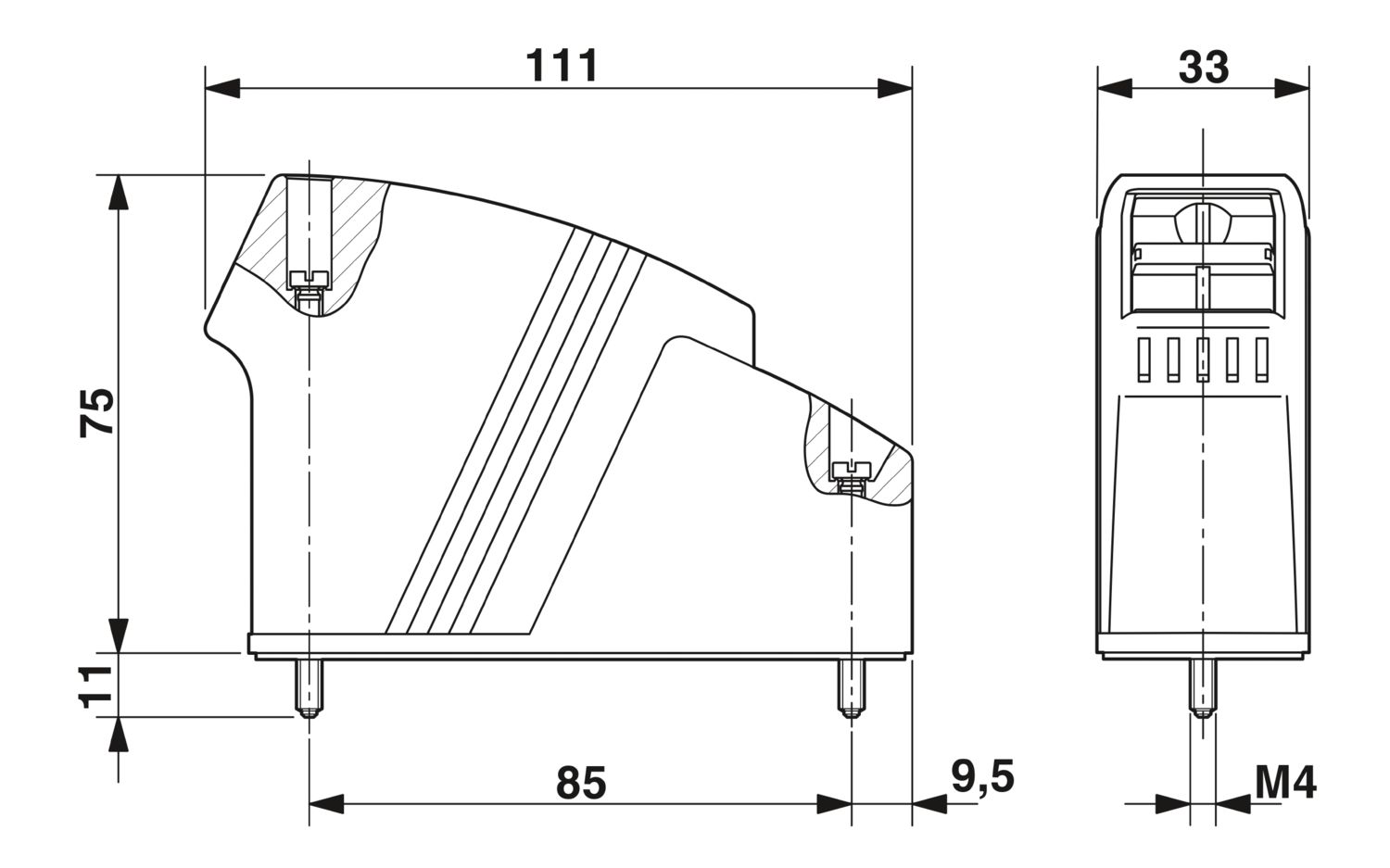

Dimensional drawing
Width 33 mm
Height 75 mm
Length 111 mm

Color nickel
Color of the housing part gray
Material Zinc die-castNickel (Housing)
NBR (O-ring)
Flammability rating according to UL 94 V0
Sealing material EPDM, conductive
O-ring material NBR
Material of locking screw Stainless steel
Housing material Zinc die-cast

Mechanical data
Type of the screw connection M25
Locking type Screw

Ambient conditions
Degree of protection IP67 (IEC 60529)
Degree of protection IP65/IP66/IP67
Ambient temperature (operation) -40 °C ... 125 °C

Item number 1886582
Packing unit 1 pc
Minimum order quantity 5 pc
Sales Key A16
Product Key ABLAAB
Catalog Page Page 367 (PC-2009)
GTIN 4017918848002
Weight per Piece (including packing) 355.34 g
Weight per Piece (excluding packing) 355.34 g
Customs tariff number 85389099
Country of origin PL


ECLASS

ECLASS-9.0 27440202
ECLASS-10.0.1 27440202
ECLASS-11.0 27440202

ETIM

ETIM 8.0 EC000437

UNSPSC

UNSPSC 21.0 31261500

EAC

Approval ID: B.01687

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
