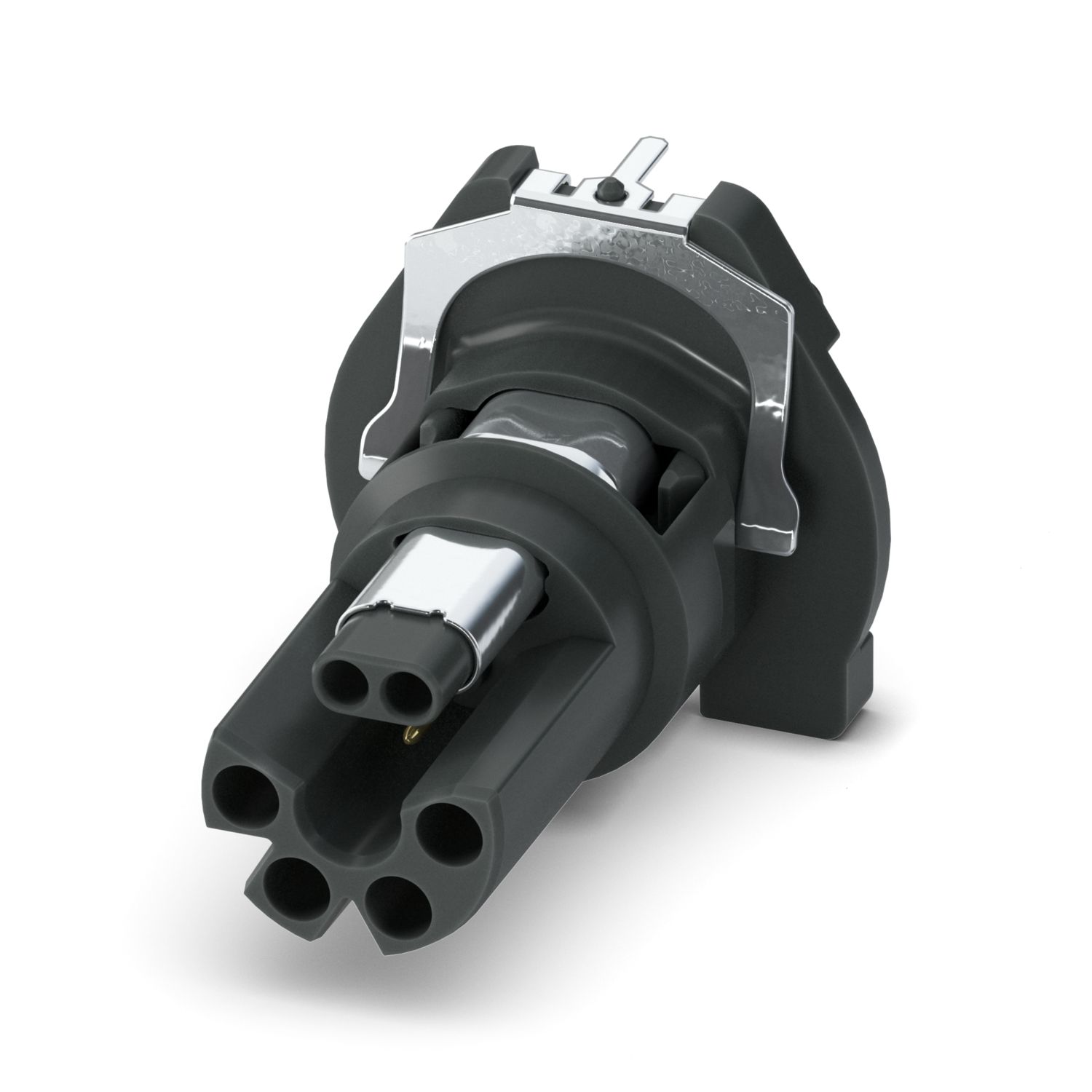

SPE-T1-M12HC2FSF-180
-
SPE PCB connector
1439722
SPE PCB connector, number of positions: 7, CAT B (ISO/IEC 63171), material: LCP, connection method: THR solder connection
Product details
Your advantages
Hybrid connector combines data and power
Connectors in accordance with IEC 63171-7
THR solderable
Data transmission up to 600 MHz
Frequently asked questions
What are the advantages of using an SPE M12 hybrid connector?
The SPE hybrid connector has a very compact SPE data element. This allows more space for power contacts and results in the following benefits:
- Higher performance classes
- More flexibility through individual assembly
- Higher data transmis...
View more
The SPE hybrid connector has a very compact SPE data element. This allows more space for power contacts and results in the following benefits:
- Higher performance classes
- More flexibility through individual assembly
- Higher data transmission rates of up to 1 Gbps
- Higher ranges of up to 1000 m
How much power can I transmit with an SPE M12 hybrid connector?
Which data transfer rates can I achieve with the SPE M12 hybrid connector?
Data transmission rates of up to 1 Gbps (600 MHz) CAT B are possible.
What is the benefit of four power contacts?
