EG 90-AE/ABS GN
-

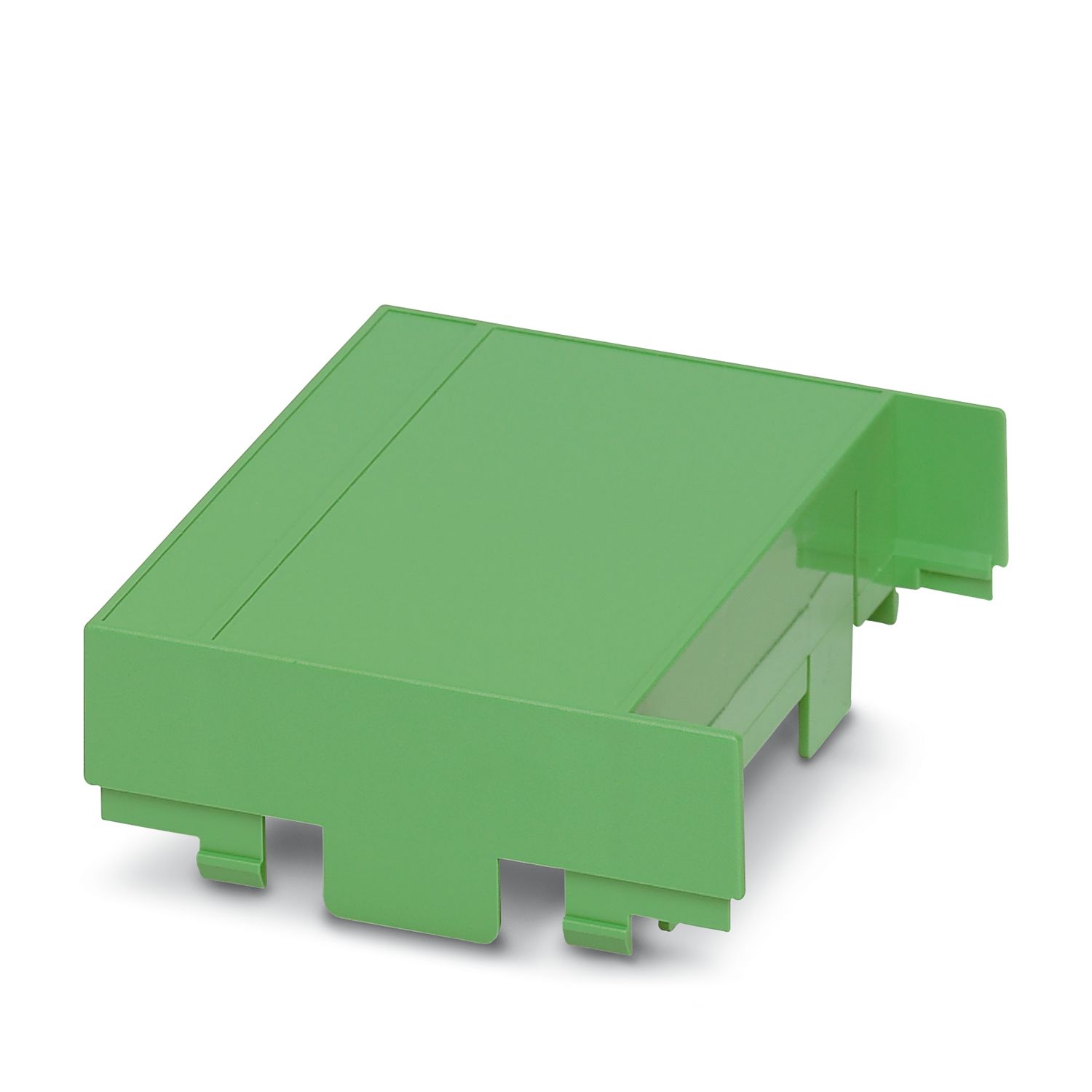

Upper part of housing
2907350
Housing cover, for connection on one side
Product details
| Product type | Upper housing part |
| Product family | EG |
| Number of positions | 34 |
| Type | Cover, for one-sided connection |
| Housing type | Component housing |
| Ventilation openings present | no |
| Housing series | EG |
| Dimensional drawing |
|
| Width | 90 mm |
| Height | 75 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color | green (6021) |
| Flammability rating according to UL 94 | HB |
| Surface characteristics | untreated |
| Housing material | ABS |
| Ambient conditions | |
| Degree of protection | IP20 |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | Snap in |
| Mounting position | Vertical (horizontal DIN rail) |
Your advantages
Tool-free mounting
