M23-16P1N12W500S - Device connector front mounting

1679710

M23, Device connector front mounting, series: M23 PRO Signal, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Pin, Solder connection, 4x Ø 3.2, flange dimensions: 26 mm x 26 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Product details

Technical data

Notes

Notes on operation	Please observe the derating curve.
Safety note
Safety note	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
		• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
		• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
		• The products are suitable for applications in plant, controller, and electrical device engineering.
		• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
		• Assembled products may not be manipulated or improperly opened.
		• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
		• When using the product in direct connection with third-party manufacturers, the user is responsible.
		• For operating voltages > 50 V AC, conductive connector housings must be grounded
		• Ensure that the protective or functional ground has been properly connected.
		• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
		• Only use tools recommended by Phoenix Contact
		• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
		• Operate the connector only when it is fully plugged in and interlocked.
		• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
		• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
		• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Product properties

Product type	Circular connectors (device side)

Connector

Insulating body

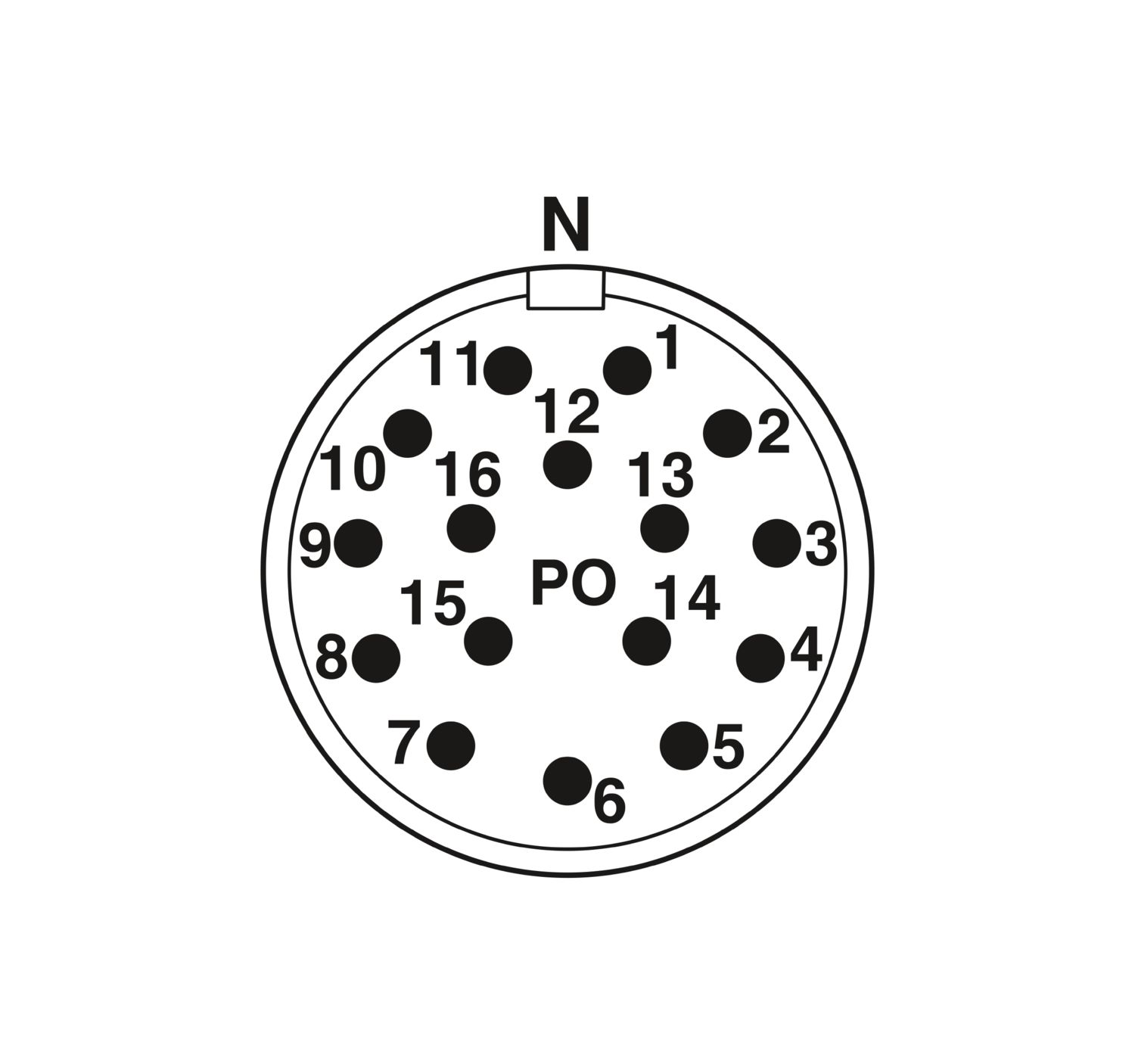

Coding	N
Insulation body material	PBT
Contact material	CuZn
Contact surface material	Ni/Au
Insertion/withdrawal cycles	100
Connection method	Solder connection
Contact switching type	Pin
Application	Signal
Number of positions	16
Direction of rotation	Standard
Connection profile	16
Contact diameter Signal contacts	1 mm
Litz wire cross-section Signal contacts min.	0.08 mm²
Litz wire cross-section Signal contacts max.	1 mm²
Nominal current per signal contact	8 A
Note	for max. connection cross section
Rated voltage Signal contact	125 V
Rated surge voltage	2 kV
Overvoltage category	III
Degree of pollution	3
Installation height	2000 m
Housing
Thread type	M23
Type of locking	for standard and ONECLICK fast locking system
Pg screw connection	none
Mounting type	Front mounting (4x Ø 3.2 mm)
Flange dimensions	26 mm x 26 mm
Housing material	GD-Zn
Degree of protection (plugged in)	IP66 / IP68 (2 m / 24 h)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP68
Ambient temperature (operation)	-40 °C ... 105 °C (see to derating)
Altitude	2000 m
Permanent temperature	125 °C (DIN EN 60512-9-2 / 1000 h)

Commercial data

Item number	1679710
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	*****
Product key	ABRABL
GTIN	4067923231672
Weight per piece (including packing)	29.525 g
Weight per piece (excluding packing)	29.525 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	150 V	3 A	- 20

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	150 V	4 A	- 20

Environmental product compliance

Compatible products

Accessories

Your advantages

Solutions with cross-manufacturer compatibility for standard and fast locking systems

Modern, consistent design for highly convenient operation

All housing can be fitted with pin or socket contacts

Safe use in the field, thanks to high degree of protection

ECLASS-11.0	27440109
ECLASS-12.0	27440109
ECLASS-13.0	27440109

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
