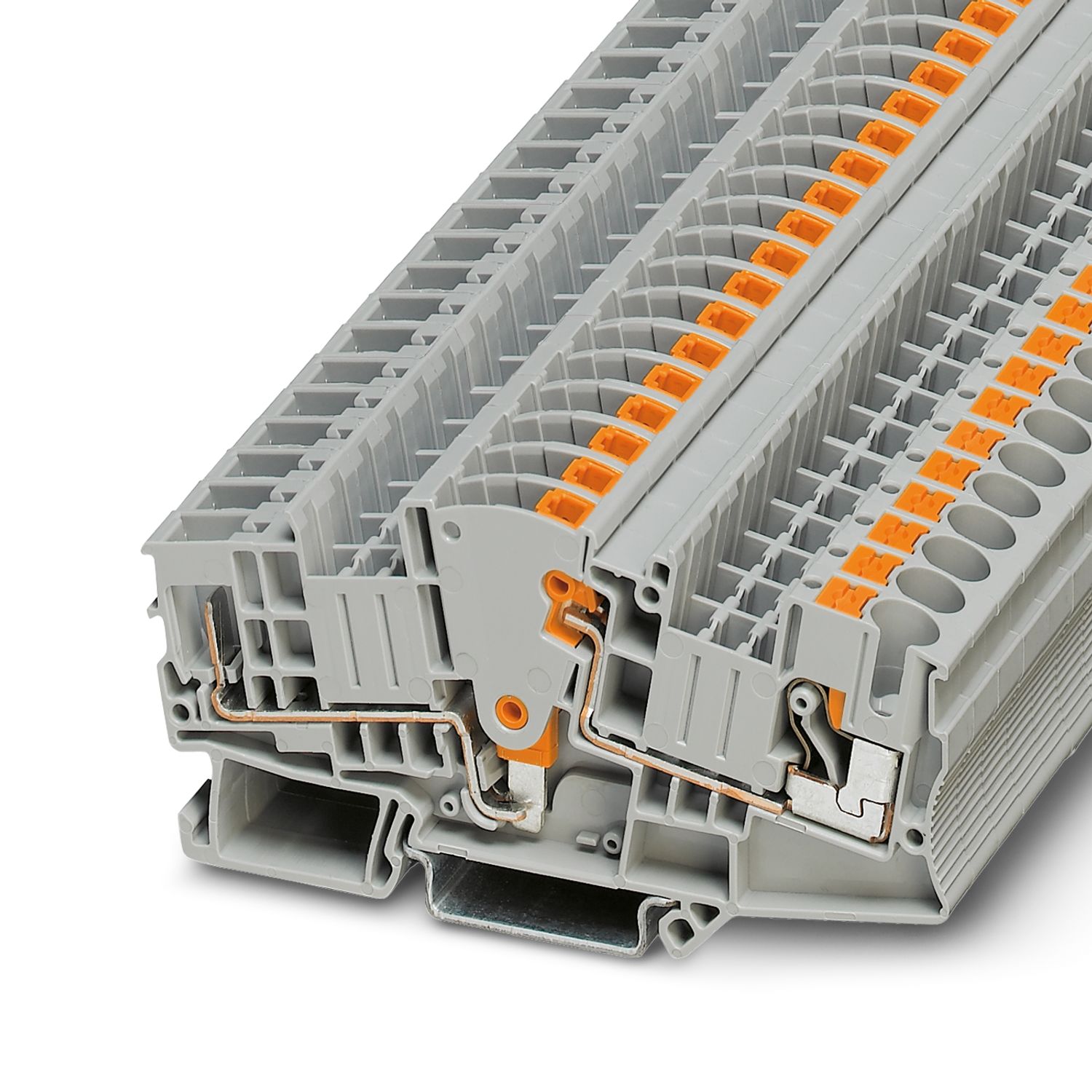

PTME 6/1P - Test disconnect terminal block - 3212306

Product details

Product description

Technical data

Product properties

Product type	Test disconnect terminal block
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	1.31 W

Connection data

Number of connections per level	2
Nominal cross section	6 mm²
1 level
Stripping length	12 mm
Internal cylindrical gage	A5
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.5 mm² ... 10 mm²
Cross section AWG	20 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 6 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)	0.5 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	30 A
Maximum load current	30 A (with 10 mm² conductor cross section)
Nominal voltage	500 V
Nominal cross section	6 mm²
1 level Connection cross sections directly pluggable
Conductor cross section rigid	1 mm² ... 10 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	1 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	1 mm² ... 6 mm²

Dimensions

Width	8.2 mm
End cover width	2.2 mm
Height	99.4 mm
Depth on NS 35/7,5	49.6 mm
Depth on NS 35/15	57.1 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Electrical tests

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Short-time withstand current 4 mm²	0.5 kA
	0.5 kA
	1.25 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	3.31 kV
Result	Test passed

Mechanical properties

Mechanical data
Open side panel	Yes

Mechanical tests

Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	5 N
Result	Test passed

Environmental and real-life conditions

Service life
Insertion/withdrawal cycles	100
Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	1.857 (m/s²)²/Hz
Acceleration	0.8g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and regulations

Connection in acc. with standard	IEC 61984

Mounting

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3212306
Packing unit	50 pc
Minimum order quantity	1 pc
Sales key	31BB22
Product key	BE2233
GTIN	4046356623216
Weight per piece (including packing)	23.78 g
Weight per piece (excluding packing)	23.78 g
Customs tariff number	85369010
Country of origin	PL

Classifications

Approvals

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PTME 6/1P - Test disconnect terminal block

3212306

Product details

ECLASS

ETIM

UNSPSC

EAC

cULus Recognized

cULus Recognized

cULus Recognized

EAC

Compatible products

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PTME 6/1P - Test disconnect terminal block 3212306

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-8 - Plug-in bridge 3030284

FBS 3-8 - Plug-in bridge 3030297

FBS 4-8 - Plug-in bridge 3030307

FBS 5-8 - Plug-in bridge 3030310

FBS 10-8 - Plug-in bridge 3030323

FBS 6-8 - Plug-in bridge 3032470

FBS 1/3-8 - Plug-in bridge 3032363

FBS 1/4-8 - Plug-in bridge 3032376

FBS 1/3/5-8 - Plug-in bridge 3032389

FBS 1/4/7/10-8 - Plug-in bridge 3032402

SB-ME 2-8 - Bridge bar 3034468

SB-ME 3-8 - Bridge bar 3032800

SB-ME 4-8 - Bridge bar 3034484

SB-MER 2-8 - Bridge bar 3000587

SB-MER 3-8 - Bridge bar 3000588

SB-MER 4-8 - Bridge bar 3000589

FBS 1/5-8 - Plug-in bridge 3032381

FBSRH 2-8 - Short-circuit connector 3033802

FBSRH 3-8 - Short-circuit connector 3033803

FBSRH 4-8 - Short-circuit connector 3033804

FBSR 2-8 - Plug-in bridge 3033808

FBSR 3-8 - Plug-in bridge 3001597

FBSR 4-8 - Plug-in bridge 3000585

FBSR 5-8 - Plug-in bridge 3033809

FBSR 10-8 - Plug-in bridge 3001599

FBSR 16-8 - Plug-in bridge 3033816

FBSR 1/6/11/16-8 - Plug-in bridge 3033820

FBSR 1/7/13/16-8 - Plug-in bridge 3033821

FBSR 1/6/11/14-8 - Plug-in bridge 3033822

FBS 2-8 CT - Plug-in bridge 3033830

FBS 3-8 CT - Plug-in bridge 3033831

FBS 4-8 CT - Plug-in bridge 3033832

FBS 10-8 CT - Plug-in bridge 3033833

FBS 2-8 BU - Plug-in bridge 3032567

FBS 3-8 BU - Plug-in bridge 3032570

FBS 4-8 BU - Plug-in bridge 3032583

FBS 5-8 BU - Plug-in bridge 3032596

FBS 6-8 BU - Plug-in bridge 3032677

FBS 10-8 BU - Plug-in bridge 3032606

FBS 2-8 GY - Plug-in bridge 3032621

FBS 3-8 GY - Plug-in bridge 3032622

FBS 4-8 GY - Plug-in bridge 3032635

FBS 5-8 GY - Plug-in bridge 3032648

FBS 6-8 GY - Plug-in bridge 3032664

FBS 10-8 GY - Plug-in bridge 3032651

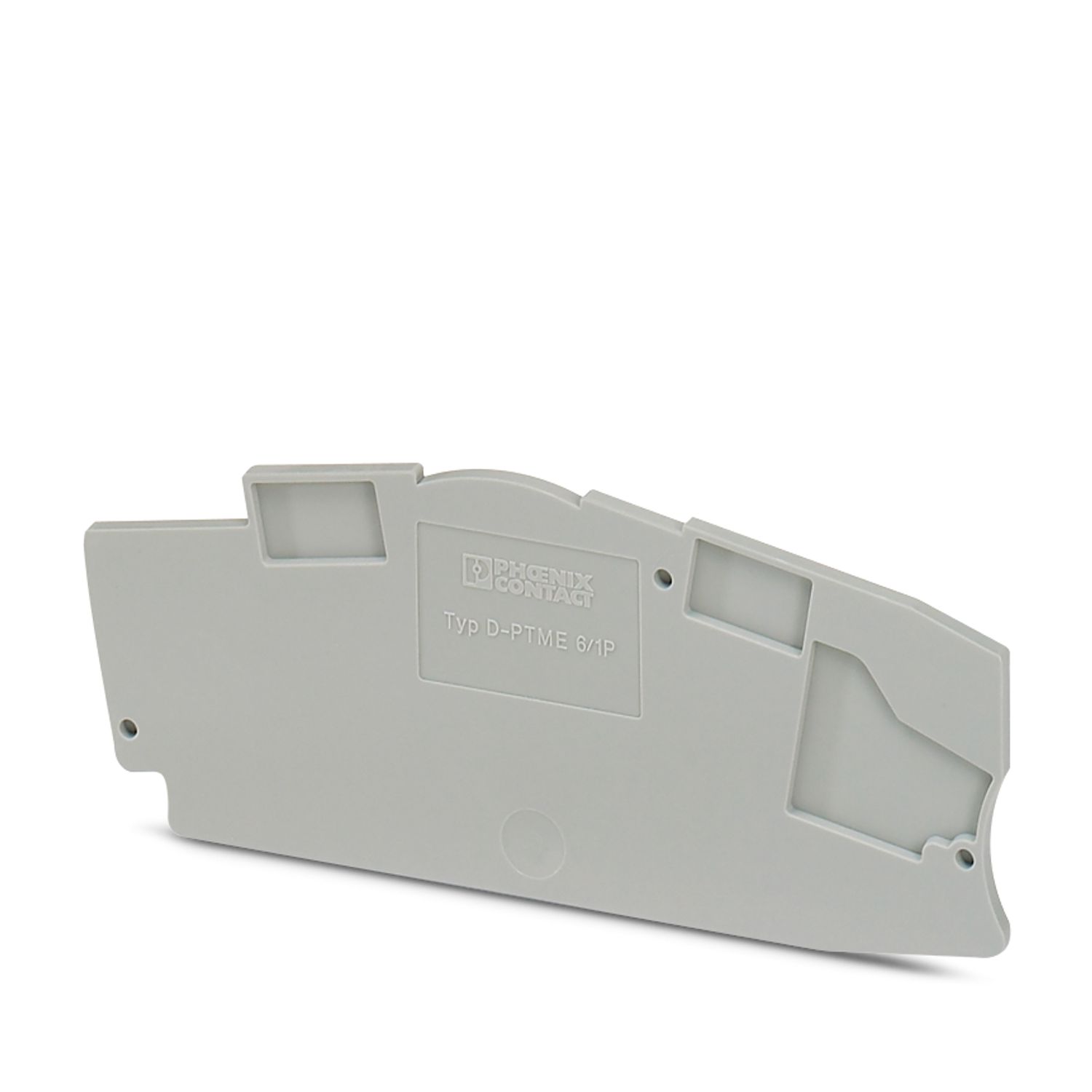

D-PTME 6/1P - End cover 3212307
