WP-GT PP HF M25 - Protective hose screw connection
WP-GT PP HF M25
-
Protective hose screw connection
3241013
Cable gland made from PP with metric thread, rotatable, IP54 protection
Product details
Expand all
Collapse all
Technical data
Product properties
Product type
Protective hose screw connection
Application
Cable gland
Type of the screw connection
Conduit adapter
Type
Outer thread
Cable outlet
straight
Thread type
metric
Dimensions
Width
30 mm
Height
48 mm
Wrench size
27 mm
Wrench size for mounting
27 mm
Material specifications
Material
PP
Flammability rating according to UL 94
HB
Material for screw connection
PP
Components
halogen-free
Cable/line
Halogen-free
yes
Mechanical properties
Mechanical data
Type of the screw connection
Conduit adapter
Environmental and real-life conditions
Ambient conditions
Degree of protection
IP54
Ambient temperature (operation)
-10 °C ... 110 °C
Commercial data
Item number
3241013
Packing unit
10 pc
Minimum order quantity
10 pc
Sales key
31BAF
Product key
AF7DSA
Catalog page
Page 595 (C-3-2019)
GTIN
4046356711456
Weight per piece (including packing)
10.4 g
Weight per piece (excluding packing)
9.81 g
Customs tariff number
39174000
Country of origin
DE
Classifications
ECLASS
ECLASS-13.0
27430311
ETIM
ETIM 9.0
EC001178
UNSPSC
UNSPSC 21.0
39121300
Approvals
VDE approval of drawings
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories

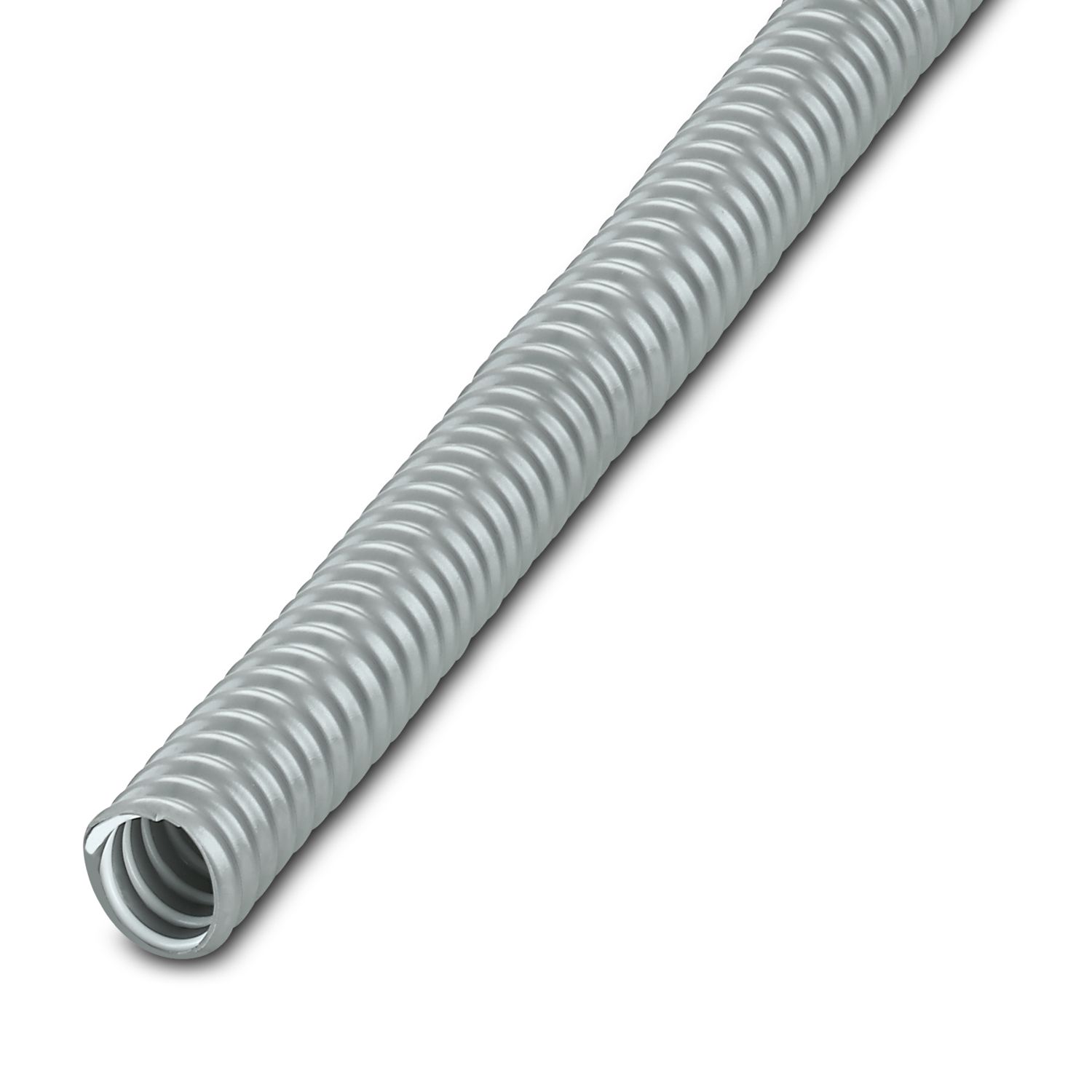

WP-SPIRAL PVC C 21
-
Protective hose
3240852

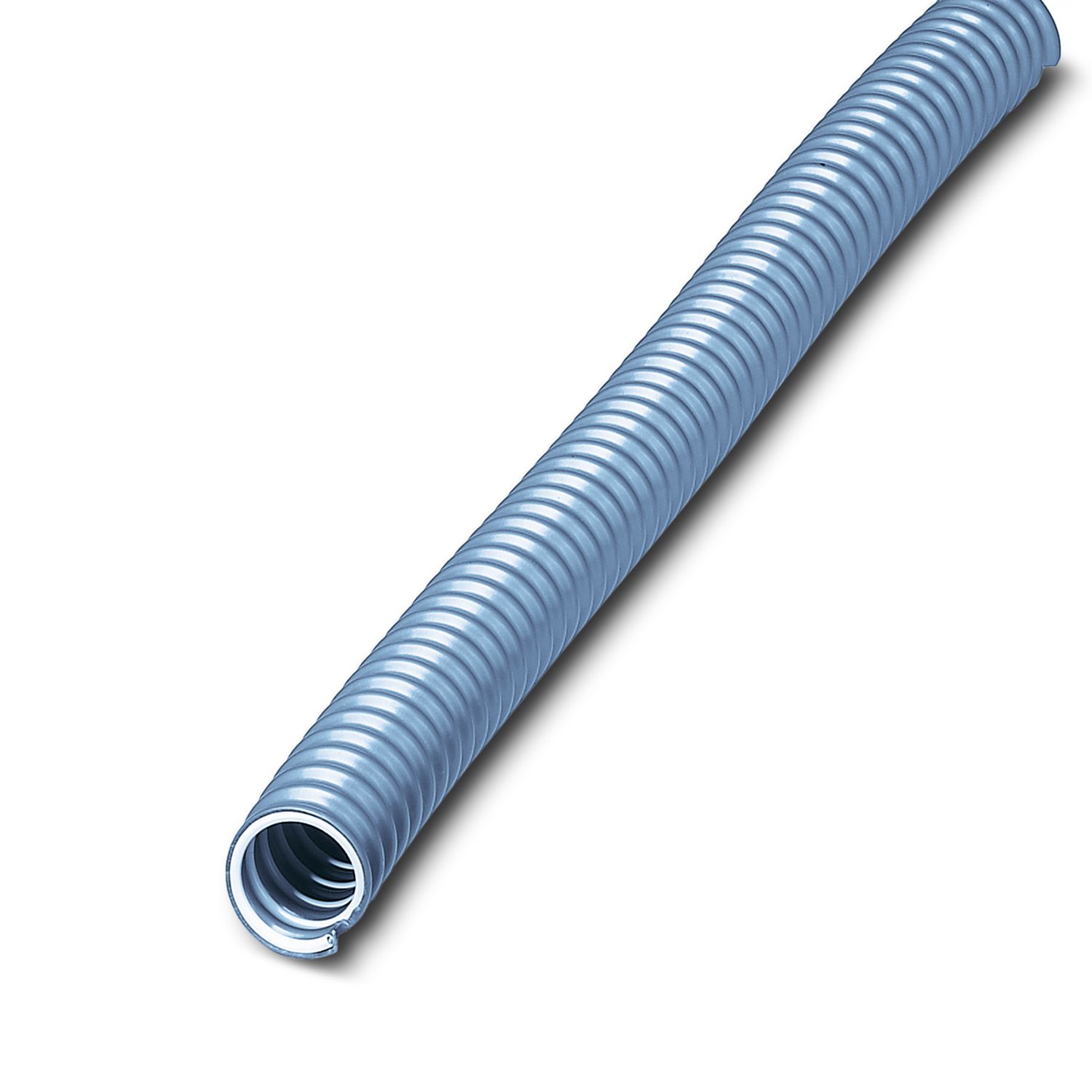

WP-SPIRAL PU C HF 21
-
Protective hose
3240859
WP-BASE A M25
-
Protective hose fixing bracket
3241085
WP-OR M25
-
Sealing ring
3241191
A-INL-M25-P-GY
-
Counter nut
1411208
