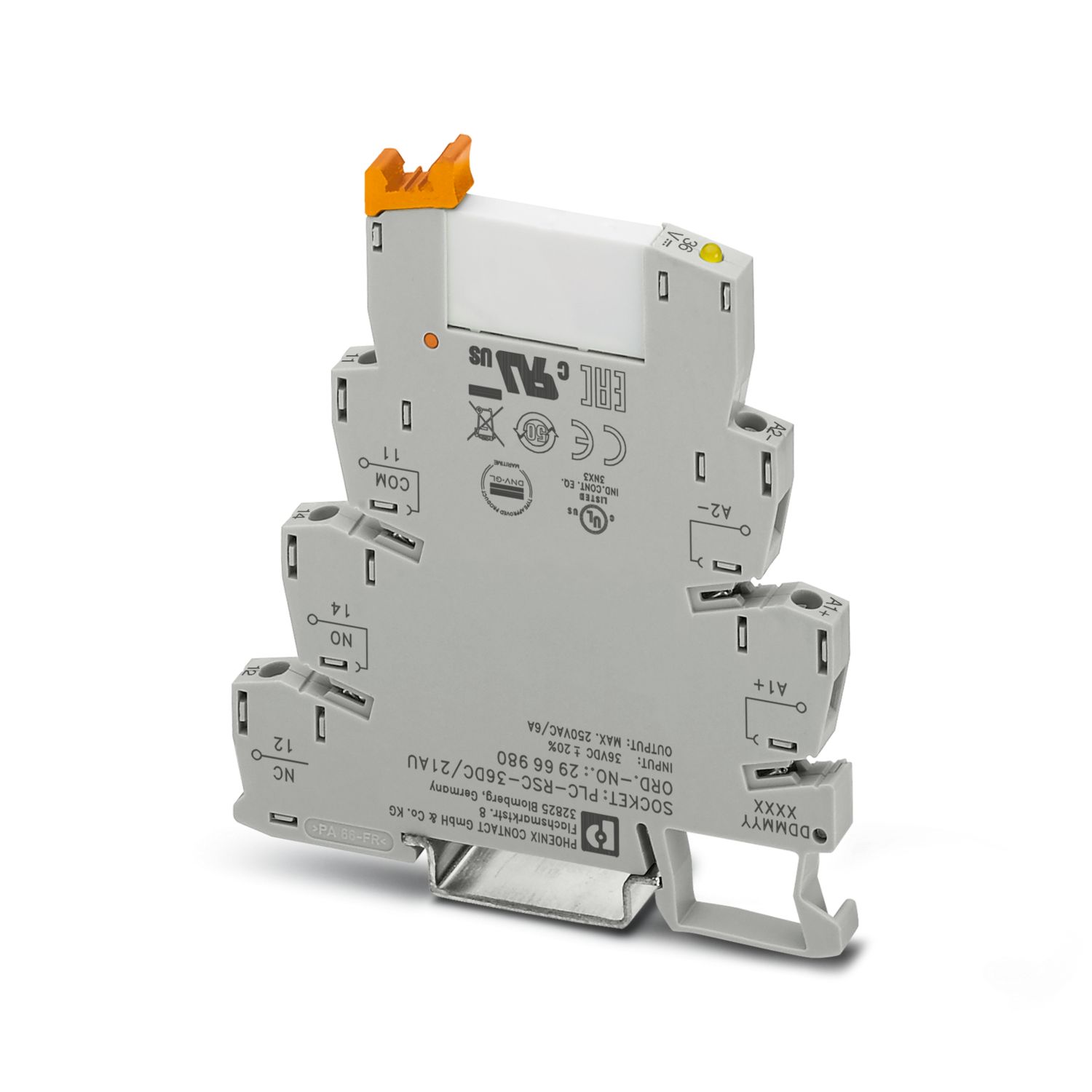

PLC-INTERFACE, comprising PLC-BSC.../21 basic terminal block with screw connection and plug-in miniature relay with multi-layer contact, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage 36 V DC
Product details
Product type
Relay Module
Product family
PLC-INTERFACE
Application
Universal
Data management status
Date of last data management
03.07.2025
Coil side
Nominal input voltage UN
36 V DC
Drive and function
monostable
Switching
Contact switching type
1 changeover contact
Type of switch contact
Single contact
Contact connection type
Signal contact
Contact material
AgSnO, hard gold-plated
Maximum switching voltage
30 V AC
36 V DC
Minimum switching voltage
100 mV (at 10 mA)
Limiting continuous current
50 mA
Min. switching current
1 mA (at 24 V)
Interrupting rating (ohmic load) max.
1.2 W (at 24 V DC)
Switching: when the gold layer is destroyed
Note
the following values are applicable if a gold layer is destroyed
Maximum switching voltage
250 V AC/DC
Minimum switching voltage
5 V (at 100 mA)
Limiting continuous current
6 A
Min. switching current
10 mA (at 12 V)
Interrupting rating (ohmic load) max.
140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross-section rigid
0.14 mm² ... 2.5 mm²
Conductor cross-section flexible
0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross-section AWG
26 ... 14
Tightening torque
0.6 Nm ... 0.8 Nm
Width
6.2 mm
Height
80 mm
Depth
94 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94 (Housing)
V0 (Housing)
Ambient conditions
Degree of protection (Relay base)
IP20 (Relay base)
Ambient temperature (operation)
-25 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
CE
Certificate
CE-compliant
UKCA
Certificate
UKCA-compliant
Shipbuilding approval
Certificate
TAE0000196
Shipbuilding data
Temperature
D
Humidity
A
Vibration
B/C
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
