HC-DS-PG21-T
-
Pressure screw
1772706
Pressure screws, with flared cable guard, clamping area 13 mm ... 20 mm, for housing with Pg21 support
Product details
| Product type | Half screw connection |

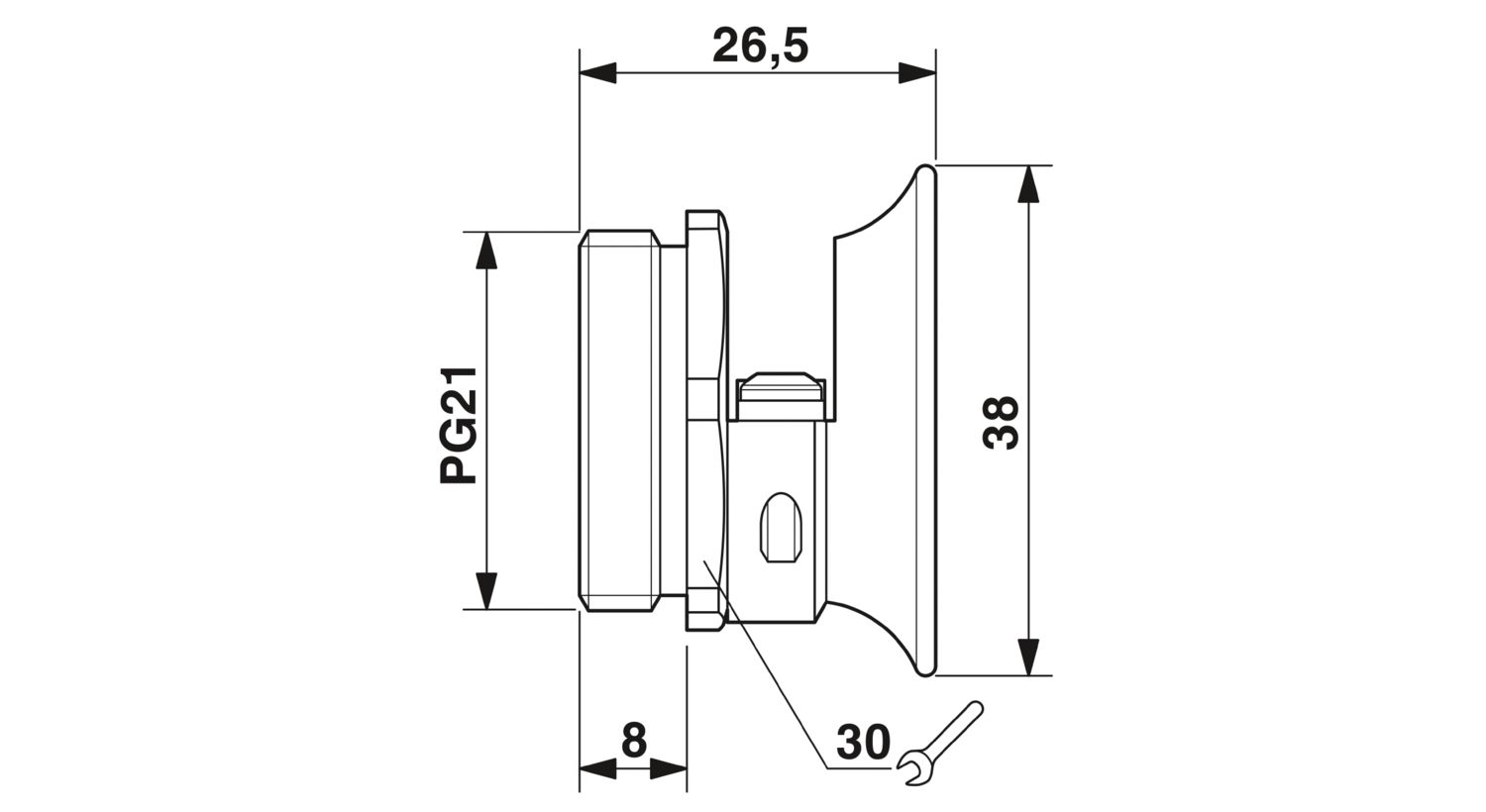

| Dimensional drawing |
|
| Clamping range of the strain relief clip | 13.00 mm ... 20.00 mm |
| External dimensions | |
| External diameter min. | 15 mm |
| External diameter max. | 21 mm |
| Material Pressure screw | Brass, nickel-plated |
