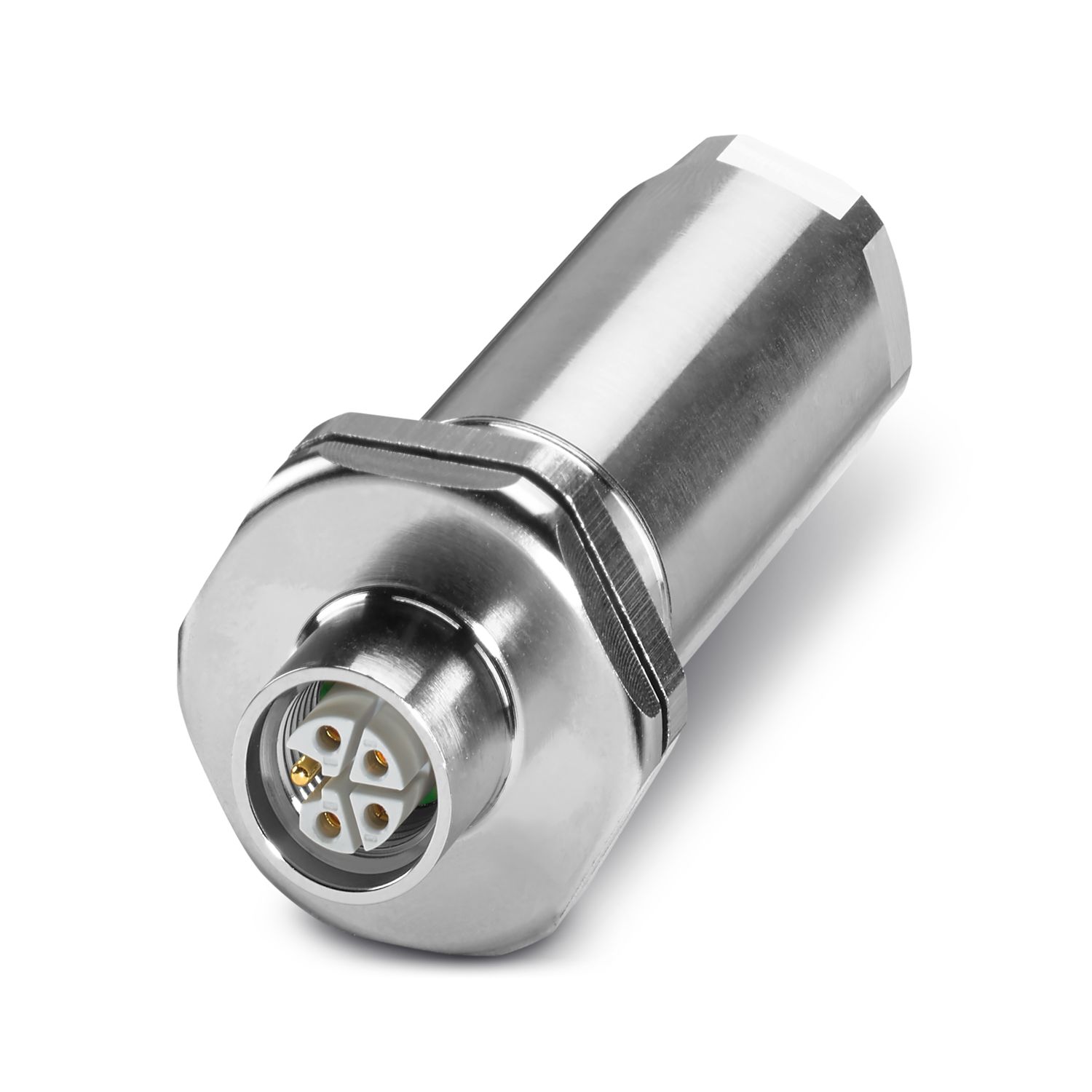

SACC-E-M12FSL-4FEPL-M25-CL
-
Panel feed-through
1343764
Panel feed-through, 5-position, unshielded, Socket straight M12, coding: L, Front mounting, M25 x 1,5, Push-lock spring connection, knurl material: Brass, nickel-plated, Flat nut included
Product details

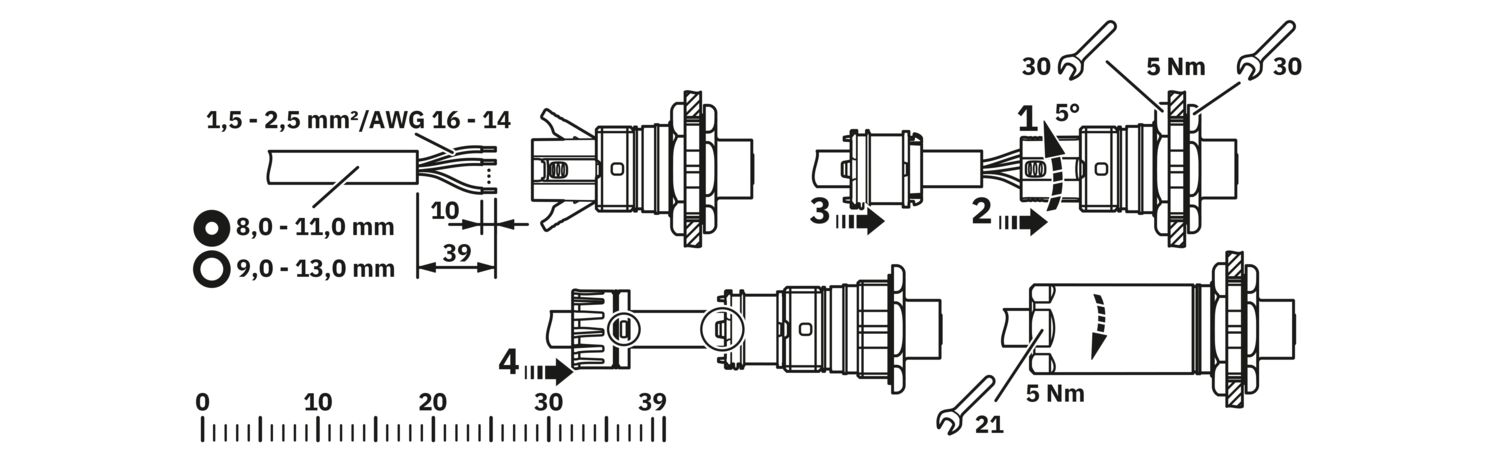

| Assembly note | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Tightening torque | 5 Nm (Installation-side) |
| 5 Nm |
| Product type | Circular connectors (device side) |
| Application | Energy supply |
| Number of positions | 5 |
| No. of cable outlets | 1 |
| Coding | L |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

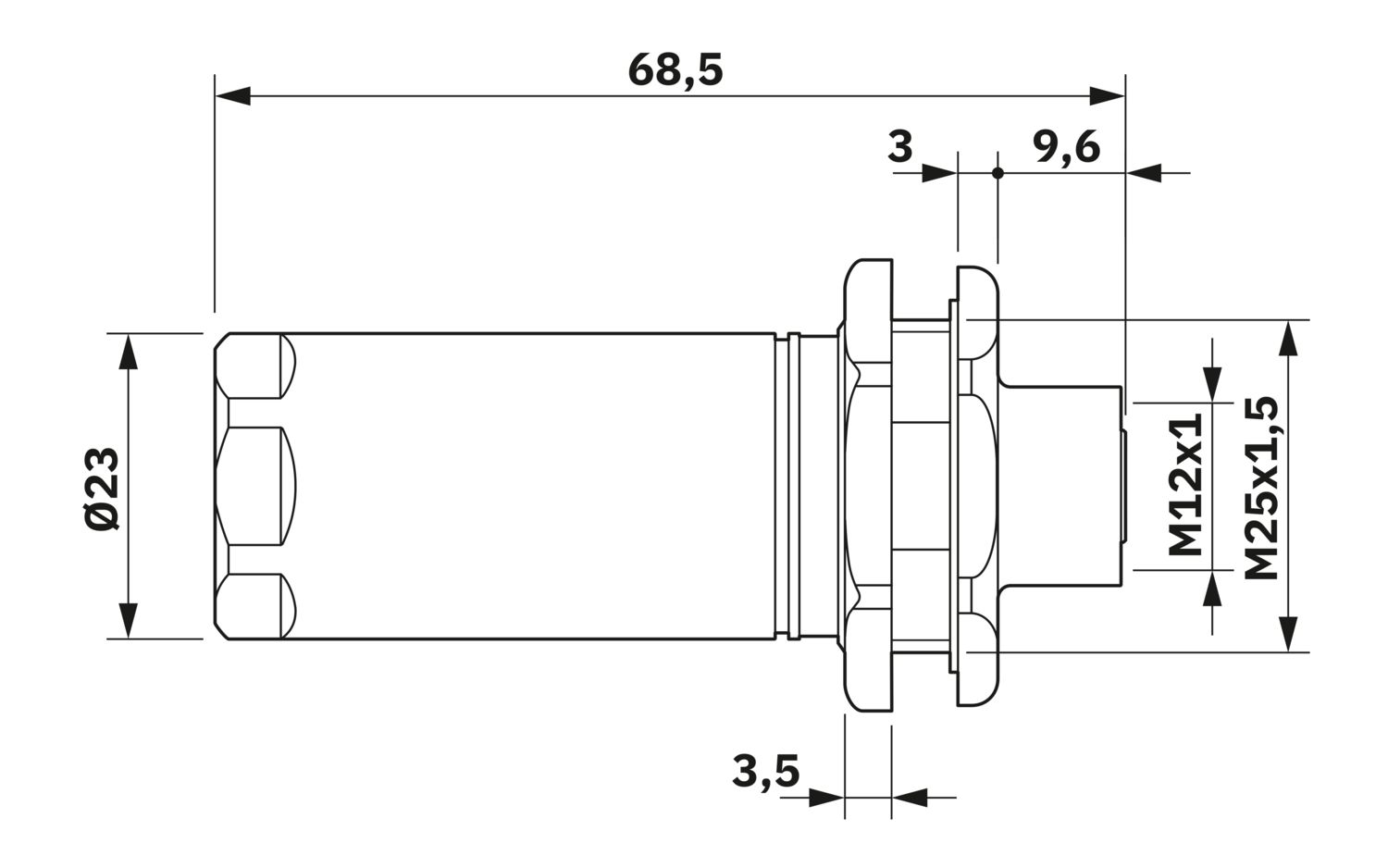

| Dimensional drawing |
|
| Length | 69 mm |

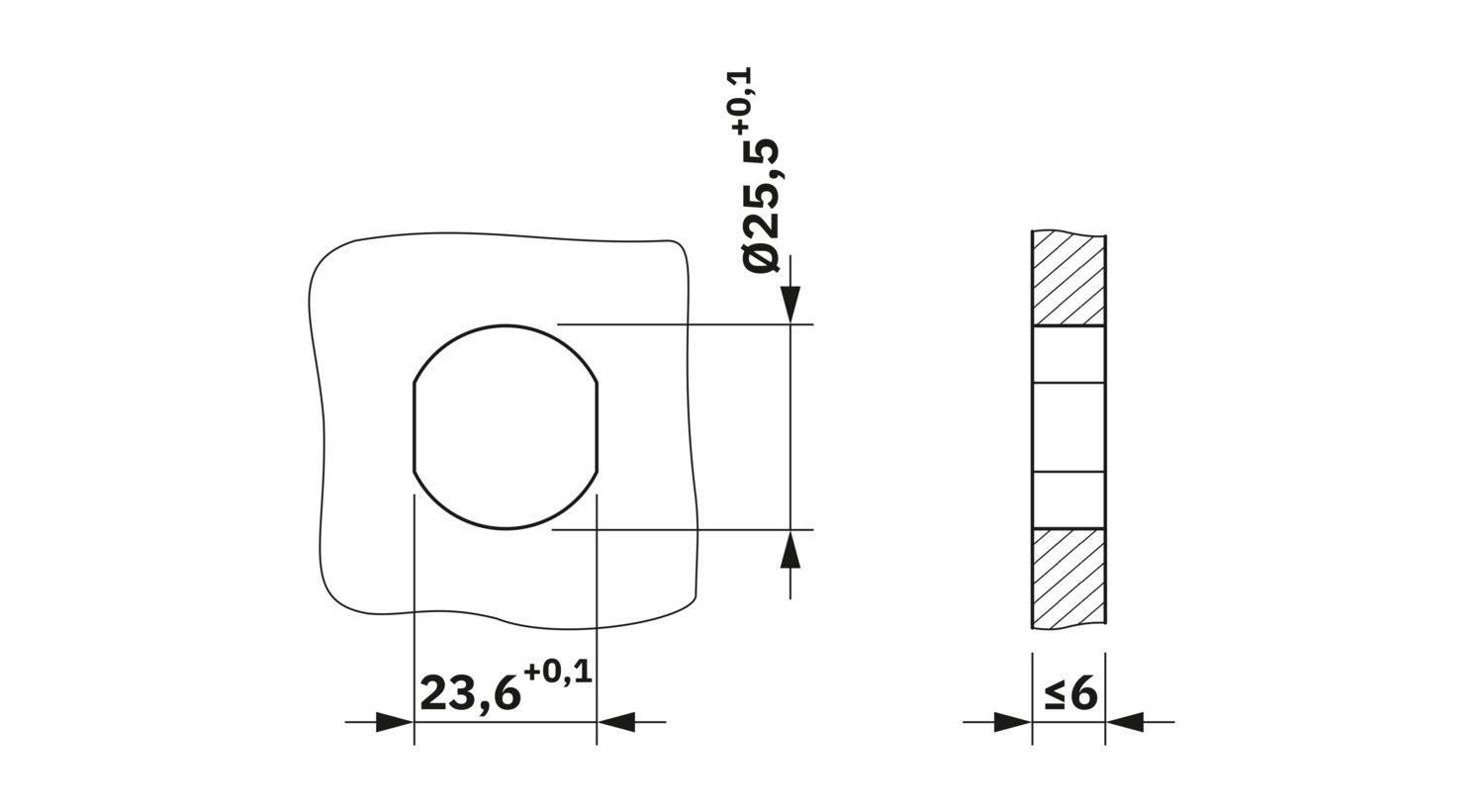

| Hole diameter | 25.5 mm +0.1 mm |
| Housing | |
| Diameter housing | 23 mm |
| Material | PA 6 (Actuation lever) |
| Flammability rating according to UL 94 | V0 |
| Material of grip body | Brass, nickel-plated |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material for screw connection | Brass, nickel-plated |
| Rated surge voltage | 1.5 kV |
| Nominal voltage UN | 63 V DC |
| Nominal current IN | 16 A (when using 2.5 mm² conductors) |
| 16 A (at 40 °C) |
| Conductor connection | |
| Connection method | Push-lock spring connection |
| Contact connection type | Socket |
| Connection cross section | 1.5 mm² ... 2.5 mm² |
| 0.75 mm² ... 2.5 mm² (with ferrule) | |
| 1.5 mm² ... 1.5 mm² (solid) | |
| Connection cross section AWG | 16 ... 14 (without ferrule) |
| 18 ... 14 (with ferrule) | |
| Stripping length of the individual wire | 10 mm |
| Tightening torque | 5 Nm (Installation-side) |
| 5 Nm | |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection 1 | |
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | L |
| Stripping length of the individual wire | 10 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Your advantages
Time-saving Push-Lock connection: Tool-free connection and disconnection of conductors by opening the contact levers
Intuitive connection: Easy assignment of individual litz wires with color-coded and numerical identification of the contact levers
Integrated Push-in Technology: Wire rigid and pretreated conductors easily by means of simple, direct insertion
Shock- and vibration-resistant connection: Proven spring-cage technology guarantees secure and reliable contacting
