HC-D 15-TFL-66/O1PG16S
-
Housing
1672709

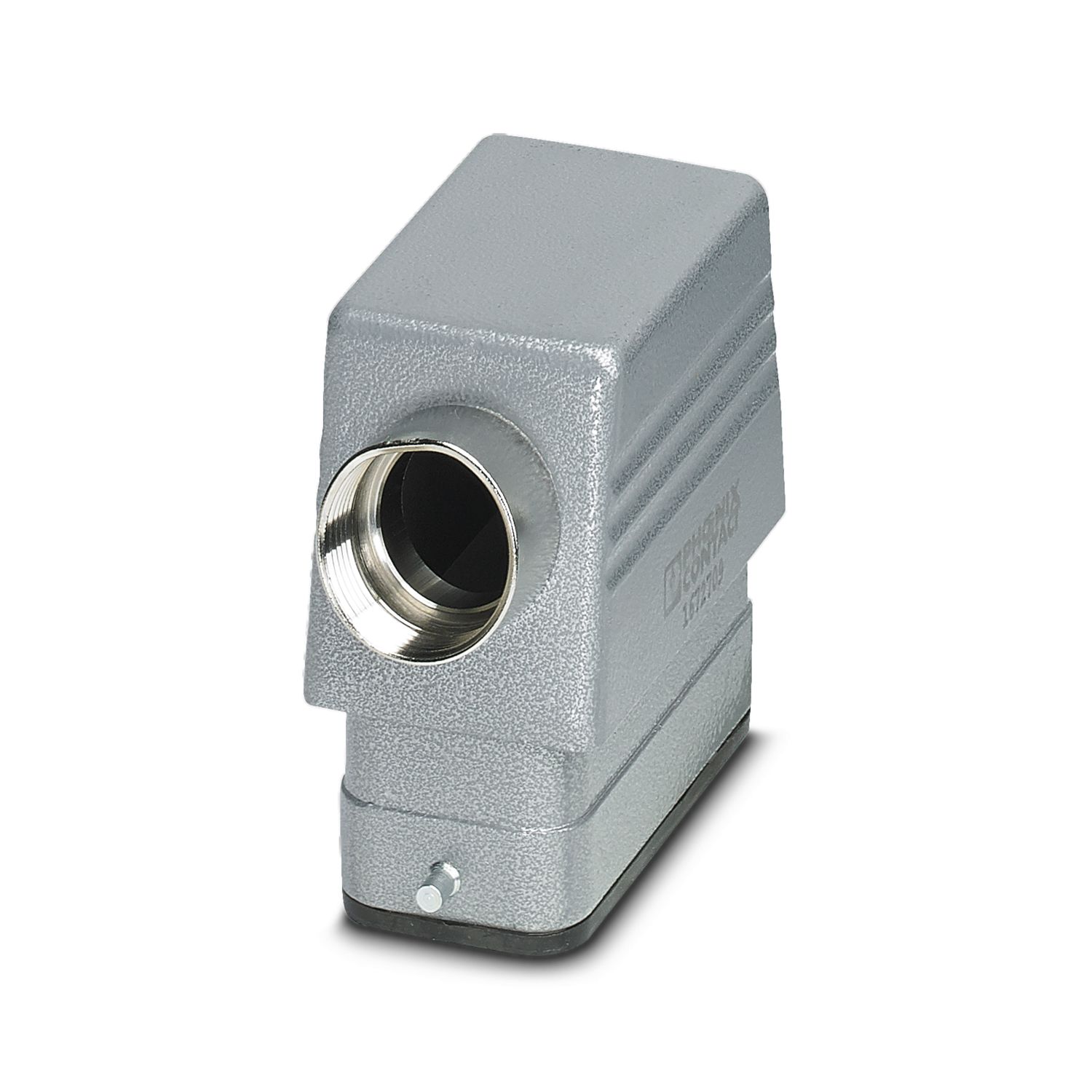

HEAVYCON sleeve housing, D15, for single locking latch, height: 66 mm, without screw connection, 1 x Pg16, lateral cable outlet
Product details
| General | For contact inserts HC-D15, A10 |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | D15 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg16 |
| Cable outlet | lateral |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 36 mm |
| Height | 66 mm |
| Length | 63 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Mechanical data | |
| Type of the screw connection | 1x Pg16 |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
