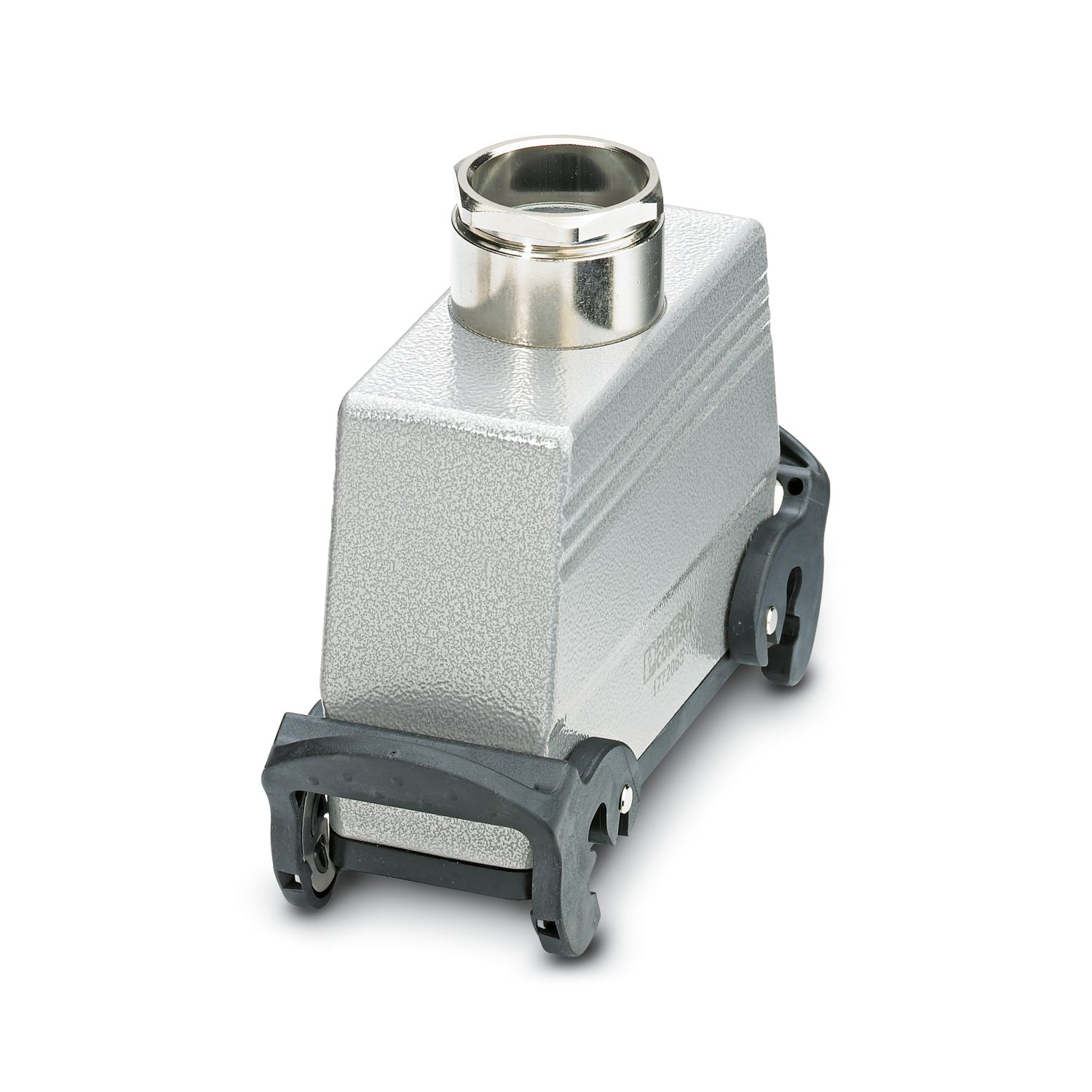

HC-B 24-KMQ-79/M1PG29
-
Housing
1772065
Coupling housing, with double locking latch, height 79 mm, with screw connection, 1x Pg29
Product details
| General | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
| Product type | Housing with locking latch |
| Housing type | Coupling housings |
| Application | Standard |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg29 |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |

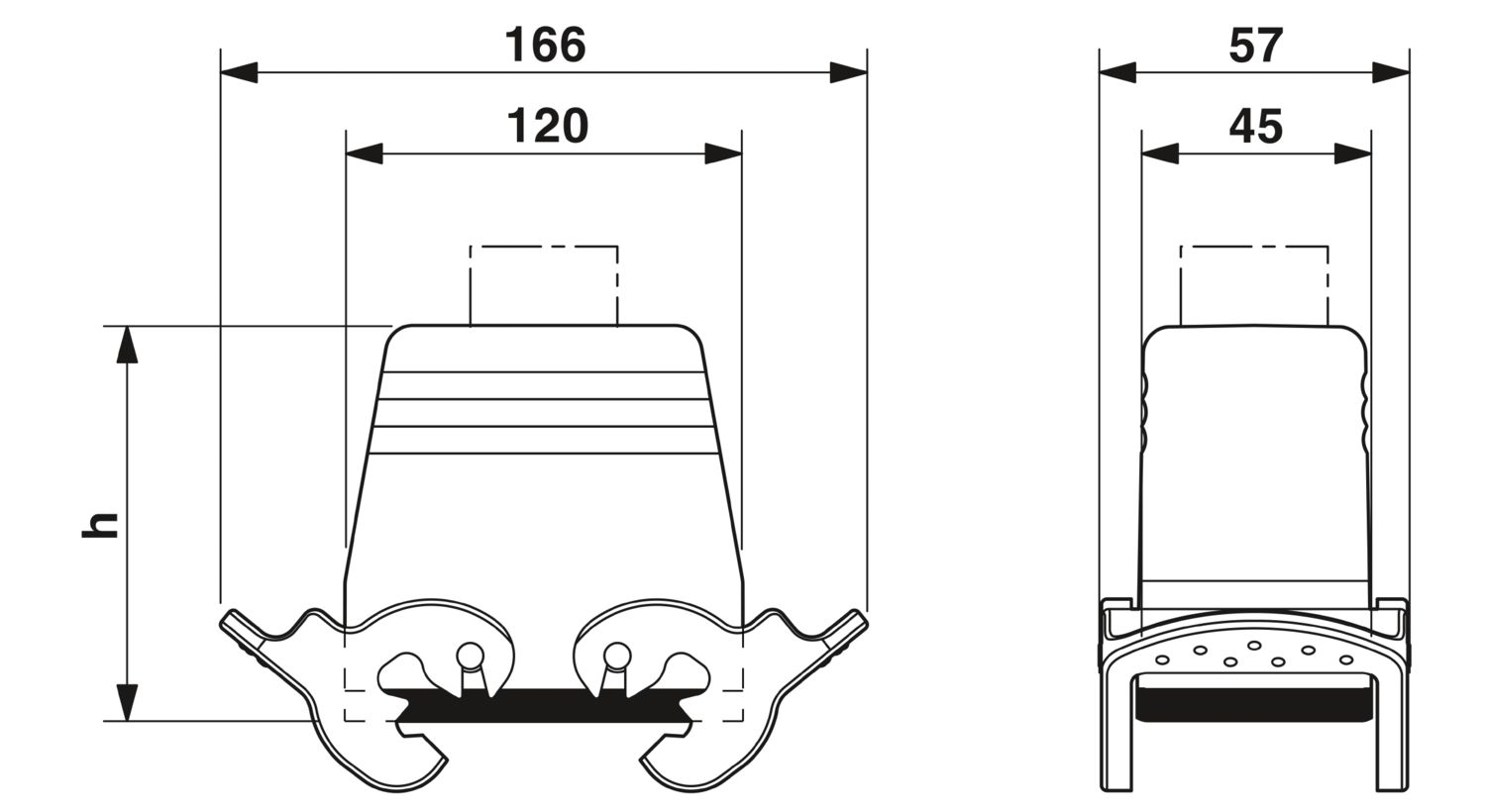

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 79 mm |
| Length | 120 mm |
| Wrench size, union nut | 37 mm |
| Material Screw connection | Brass, nickel-plated |
| Seal material Cable seal | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | PA |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Type of the screw connection | 1x Pg29 |
| Locking type | Latch |
| External cable diameter Cable 1 | 18 mm ... 27 mm |
| External cable diameter | 18 mm ... 27 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
