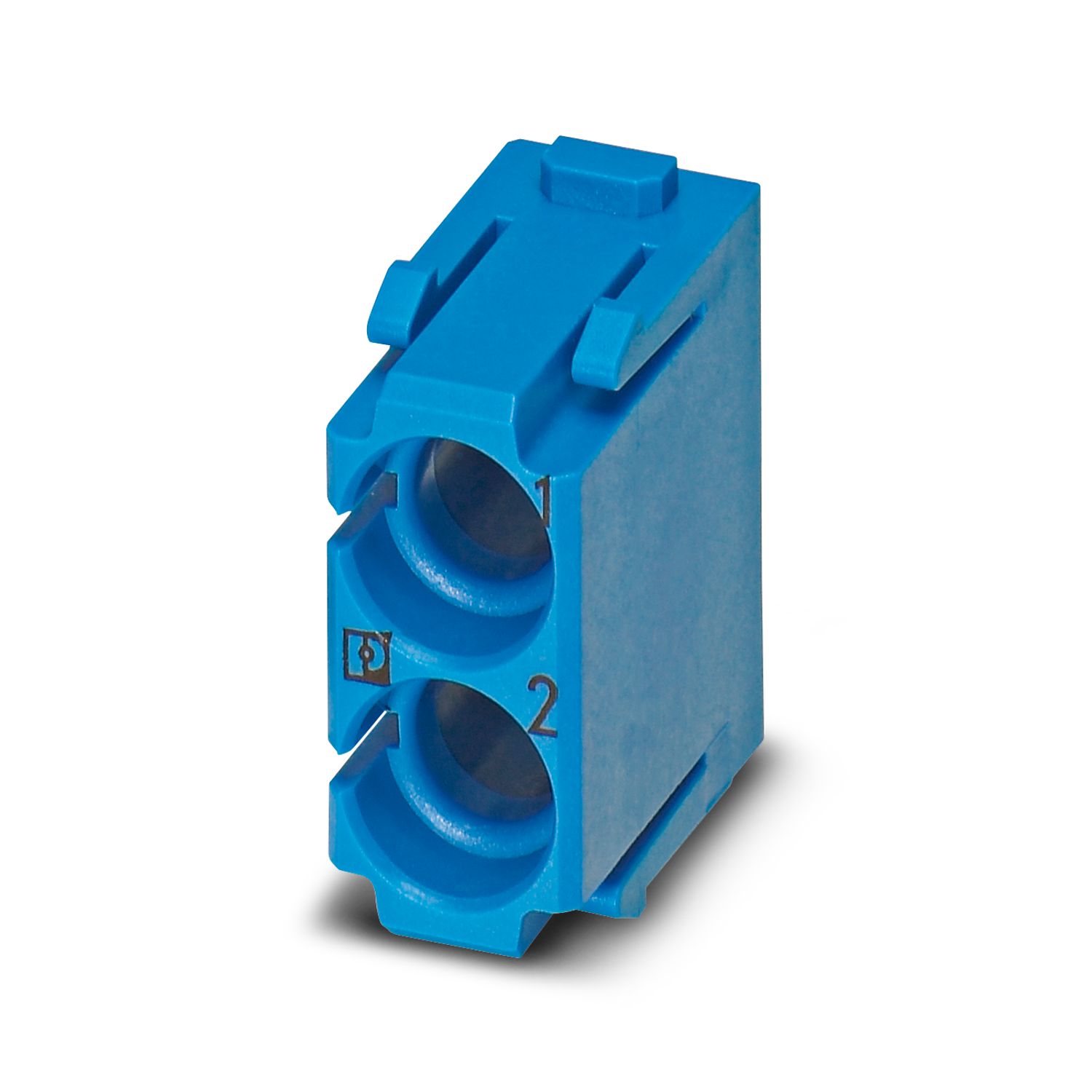

HC-M-PN2-MOD-ST-BU
-
Contact insert module
1674998
HEAVYCON pneumatic module, male/female, 2 connections
Product details
| General | Hinged retaining frame HC-M-MHR...is required for HEAVYCON-ADVANCE housing of types B6 to B24 and HEAVYCON housing of types B6 to B48, pneumatic HC-M-PN... male and female connectors (Pneumatic male and female connectors not included in the scope of supply) |
| Product type | Pneumatic insert, modular |
| Application | Pneumatics |
| Number of positions | 2 |
| Connection profile | 2 |
| Contact numbering | 1 - 2 |
| Number of module slots | 1 |
| Dimensional drawing |
|
| Width | 34.2 mm |
| Height | 27.2 mm |
| Length | 14.6 mm |
| Mechanical characteristics | |
| Internal diameter of pressure hose connection | 6 mm |
| Flammability rating according to UL 94 | V0 |
| Contact carrier material | PC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Assembly note | HC-CST (1676857) coding pins and HC-CBU (1676860) coding sockets are mandatory. Observe the minimum bending radii when connecting the hoses. |
| - Lock together the pneumatic contact with the module. To do so, insert the contact into the module from the front. - Place the modules fitted with the contacts in the hinged retaining frame. The hinged retaining frame is fixed after insertion with HC-M-MHR-FIX (opening prevented). - The pneumatic hoses are pushed onto the pneumatic contact from the rear module side. The medium-sized module slots and sleeves/coupling housing with straight cable outlet direction are recommended |
