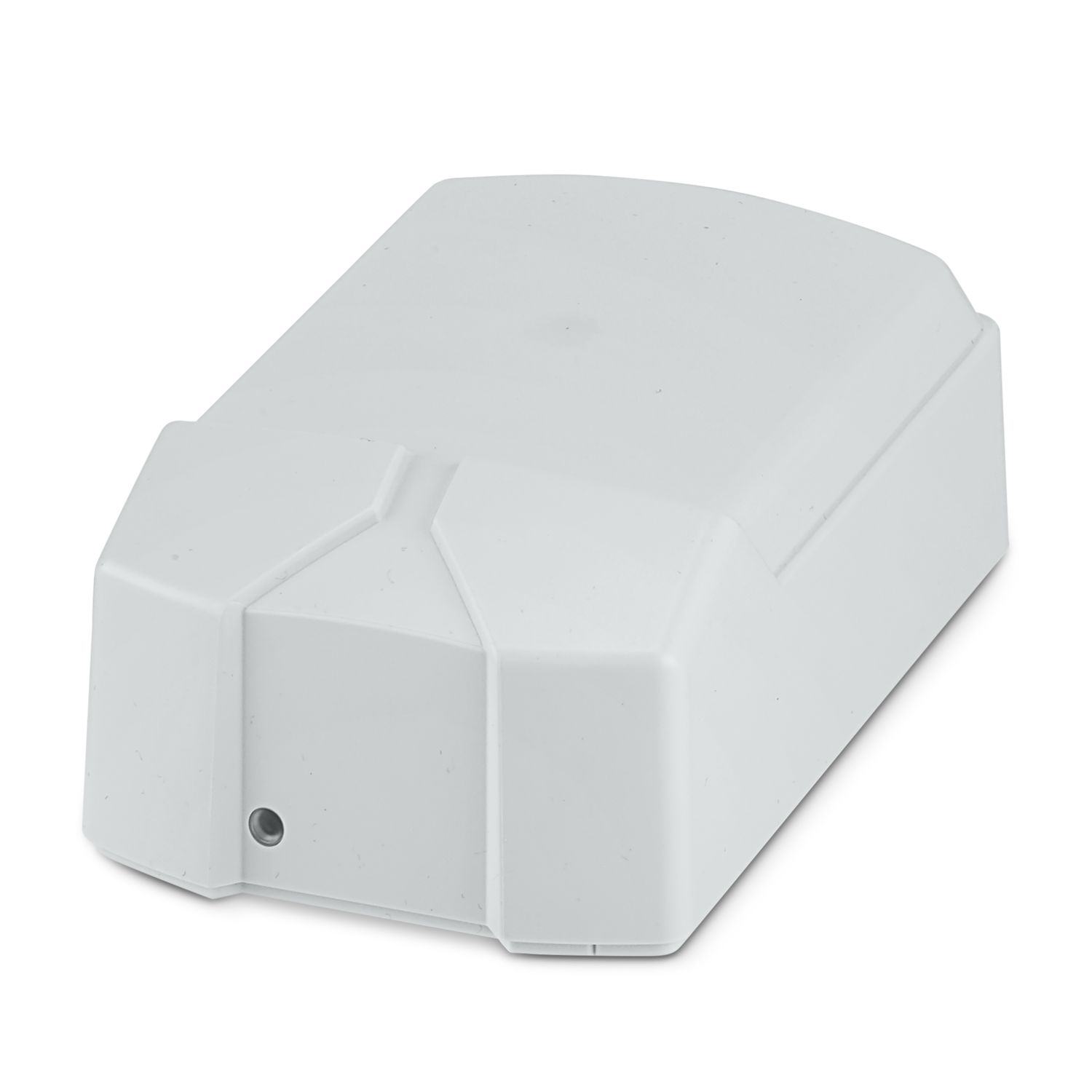

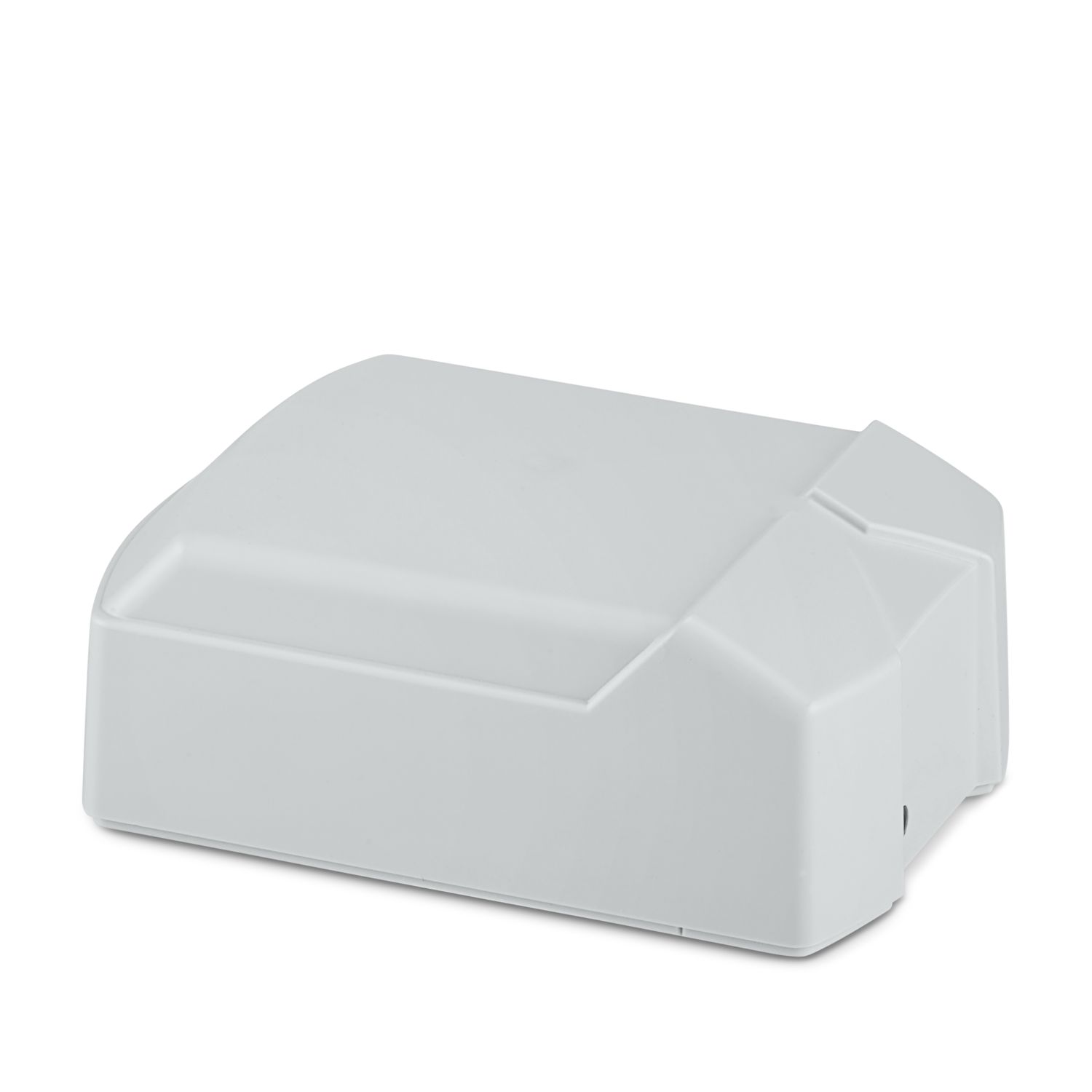

CELLULINK 4401-4G GL M40 - Router - 1637627

Note on application
Note on application	Only for industrial use

Product type	Cellular router
Application	Ethernet
MTTF	4865 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
	2193 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
	887 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)

Electrical isolation	VCC // FE // Ethernet
Mains type	Cellular communication
Test voltage data interface/power supply	1.5 kV_rms (50 Hz, 1 min.)
Supply

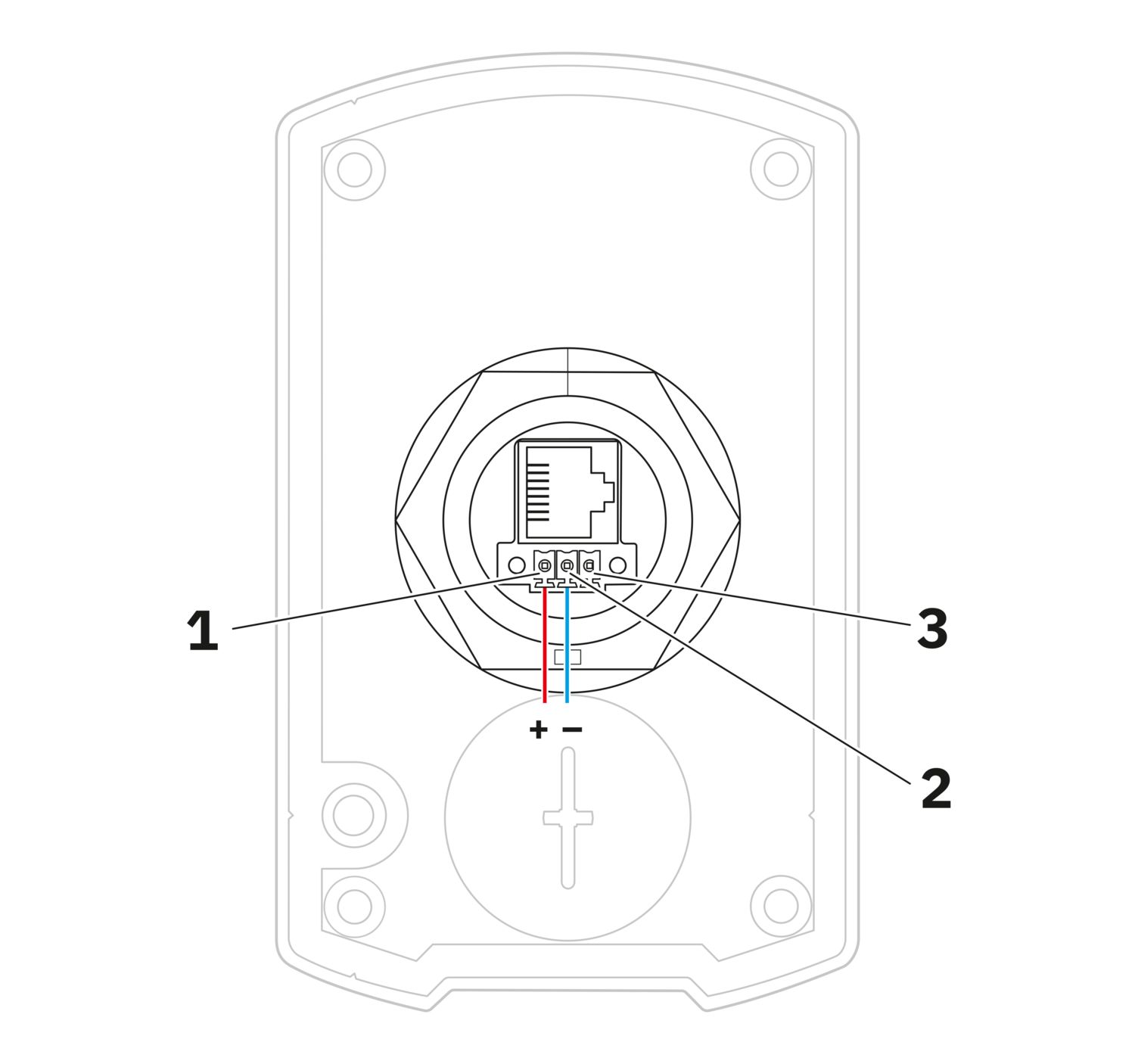

Supply voltage range	10 V DC ... 52 V DC (via COMBICON)

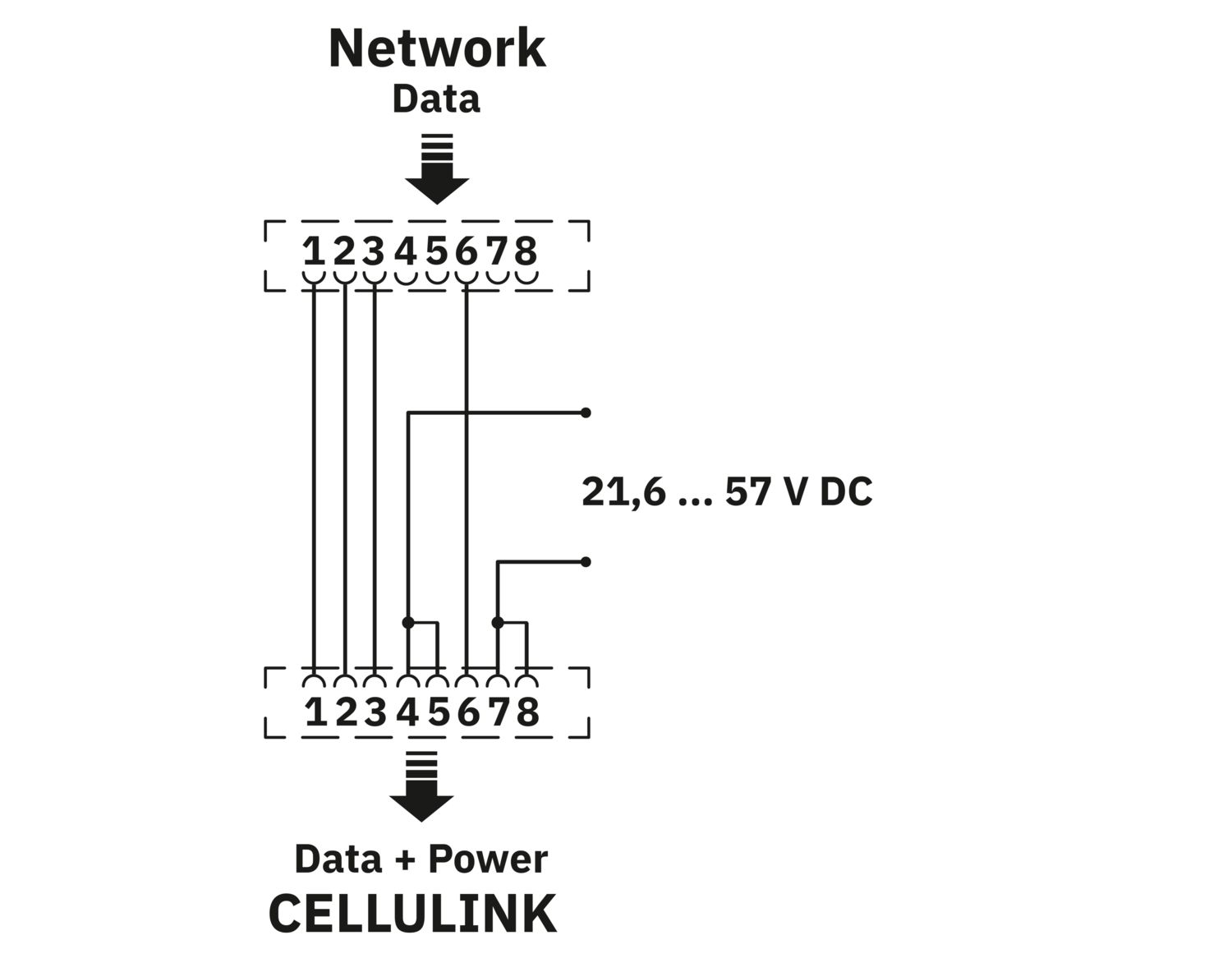

	21.6 V DC ... 57 V DC (Passive PoE via the wire pair of the Ethernet cable)
Nominal supply voltage	PoE, 15 W in accordance with standard 802.3af
Typical current consumption	50 mA (Standby, 24 V DC)
Max. current consumption	800 mA (10 V)
Power consumption	< 8 W
Function
Management	Web-based management
	REST API

Supply
Connection method	Push-in spring connection
Conductor cross section flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.14 mm² ... 0.75 mm²
Single conductor/terminal point, rigid	0.2 mm² ... 1.5 mm²
Single-wire/terminal point, flexible	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]	24 ... 16
Stripping length	10.00 mm

Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
Serial transmission speed	10/100 Mbps, auto negotiation
Connection method	RJ45 jack, shielded
Transmission length	100 m (shielded twisted pair)
Protocols supported	TCP/IP, UDP/IP, HTTPS
	IPv4, IPv6 ready (the hardware is IPv6-capable. IPv6 will be supported in a later firmware version.)
Wireless
Interface description	4G (LTE) / 3G (HSPA+) / 2G (GSM)
Operating mode	LTE (CAT4)
Frequency range	2100 MHz (LTE (FDD), B1)
	1900 MHz (LTE (FDD), B2)
	1800 MHz (LTE (FDD), B3)
	1700 MHz (LTE (FDD), B4)
	850 MHz (LTE (FDD), B5)
	2600 MHz (LTE (FDD), B7)
	900 MHz (LTE (FDD), B8)
	700 MHz (LTE (FDD), B12)
	700 MHz (LTE (FDD), B13)
	800 MHz (LTE (FDD), B18)
	800 MHz (LTE (FDD), B19)
	800 MHz (LTE (FDD), B20)
	1900 MHz (LTE (FDD), B25)
	850 MHz (LTE (FDD), B26)
	700 MHz (LTE (FDD), B28)
	2100 MHz (LTE (FDD), B66)
	2000 MHz (LTE (TDD), B34)
	2600 MHz (LTE (TDD), B38)
	1900 MHz (LTE (TDD), B39)
	2300 MHz (LTE (TDD), B40)
	2500 MHz (LTE (TDD), B41)
	2100 MHz (WCDMA, B1)
	1900 MHz (WCDMA, B2)
	1700 MHz (WCDMA, B4)
	2100 MHz (WCDMA, B4)
	850 MHz (WCDMA, B6)
	900 MHz (WCDMA, B8)
	800 MHz (WCDMA, B19)
	B2 (GSM)
	B3 (GSM)
	B5 (GSM)
	B8 (GSM)
Data rate	150 Mbps (LTE-FDD, DL)
	50 Mbps (LTE-TDD, UL)
	130 Mbps (LTE-TDD, DL)
	30 Mbps (LTE-TDD, UL)
	42 Mbps (HSPA+, DL)
	5.76 Mbps (HSPA+, UL)
	384 kbps (WCDMA, DL)
	384 kbps (WCDMA, UL)
	296 kbps (EDGE, DL)
	236.8 kbps (EDGE, UL)
	107 kbps (GPRS, DL)
	85.6 kbps (GPRS, UL)
SIM Interface	Nano SIM (4FF)
	eSIM ready (eSIM is built in, will be supported in a later firmware version)
Country support	Global
Wireless
Interface description	GNSS (GPS / GLONASS / BDS / Galileo / QZSS)

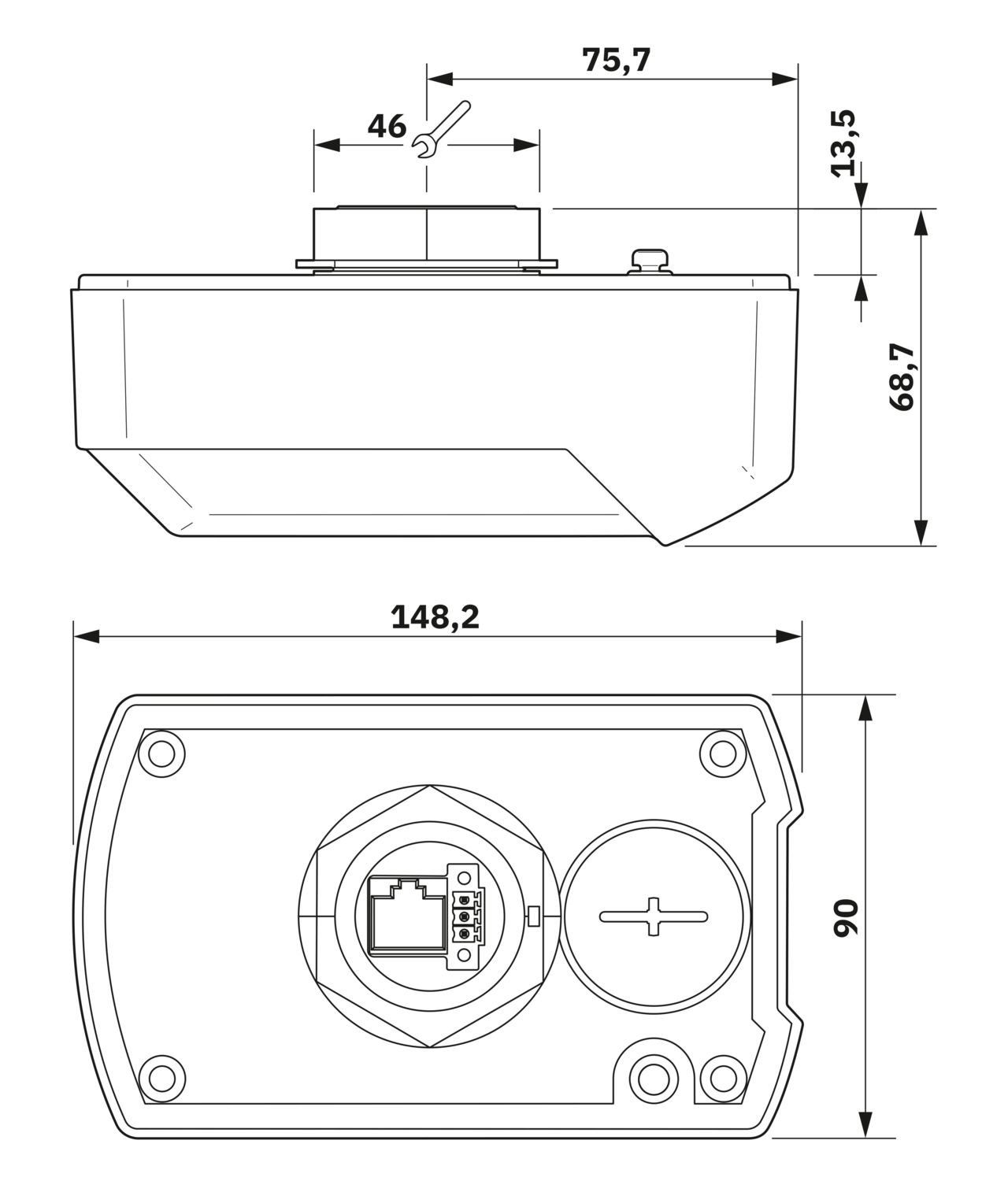

External dimensions
Width / Height / Depth	90 mm / 149 mm / 69 mm

Color (Upper housing part)	light gray (RAL 7035)
Material (Housing)	Polycarbonate
Flammability rating according to UL 94	V0

Other resistance	UV-resistant in accordance with UL746C, f1

Vibration resistance in accordance with DIN EN 60068-2-6	: 5g, 2.5 h, amplitude 0.35 mm
Shock in accordance with DIN EN 60068-2-27	: 30 g, 11 ms duration, half-sine shock pulse, three shocks per spatial direction

Ambient conditions
Degree of protection	IP66/IP69K (when installed)
Impact strength	IK10
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Permissible humidity (operation)	10 % ... 95 %
Permissible humidity (storage/transport)	10 % ... 95 %

CE
Certificate	CE-compliant
Wireless approval, Europe
Note	RED 2014/53/EU
Corrosive gas test
Identification	ISA-S71.04-1985 G3 Harsh Group A

Electromagnetic compatibility	Conformance with RED Directive 2014/53/EU
Noise immunity	EN 61000-6-2
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	± 4 kV (Test Level 3)
Discharge in air	± 8 kV (Test Level 3)
Comments	Criterion A
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	80 MHz ... 3 GHz (Test Level 3)
Field intensity	10 V/m
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	± 1 kV (Test Level 3)
Signal	± 1 kV (Ethernet)
Comments	Criterion B
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Input	± 0.5 kV (symmetrical)
	± 1 kV (asymmetrical)
Signal	± 1 kV (Data line, asymmetrical)
Comments	Criterion B
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Frequency range	0.15 MHz ... 80 MHz
Comments	Criterion A
Voltage	10 V
Emitted interference
Standards/regulations	EN 61000-6-3
Emitted interference
Standards/regulations	EN 55032
Comments	Radiated noise emissions, class B, industrial and residential environments
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.
