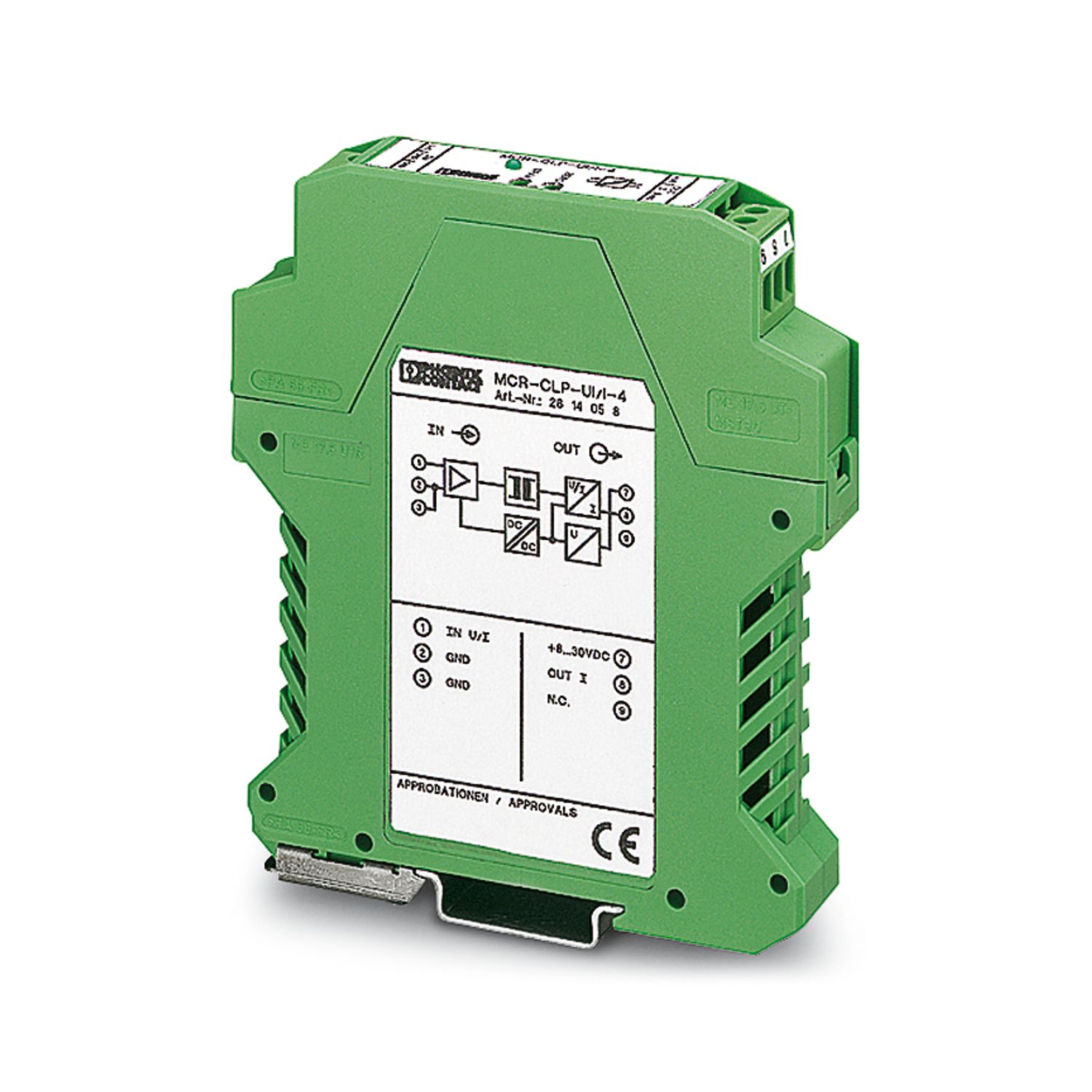

MCR-CLP-UI-I-4
-
Signal conditioner
2814058
MCR passive isolator, loop-powered, for electrical isolation of analog signals, with configurable input, output signal: 4..20 mA
Free download available.
Downloads

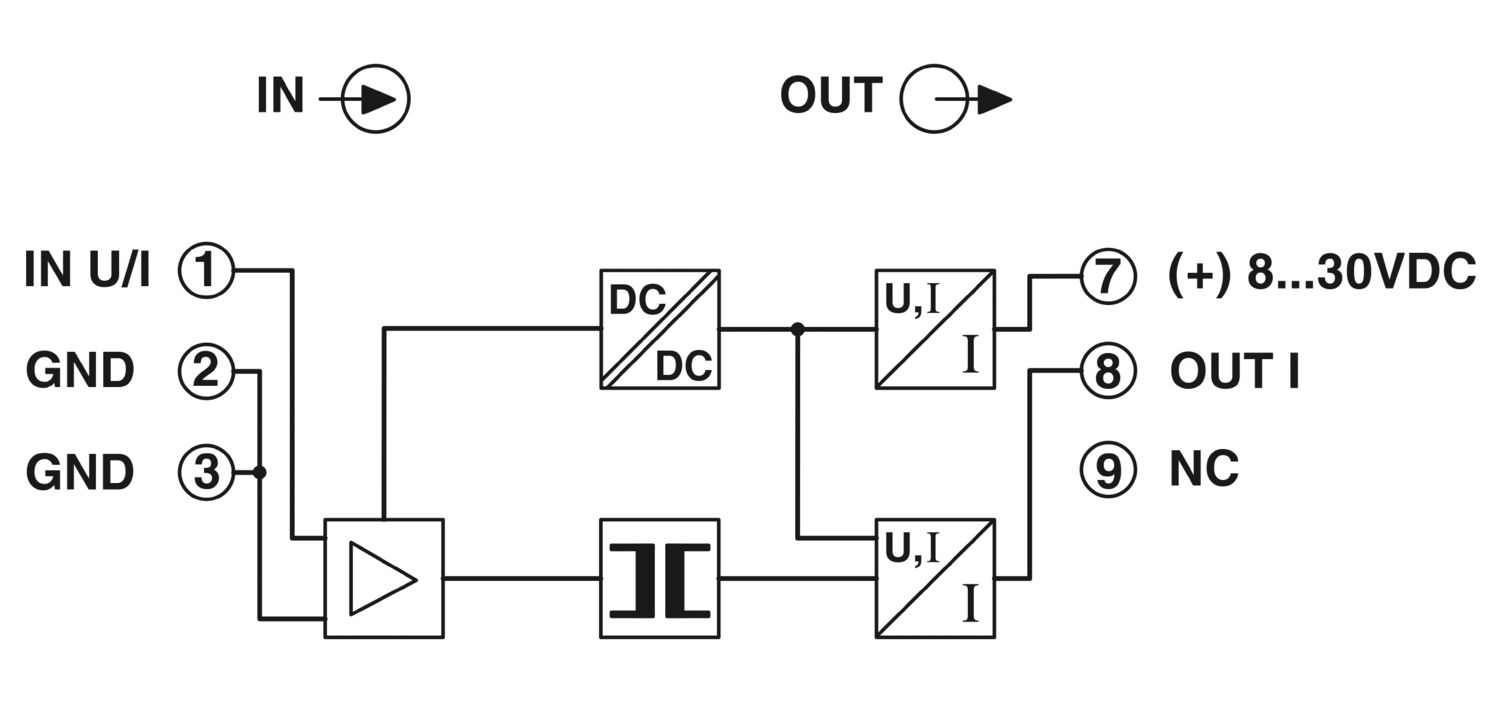

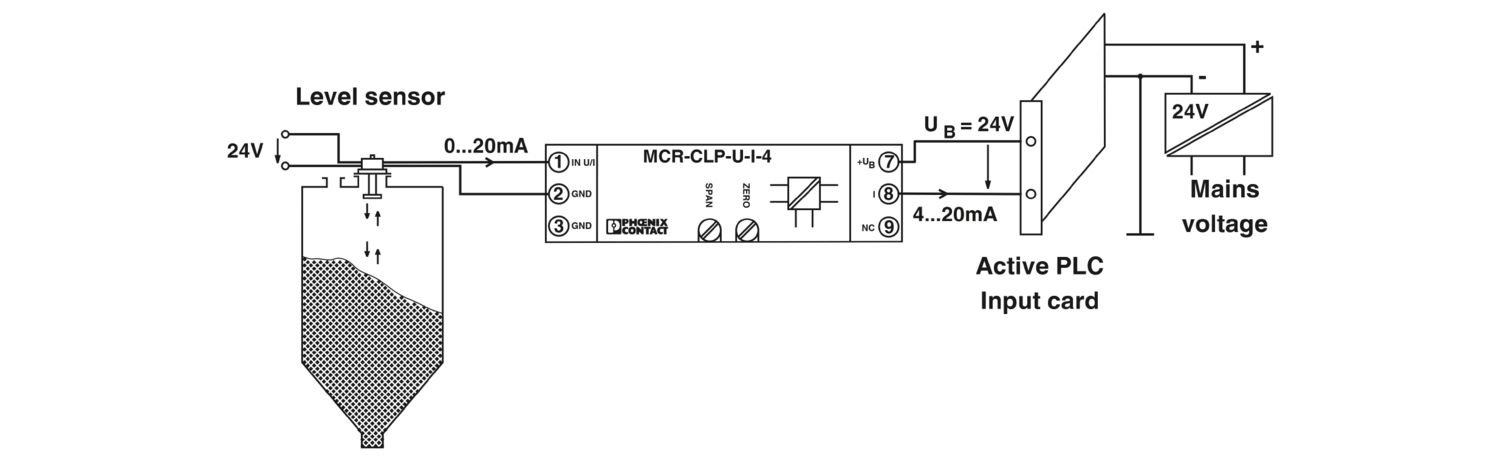

Product details
| Product type | Passive separator |
| No. of channels | 1 |
| Alignment span | ± 2 % (of final value) |
| Alignment zero | ± 2 % (of final value) |
| Limit frequency (3 dB) | 30 Hz |
| Maximum power dissipation for nominal condition | 160 mW |
| Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) |
| Step response (10-90%) | 11 ms |
| Maximum temperature coefficient | ≤ 0.01 %/K |
| Temperature coefficient, typical | 0.005 %/K |
| Maximum transmission error | ≤ 0.1 % (of final value) |
| Transmission error, typical | 0.05 % |
| Supply | |
| Designation | Loop-powered |
| Supply voltage range | 8 V DC ... 30 V DC |
| Signal | |
| Description of the input | Current input |
| Configurable/programmable | Yes |
| Max. voltage input signal | 30 V |
| Current input signal | 4 mA ... 20 mA (please indicate if different setting when ordering) |
| Max. current input signal | 50 mA |
| Input resistance of voltage input | 1 MΩ |
| Input resistance current input | 50 Ω |
| Signal: Current output | |
| Configurable/programmable | no |
| Current output signal | 4 mA ... 20 mA |
| Max. current output signal | 35 mA |
| Load/output load current output | ≤ 800 Ω (at UB = 24 V; otherwise: (UB - 8 V) / 20 mA) |
| Connection method | Pluggable screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross-section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 14 |
| Data communication (bypass) | |
| Limit frequency (3 dB) | 30 Hz |
| Dimensional drawing |
|
| Width | 17.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Color | green (RAL 6021) |
| Housing material | Polyamide PA non-reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 65 °C |
| CE | |
| Certificate | CE-compliant |
| UL, USA/Canada | |
| Identification | Class I, Div. 2, Groups A, B, C, D or Non-Hazardous Locations |
| Mounting position | any |
Compatible products
Your advantages
No separate supply voltage
4 mA ... 20 mA output
Electrically isolated input
Configurable input
Zero/span adjustment (±2 %)
