You can integrate Axioline Smart Elements into systems with the Smart Element interface. This Smart Element is a safe input module for use in a PROFIsafe system.

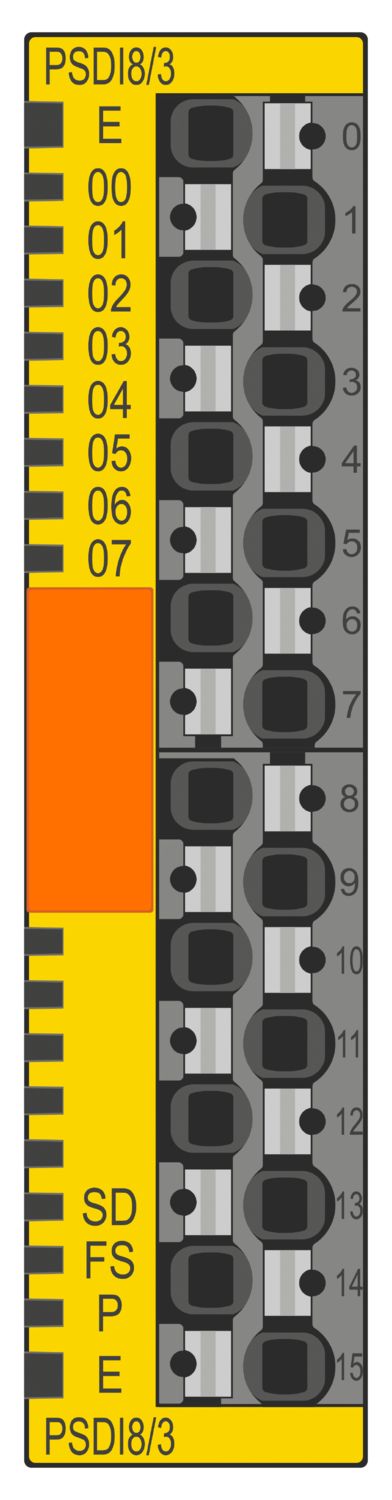

AXL SE PSDI8/3
-
Safety module
1079241
Axioline Smart Elements, Digital input module, Functional safety, PROFIsafe, only for connection to Phoenix Contact or Siemens controller, Safe digital inputs: 4 (2-channel assignment), 8 (1-channel assignment), 24 V DC, connection technology: 3-conductor, degree of protection: IP20
This product needs further products for operation.
Mandatory accessories
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 14.9 mm |
| Height | 62.2 mm |
| Depth | 62 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Smart Element interface | |
| Number of interfaces | 1 |
| Connection method | Card edge connector |
| Transmission speed | See system in which you use the Smart Element. |
| Module | |
| Input address area | 6 Byte (PROFIsafe 2.6.1) |
| Output address area | 5 Byte (PROFIsafe 2.6.1) |
| Digital: | |
| Input name | Safe digital inputs |
| Description of the input | EN 61131-2, type 3 |
| Number of inputs | 4 (2-channel assignment) |
| 8 (1-channel assignment) | |
| Cable length | max. 200 m (200 m from the clock output to the safe input (total based on forward and return path)) |
| Connection method | Push-in connection |
| Connection technology | 3-conductor |
| Input voltage range "0" signal | -3 V DC ... 5 V DC |
| Input voltage range "1" signal | 11 V DC ... 30 V DC |
| Nominal input voltage UIN | 24 V DC |
| Nominal input current at UIN | typ. 2.7 mA |
| Input filter time | 1.5 ms |
| 3 ms (Default) | |
| 5 ms | |
| 15 ms | |
| Protective circuit | Polarity reversal protection of the inputs; Diode |
| Product type | I/O component |
| Product family | Axioline Smart Elements |
| Application | Functional safety |
| PROFIsafe | |
| only for connection to Phoenix Contact or Siemens controller | |
| Type | modular |
| Mounting position | any |
| Operating mode | PROFIsafe 2.4, PROFIsafe 2.6.1 |
| Insulation characteristics | |
| Overvoltage category | II (IEC 60664-1) |
| Pollution degree | 2 (EN 60664-1) |
| Maximum power dissipation for nominal condition | typ. 520 mW |
| Transmission medium | Copper |
| Potentials | |
| Protection | external fusing via the system in which the Smart Element is used |
| Protective circuit | Surge protection of the supply voltage; electronic (35 V, 0.5 s) |
| Polarity reversal protection of the supply voltage; via the system in which the Smart Element is used | |
| Potentials: Axioline F local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Current draw | max. 140 mA (at UBus 5 V DC) |
| typ. 101 mA (at UBus 5 V DC) | |
| Potentials: Communications power supply of the Smart Elements (USE) | |
| Supply voltage | using card edge connectors |
| Potentials: I/O supply (UP) | |
| Supply voltage | 24 V DC (using card edge connectors) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 12 mA (Power supply from Up with 30 V DC, all inputs set, without power supply to the sensors via clock supplies OUT_T1 and OUT_T2) |
| typ. 9 mA (Power supply from Up with 24 V DC, all inputs set, without power supply to the sensors via clock supplies OUT_T1 and OUT_T2) | |
| Current consumption | min. 8 mA (Power supply from Up with 19.2 V DC, all inputs set, without power supply to the sensors via clock supplies OUT_T1 and OUT_T2) |
| Power consumption | max. 360 mW |
| min. 154 mW | |
| Connection technology | |
| Connection name | I/O |
| Note on the connection method | Note the specification in the section Conductor cross sections, and stripping and insertion lengths. |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.25 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.25 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| I/O | |
| Connection method | Push-in connection |
| Note on the connection method | Note the specification in the section Conductor cross sections, and stripping and insertion lengths. |
| Conductor cross section, rigid | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP20 |
| Degree of protection at installation location | min. IP54 |
| Air pressure (operation) | 70 kPa ... 108 kPa |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Air clearances and creepage distances | |
| Air clearances and creepage distances | IEC 60664-1 |
| Mounting type | Smart Element slot |
| Mounting position | any |
DNV
Approval ID: TAA00003B0RINA
Approval ID: ELE263623XGABS
Approval ID: 24-2510075-PDAcULus Listed
Approval ID: E238705Functional Safety
Approval ID: 968/EZ 650.04/20
Your advantages
Up to SIL 3 in accordance with EN 61508
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
8 safe inputs for 1-channel assignment
4 safe inputs for 2-channel assignment
