VS-08-T-G-RJ45/IP20
-
RJ45 sleeve housing
1652295
RJ45 sleeve housing, IP20, for pin insert VS-08-ST-RJ45, with push-pull interlocking for panel mounting frames, inverted design, for Factoryline modular managed switches, for cable cross section 5.0 mm ... 6.5 mm
Product details
| Product type | Bend protection sleeve |
| Type | RJ45 |
| No. of cable outlets | 1 |
| Cable outlet | straight |

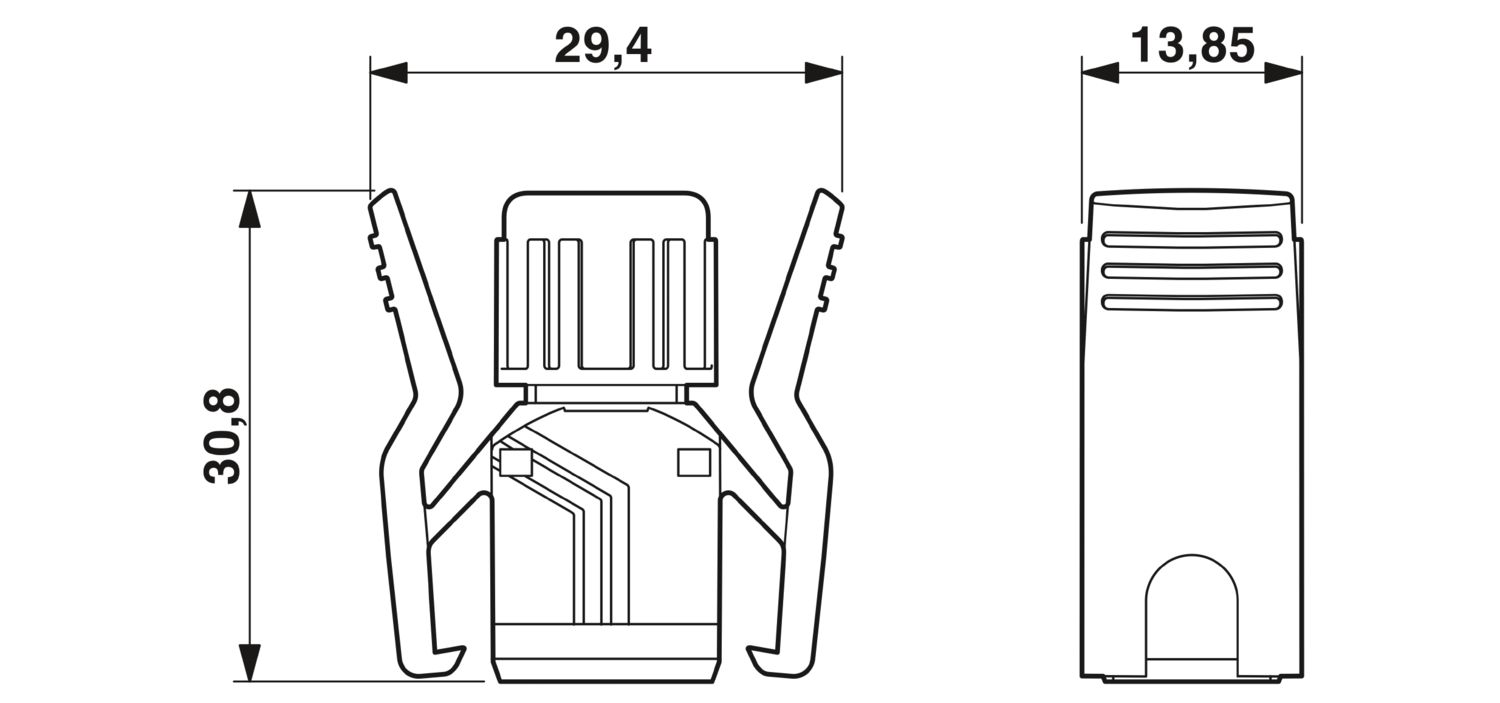

| Dimensional drawing |
|
| Width | 13.8 mm |
| Height | 29.4 mm |
| Length | 31.5 mm |
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
| Material for screw connection | PA |
| External cable diameter | 5 mm ... 6.5 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 750 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
