HC-SMP 150-B24
-
Plug mounting panel
1660892

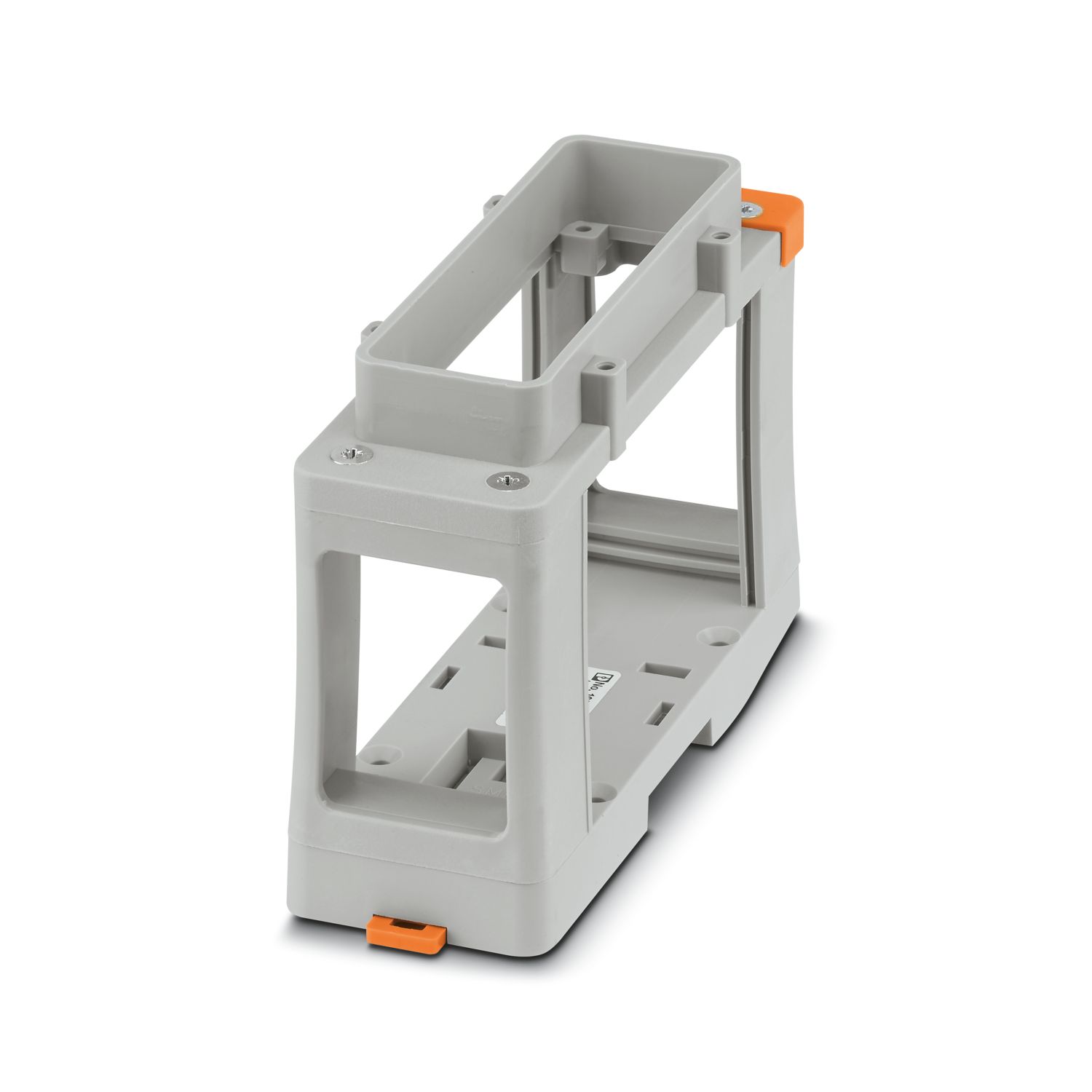

Plug assembly board, 150 mm, with base element, snaps onto NS 35/7.5 and NS 35/15, for contact inserts HC-B 24
Product details

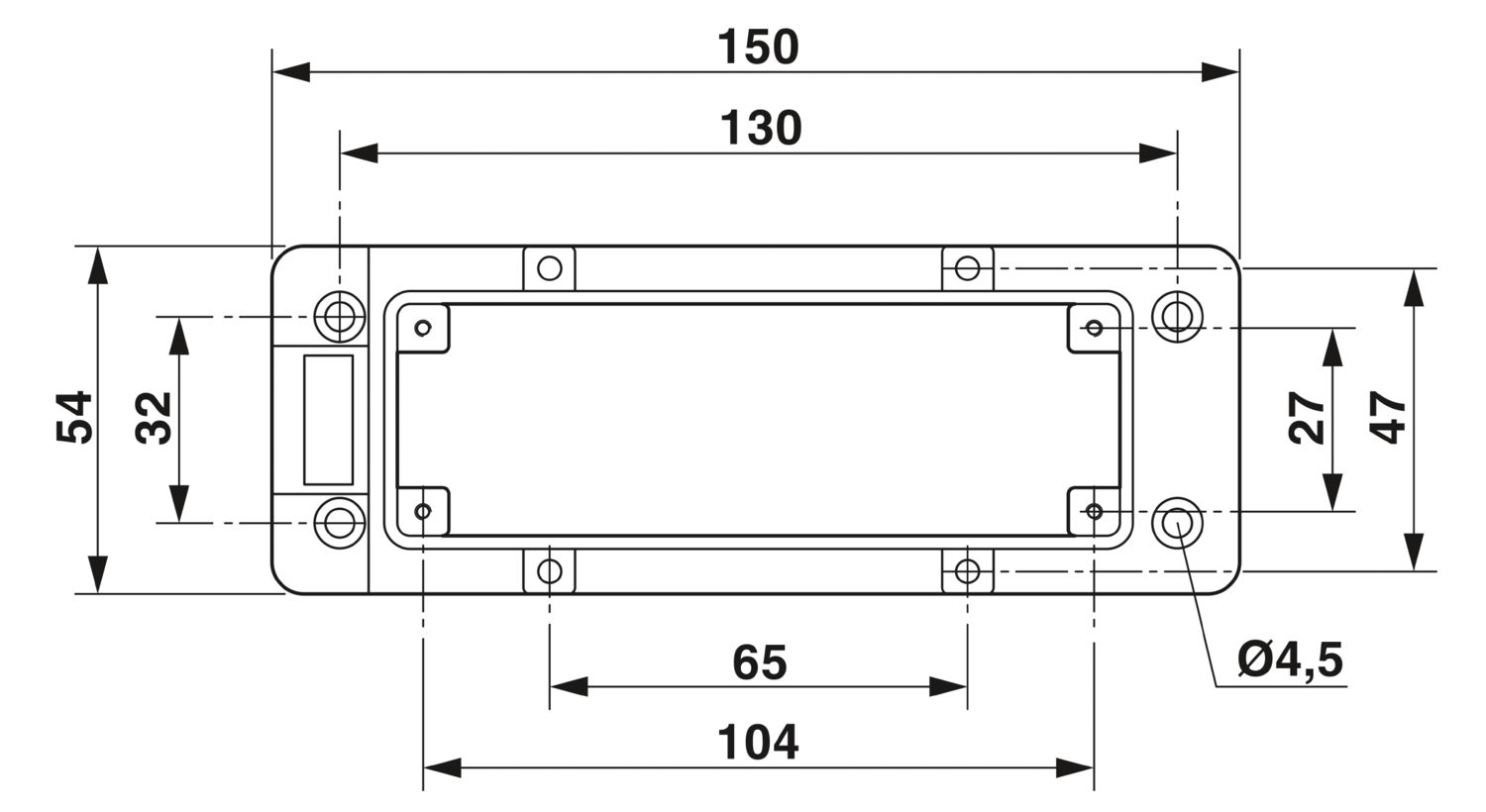

| Product type | DIN rail mounting frame |
| Type | B24 |
| Dimensional drawing |
|
| Width | 54 mm |
| Height | 100 mm |
| Length | 150 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 44 mm |
| Hole diameter | 4.5 mm |
| Assembly note | Can only be used in conjunction with HC-SAZ 150-B 24 (Order No. 1660892). |
| For a complete plug-in connection, an HC-SMP 150... connector mounting panel and HC-SAZ... plug receptacle are required. |
