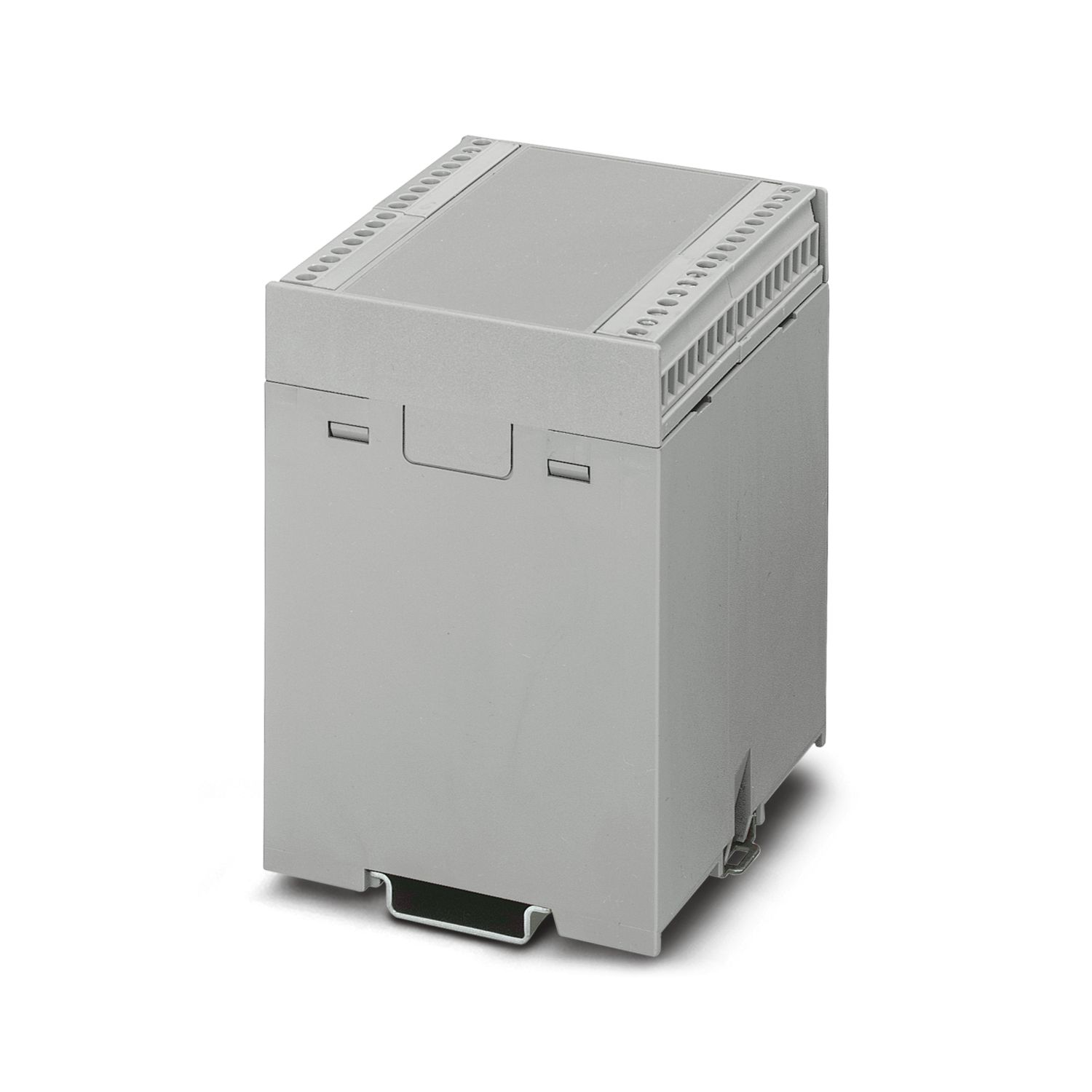

EG 90-GMF/PC GY
-
Mounting base housing
2200186
Component housing, Lower housing part with metal foot catch, without vents, width: 90 mm, height: 75 mm, color: window grey (similar RAL 7040), cross connection: without bus connector, number of positions cross connector: not relevant
Product details
| Product type | Enclosure bottom part |
| Housing type | Component housing |
| Housing series | EG |
| Product family | EG..-G |
| Ventilation openings present | no |
| Dimensional drawing |
|
| Width | 90 mm |
| Height | 75 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color | gray (7040) |
| Color (Housing) | window grey (RAL 7040) |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting |
Compatible products
Your advantages
Tool-free mounting
