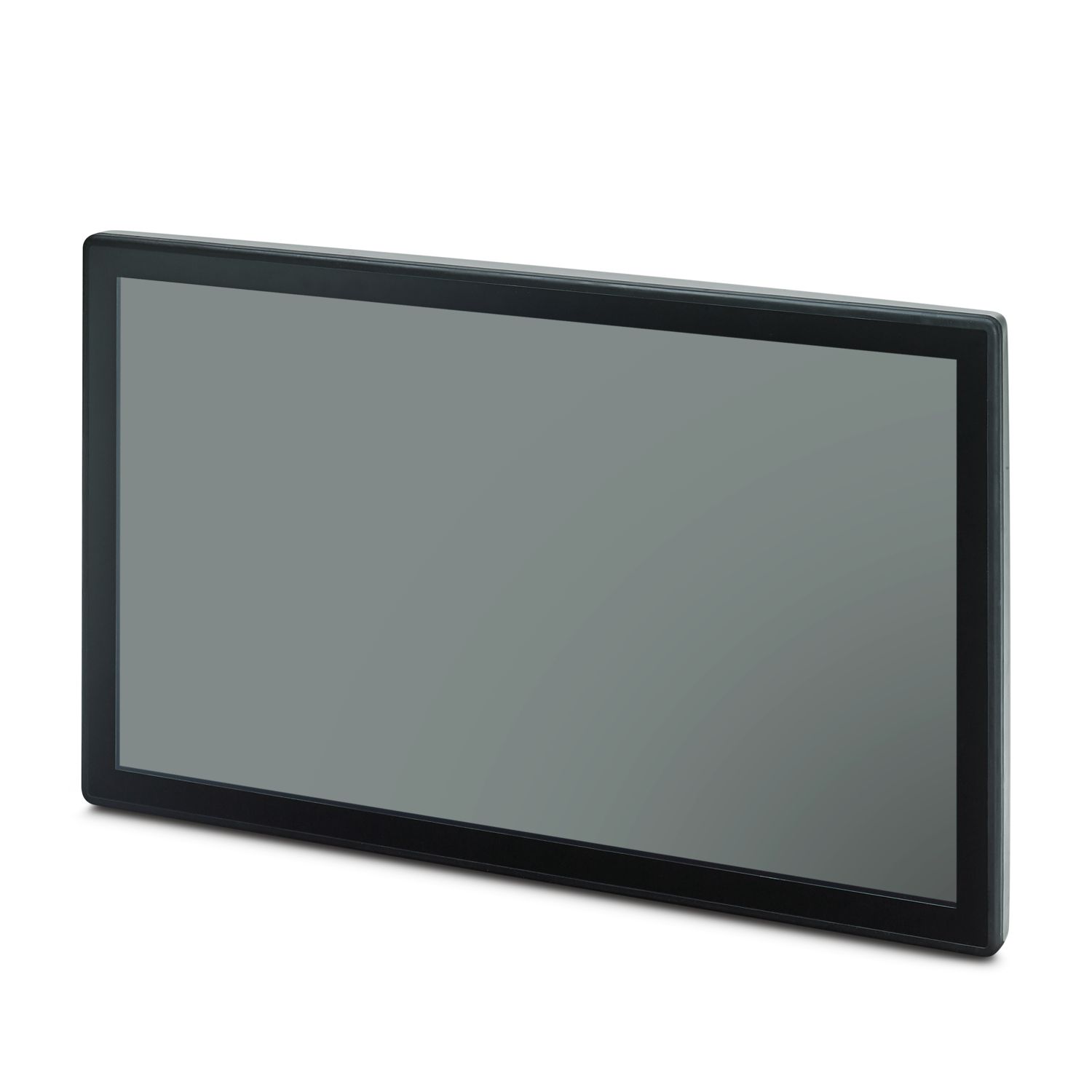

FPM 23.8 69K - Monitor - 1261659

Notes

Order information:	Please note that an adapter listed under “Accessories” is required to operate the device.
Note on application
Note on application	Only for industrial use
Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product properties

Product type	Monitor
Computer data
Processor	without processor
Operating system	without operating system
RAM	without RAM
Data storage system	without data storage
Cooling	passive
Slots	without slots
Display
Display type	60.5 cm / 23.8"-TFT
Screen resolution	1920 x 1080 Pixel(s) (Full HD)
Touch technology	projective-capacitive (PCAP)
Display lighting type	LED
Brightness	400 cd/m²
MTBF	30000 h
Color spectrum	16.2 million colors
Reading angle left	89.00 °
Reading angle right	89.00 °
Reading angle top	89.00 °
Reading angle bottom	89.00 °

System properties

User software	without user software

Electrical properties

Supply
Supply voltage	24 V DC
Supply voltage range	18 V DC ... 30 V DC

Interfaces

Interfaces	3x USB 2.0
	1x USB server
Optional interfaces	Without optional interface
Monitor output	1x DisplayPort
	1x HDMI
Network	without network
Bus system	without bus system

Dimensions

External dimensions
Width / Height / Depth	578 mm / 347 mm / 67 mm

Material specifications

Material front plate	Glass (3 mm), hardened and non-reflective
Housing material	Stainless steel, fully enclosed

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP69K
Ambient temperature (operation)	0 °C ... 45 °C
Permissible humidity (operation)	10 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 85 % (non-condensing)
Shock	DIN EN 60068-2-27
Vibration (operation)	DIN EN 60068-2-6

Mounting

Mounting type	VESA holder (via adapter)
Mounting type		Tube mounting (via adapter)
Holder system	VESA MIS-D 100 C

Item number	1261659
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DRBBAD
Product key	DRBBAD
GTIN	4063151371845
Weight per piece (including packing)	13,8 g
Weight per piece (excluding packing)	10,6 g
Customs tariff number	85285210
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-10 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Boric acid (CAS: n/a)
REACH candidate substance (CAS No.)		Lead (CAS: 7439-92-1)
SCIP	67d77617-81e3-4a9e-a09a-e431876b3fe2

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FPM 23.8 69K - Monitor

1261659

Product details

ECLASS

ETIM

UNSPSC

UL Listed

cUL Listed

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FPM 23.8 69K - Monitor 1261659

Product details

ECLASS

ETIM

UNSPSC

Compatible products

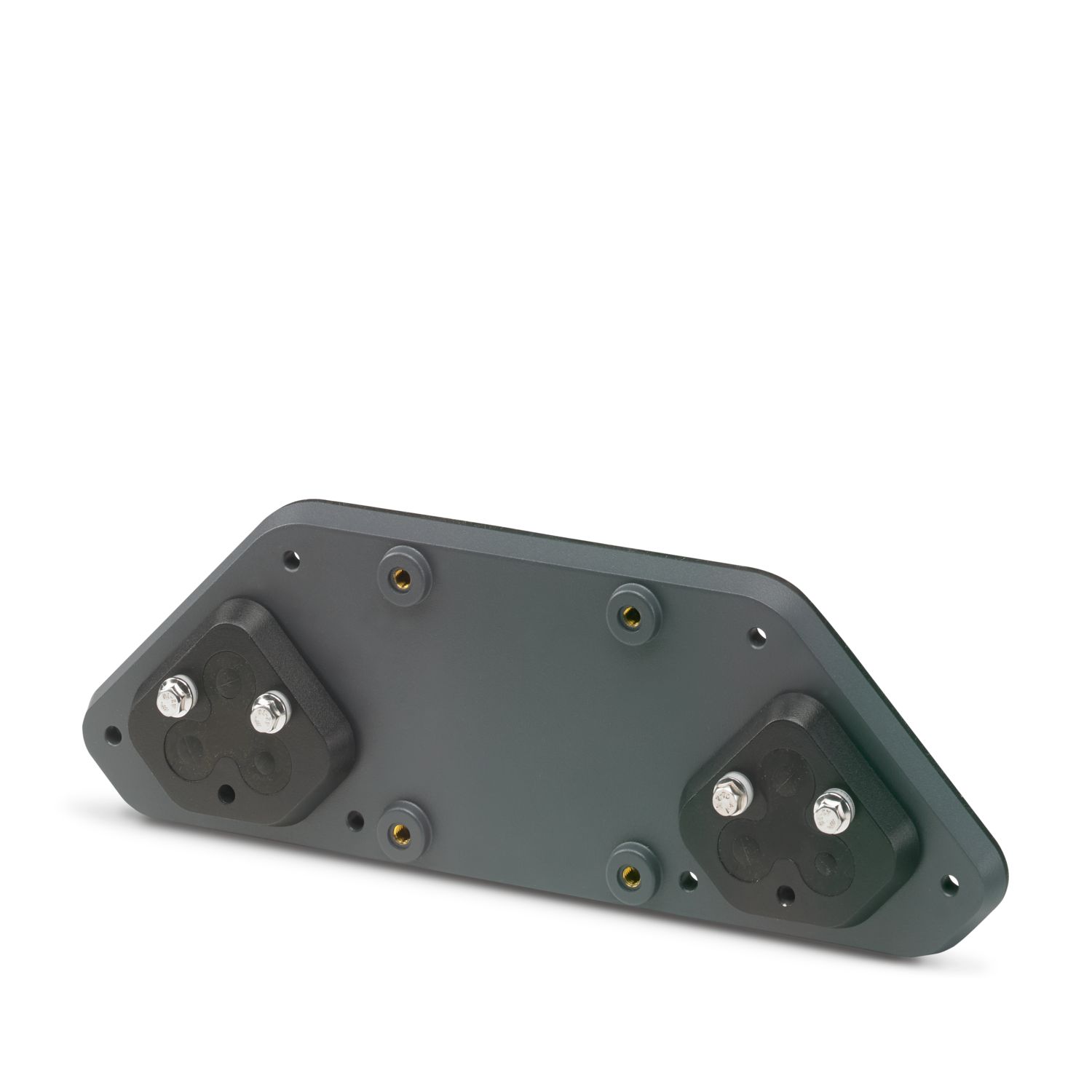

VESA ADAPTER - Mounting material 1280672

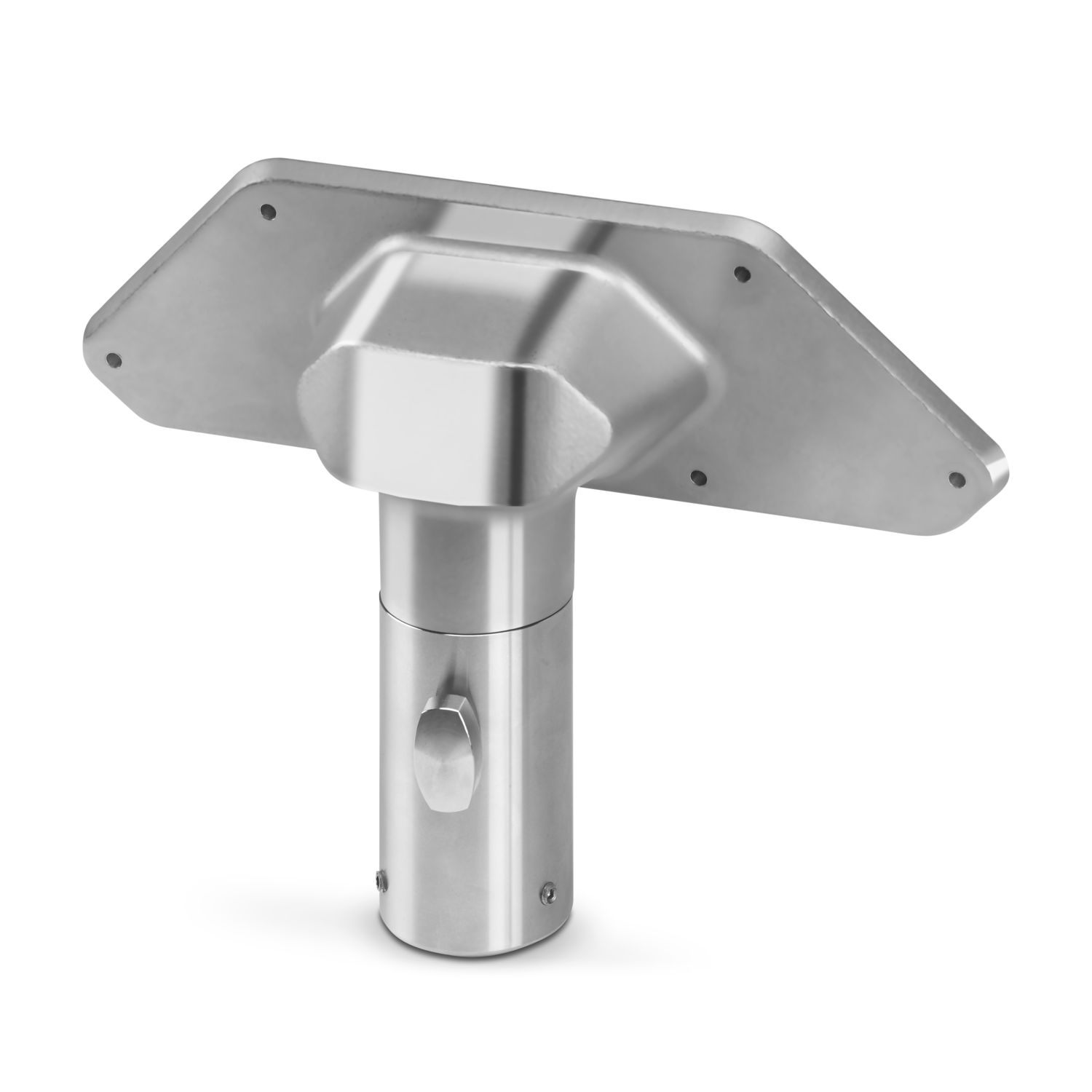

TUBE ADAPTER - Mounting material 1280671
