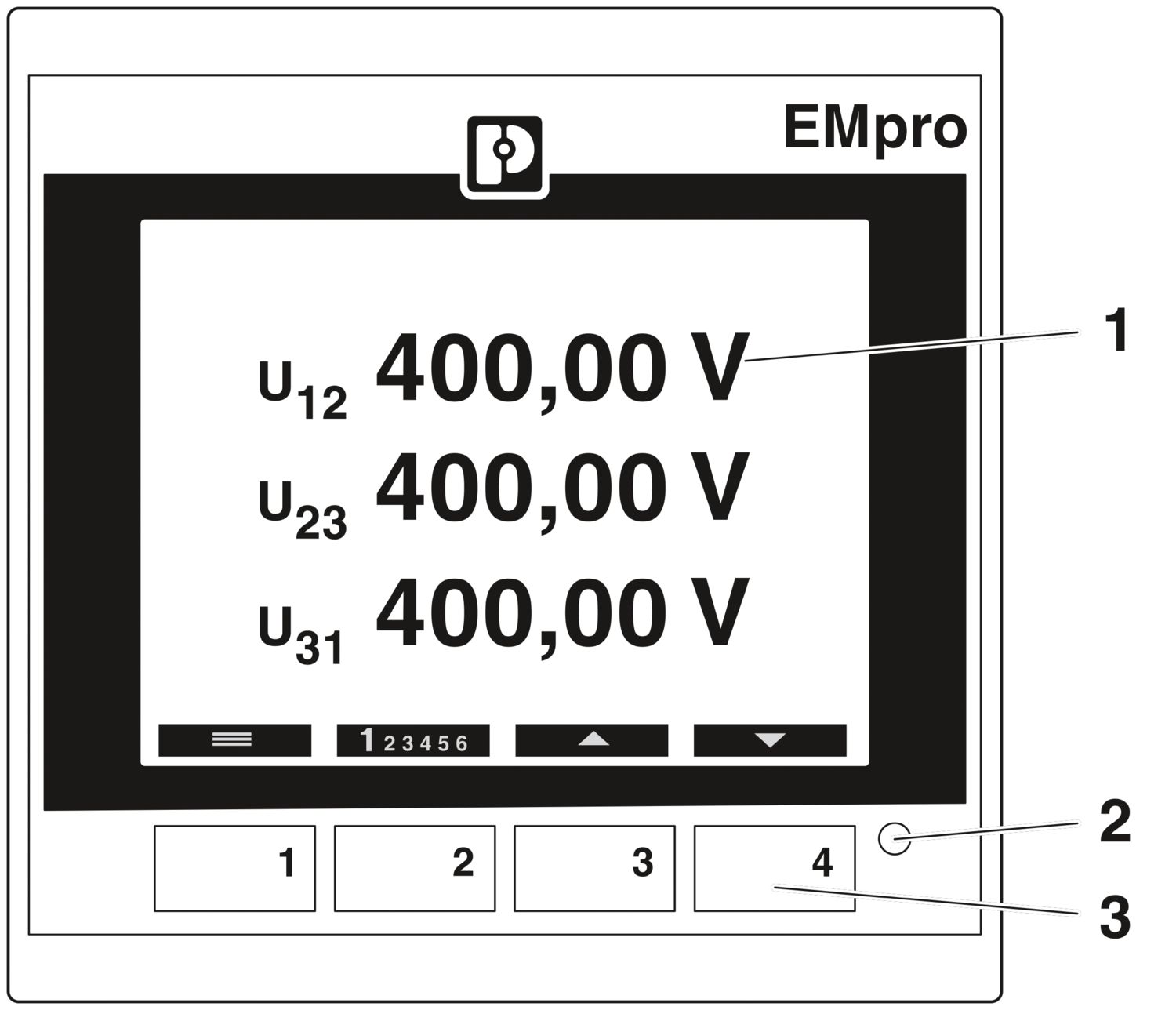

EEM-MA771 - Measuring device - 2908286

Product properties

Product type	Energy measuring device
Product family	EMpro

Electrical properties

Maximum power dissipation for nominal condition	10 VA
Mains type	3-phase (3 or 4-conductor), 2-phase (2-conductor), and single-phase (1-conductor)
Electrical isolation
Test voltage	4 kV AC (50 Hz, 60 s)
Pollution degree	2
Insulation	Reinforced insulation
Electrical isolation Housing against all potentials IEC 61010-1
Standards/regulations	IEC 61010-1
Overvoltage category	III (300 V AC)
Overvoltage category		II (600 V AC)
Insulation	Reinforced insulation
Electrical isolation Supply against all other potentials IEC 61010-1
Standards/regulations	IEC 61010-1
Overvoltage category	III (300 V AC)
Overvoltage category		II (600 V AC)
Insulation	Reinforced insulation
Electrical isolation Voltage measurement input against all other potentials IEC 61010-2-030
Standards/regulations	IEC 61010-2-030
Measuring category	III (300 V AC)
Measuring category		II (600 V AC)
Insulation	Reinforced insulation
Electrical isolation Digital I/Os
Insulation	Functional insulation
Electrical isolation Communication interface
Insulation	Functional insulation
Supply
Supply voltage range	100 V AC ... 400 V AC (±20 %)
Supply voltage range		150 V DC ... 250 V DC (±20 %)
Power consumption	≤ 4 W
Nominal frequency	50 Hz ... 60 Hz (AC sine)

Input data

General
Measuring principle	True r.m.s. value measurement
Measured value	AC sine (50 Hz/60 Hz)
Acquisition of harmonics	up to 63rd harmonic
Description of the input	Digital input in accordance with IEC/EN 61131-2 (type 3)
Number	1
Voltage input signal	24 V DC
Voltage input signal		0 V DC ... 30 V DC
Current input signal	2 mA ... 15 mA
Protection	250 mA (fast-blow)
Protective circuit	Protection against incorrect DC connection (max. 30 V)
Measurement: Voltage

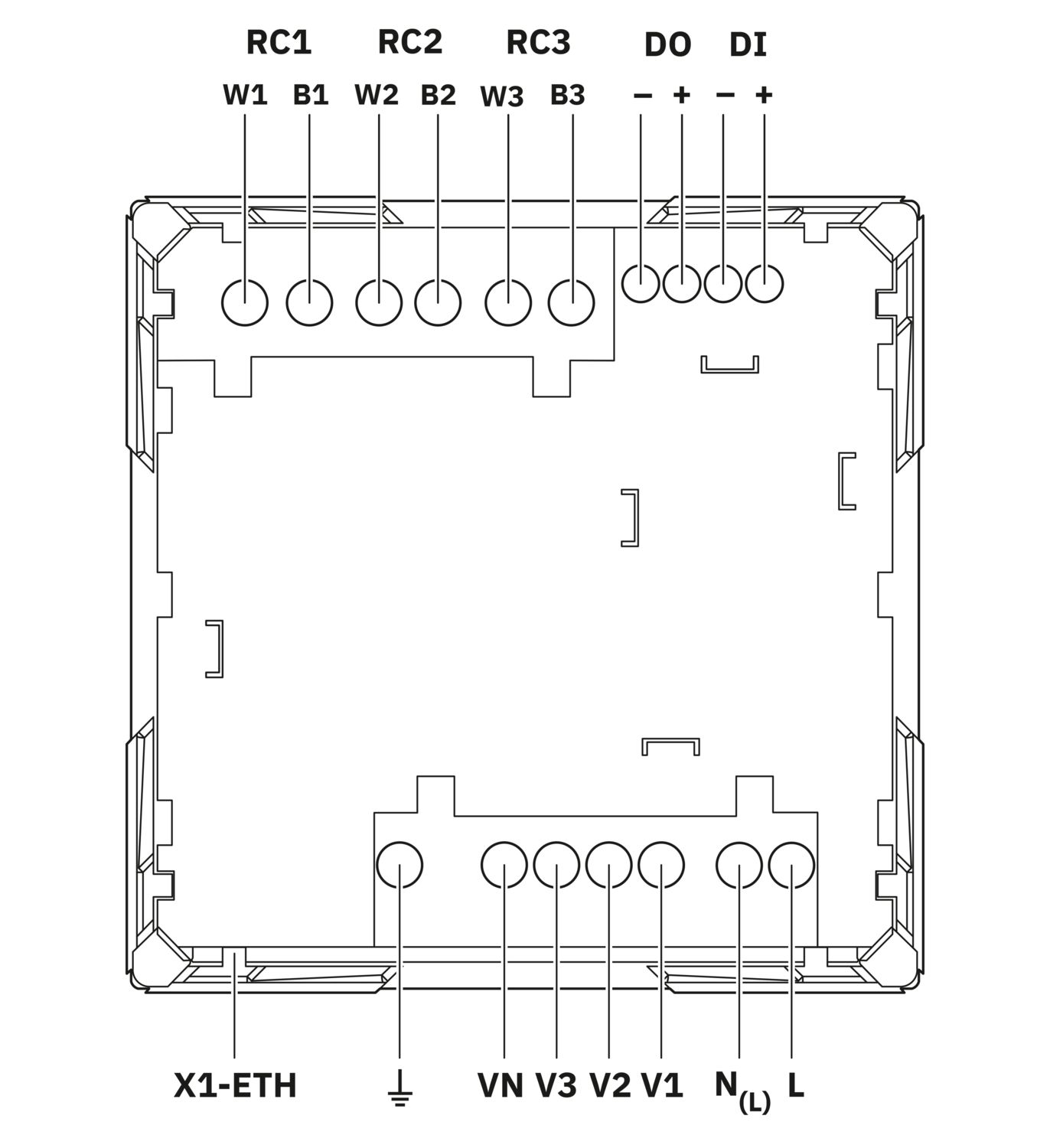

Input name	Voltage measuring input V1, V2, V3
Input voltage range direct	35 V AC ... 690 V AC (Phase/Phase)
Input voltage range direct		20 V AC ... 400 V AC (Phase/neutral conductor)
Input voltage range via external transformers	60 V AC ... 2000000 V AC (primary)
Input voltage range via external transformers		60 V AC ... 400 V AC (secondary)
Surge voltage capacity	760 V AC (Phase/Phase)
Precision	0.2 %
Power consumption	< 0.5 VA
Measurement: Current
Input name	Current measurement RC1, RC2, RC3
Input current	≤ 400 A (Measurement level 1)
		≤ 4000 A (Measurement level 2)
		Transmission factor: 100 mV/1000 A when using a Phoenix Contact coil
Input measuring range voltage	500 µV ... 400 mV
Response threshold from measuring range nominal value	5 A
Operate threshold	500 µV (5 A)
Precision	0.5 %
Measurement: Power
Precision	1 %
Real energy (IEC 62053-21)	Class 1
Reactive power (IEC 62053-23)	Class 2

Output data

Output description	Digital output in accordance with IEC/EN 61131-2 (type 3)
Number	1
Current output signal	≤ 100 mA
Voltage output signal	24 V DC
Protection	250 mA (fast-blow)
Protective circuit	Protection against incorrect DC connection (max. 30 V)

Connection data

Current / voltage / supply
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 6 mm²
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section AWG	24 ... 10
Tightening torque	0.5 Nm ... 0.6 Nm
Digital I/O / communication
Connection method	Screw connection
Stripping length	7 mm
Screw thread	M3
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section AWG	26 ... 14
Tightening torque	0.5 Nm ... 0.6 Nm

Interfaces

Data: Network interface
Communication protocol	Modbus/TCP
	REST
Connection method	RJ45

Dimensions

Width	96 mm
Height	96 mm
Depth	73.3 mm
	58.3 mm (Installation depth)

Material specifications

Color	gray (RAL 7042)

Environmental and real-life conditions

Ambient conditions
Degree of protection (Housing)	IP20 (Housing)
Degree of protection (Display)	IP54 (Display with seal (included))
Ambient temperature (operation)	-25 °C ... 70 °C
Ambient temperature (storage/transport)	-30 °C ... 80 °C
Altitude	≤ 2000 m
Max. permissible relative humidity (operation)	≤ 95 % (non-condensing)

Approvals

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
UL, USA/Canada
Identification	UL/C-UL Listed UL 61010-1
UL data
Operating mode	Indoor use

Standards and regulations

Standards/regulations	IEC 61010-1
	IEC 61326-1
	IEC 61557-12

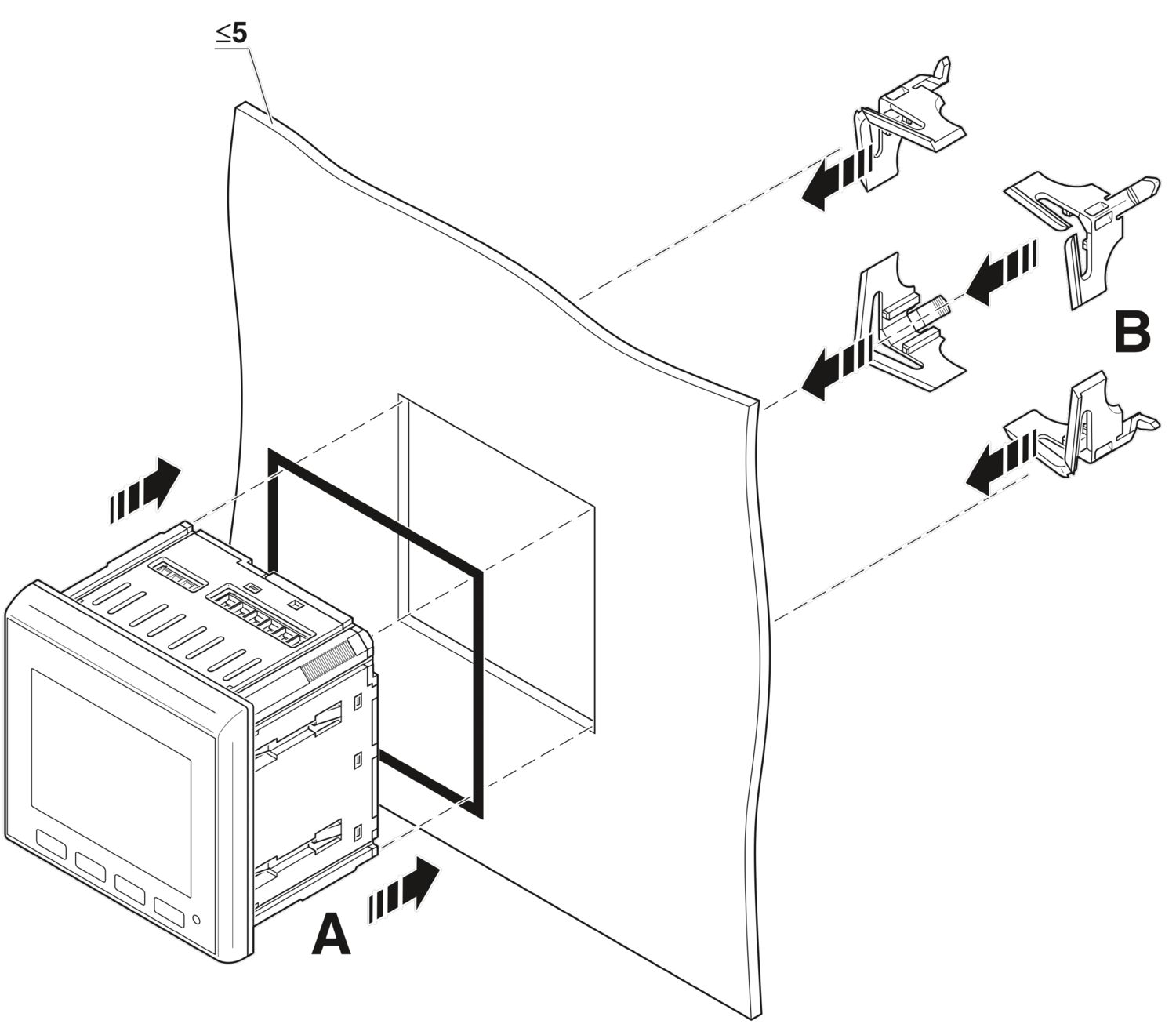

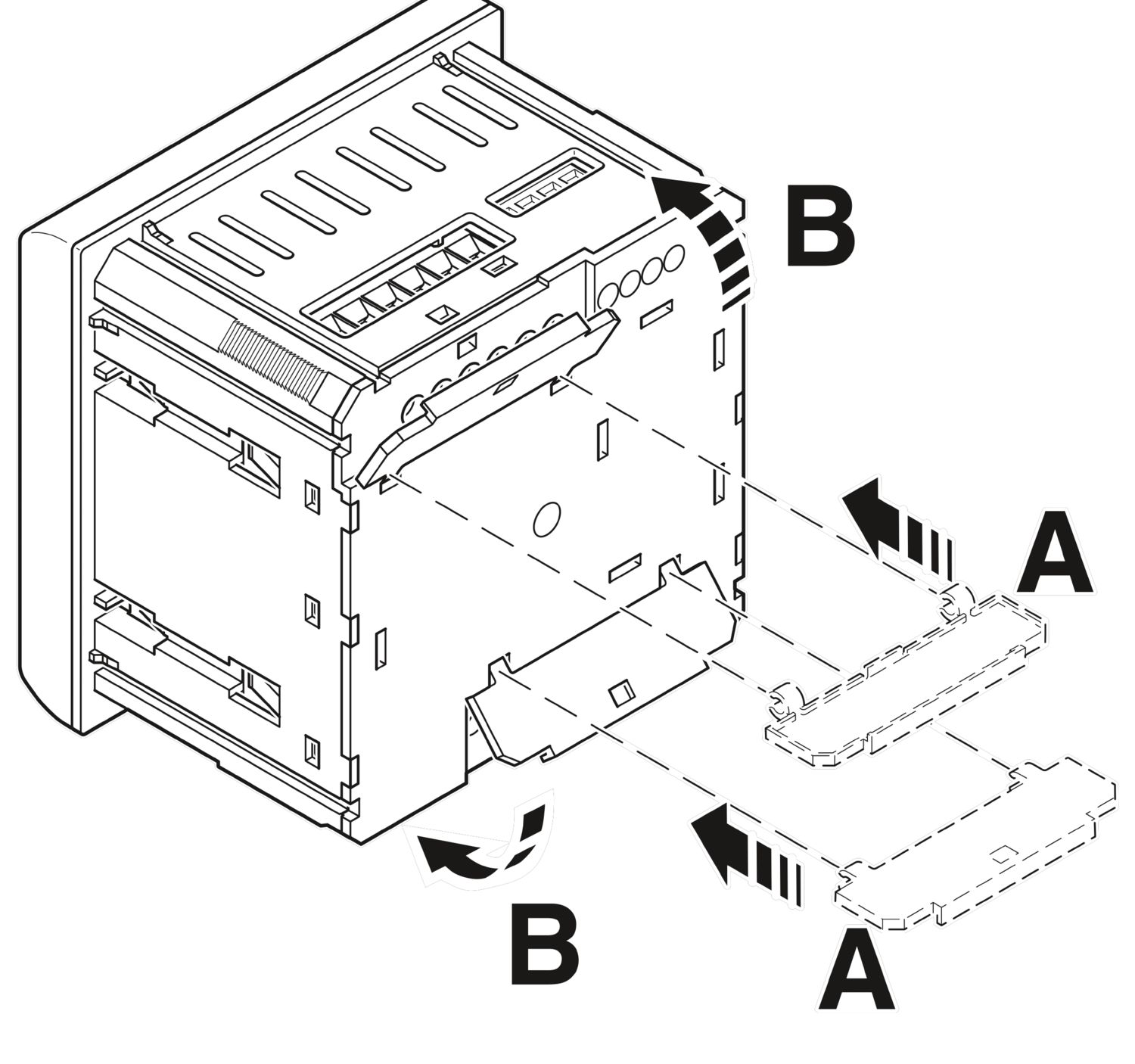

Mounting

Mounting type	Panel mount
Mounting position	Front panel installation, horizontal

Item number	2908286
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	CMMC21
Product key	CMMC21
GTIN	4055626471969
Weight per piece (including packing)	397 g
Weight per piece (excluding packing)	500 g
Customs tariff number	90303100
Country of origin	DE

ECLASS-13.0	27142330
ECLASS-15.0	27142330

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
REACH candidate substance (CAS No.)		Perfluorobutane sulfonic acid (PFBS) and its salts (CAS: n/a)
SCIP	f62f1ad5-9bb0-42e8-8f34-43a24ab95cc5
