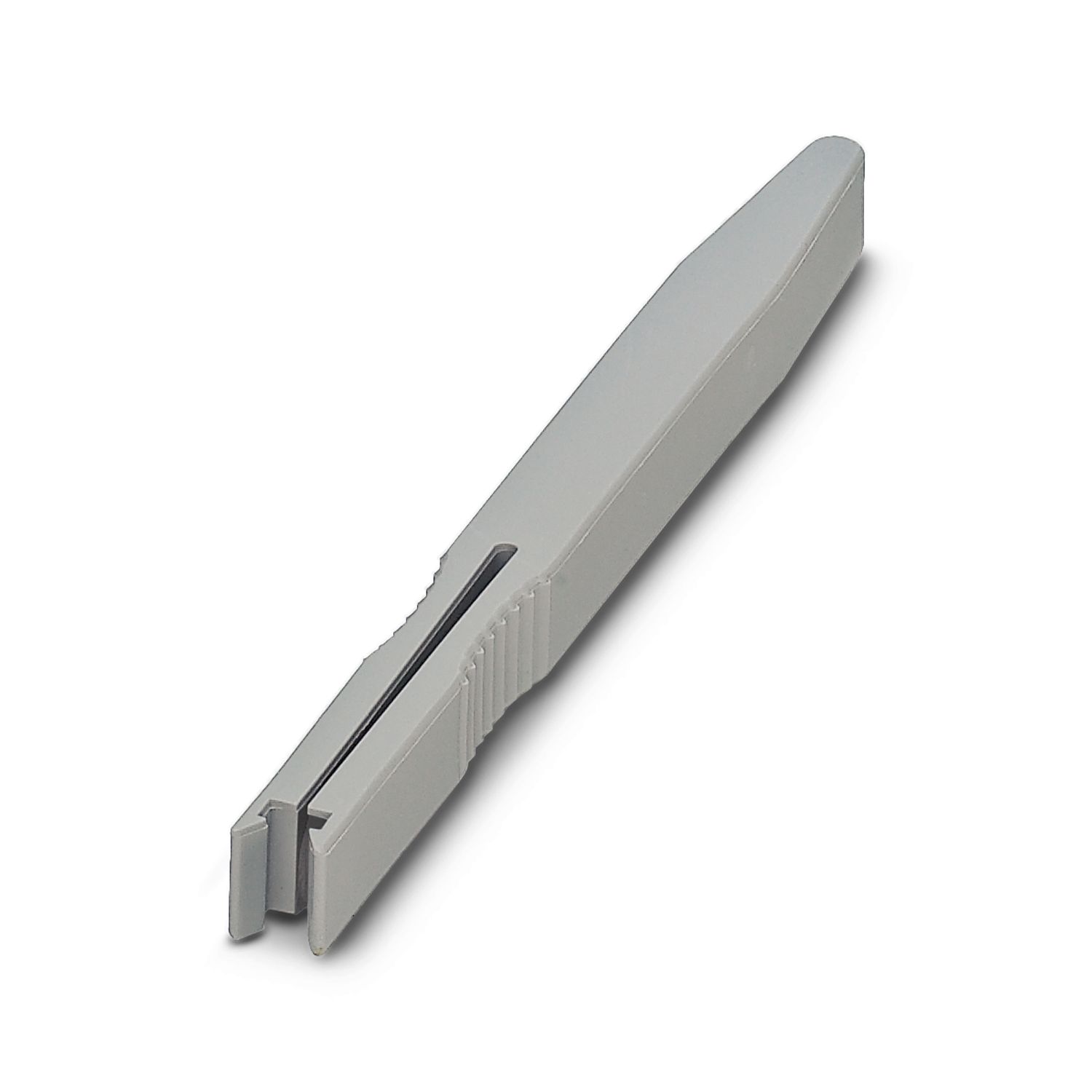

Isolating plug, silver-plated, can be used in UK...-TG, UKK...-TG, UDK...-TG, MBK...-TG, DIK...-TG, DOK...-TG, and ZFK...-TG disconnect terminal blocks, color: gray
Product details
Product type
Plug
Number of positions
1
Pitch
4.5 mm
Nominal current
16 A
Nominal voltage
400 V
Width
4.5 mm
Height
10 mm
Depth
31.2 mm
Length
10 mm
Pitch
4.5 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V2
Insulating material
PA
Static insulating material application in cold
-40 °C
Relative insulation material temperature index (Elec., UL 746 B)
125 °C
Ambient conditions
Ambient temperature (operation)
-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
