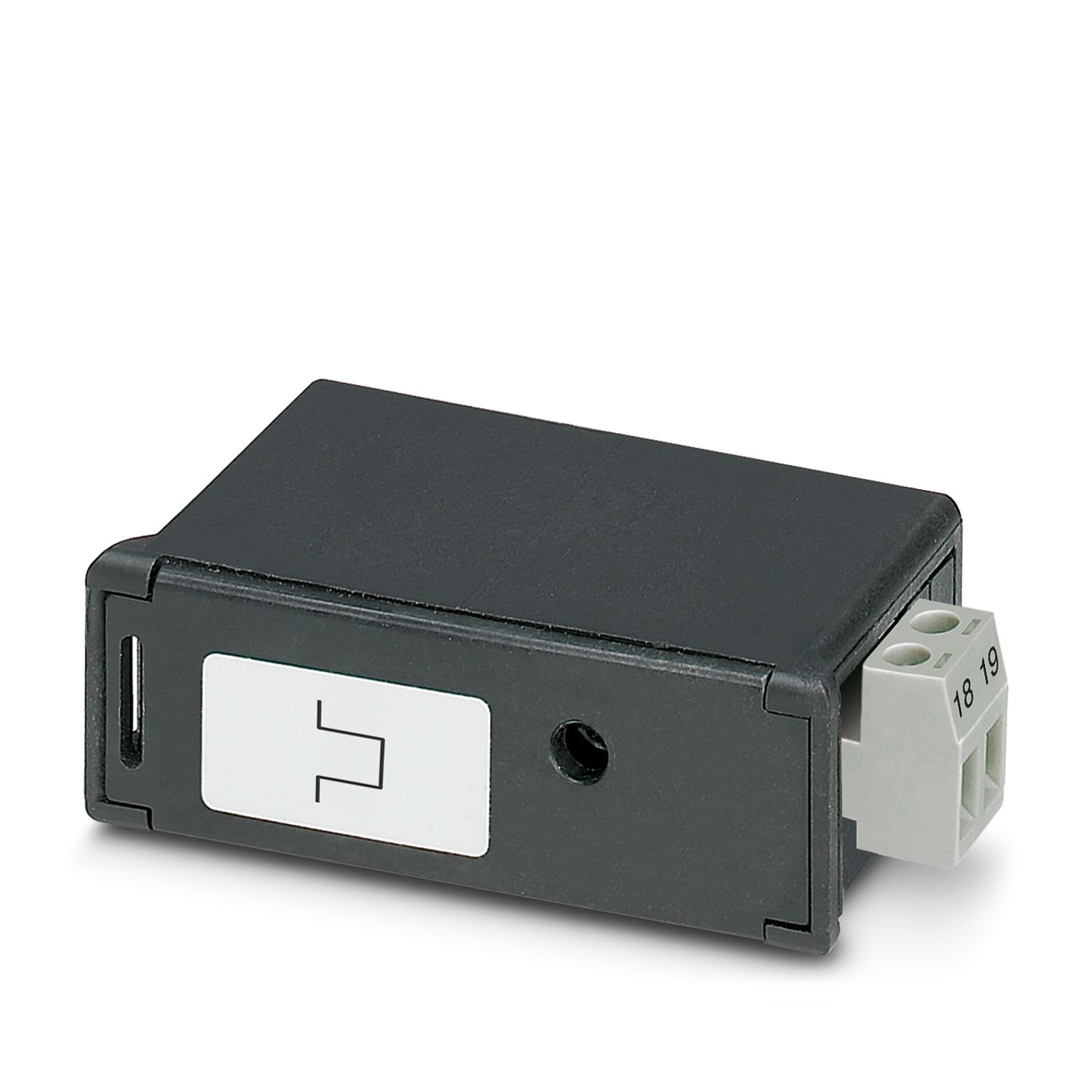

EEM-IMP-MA400 - Function module

EEM-IMP-MA400 - Function module

2904314

Function module with a pulse or alarm output for the EEM-MA400

Product details

Expand all Collapse all

Technical data

Product properties

Insulation characteristics
Overvoltage category	III
Pollution degree	2

Electrical properties

Rated insulation voltage	300 V AC (EN 61010-1)
Electrical isolation	EN 61010-1 (Safe isolation)
		EN 61010-1 (Safe isolation)
		EN 61010-1 (Basic insulation)
Test voltage	3.5 kV AC (50 Hz, 1 min.)
Test voltage		2.2 kV AC (50 Hz, 1 min.)
Supply
Supply voltage	9 V (via EEM-MA400)

Output data

Output description	Relay output
Number	1
Maximum switching voltage	100 V DC
Switching capacity	10 VA (0.5 A)

Connection data

Connection method	COMBICON plug-in screw terminal block
Stripping length	6 mm
Conductor cross-section rigid	0.5 mm² ... 2.5 mm²
Conductor cross-section flexible	0.5 mm² ... 2.5 mm²
Conductor cross-section AWG	20 ... 14
Tightening torque	0.4 Nm ... 0.4 Nm

Interfaces

Data
Connection method	Pluggable screw terminal block
Data
Connection method	Pluggable screw terminal block

Dimensions

Width	22.5 mm
Height	65 mm
Depth	48 mm

Material specifications

Color	black (RAL 9005)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-10 °C ... 55 °C (14 °F ... 131 °F)
Ambient temperature (storage/transport)	-20 °C ... 85 °C (-4 °F ... 185 °F)
Max. permissible relative humidity (operation)	≤ 95 %
Max. salt spray content	≤ 2.5 %

Approvals

CE
Certificate	CE-compliant
UL, USA/Canada
Identification	UL 61010-1
		CSA-C22.2 No. 61010-1
		cULus

Commercial data

Item number	2904314
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	CMMC12
Product key	CMMC12
GTIN	4046356804264
Weight per piece (including packing)	120,7 g
Weight per piece (excluding packing)	119,8 g
Customs tariff number	90309000
Country of origin	HU

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
