EC 2,5 P TR
-
Europe connectors
3240167

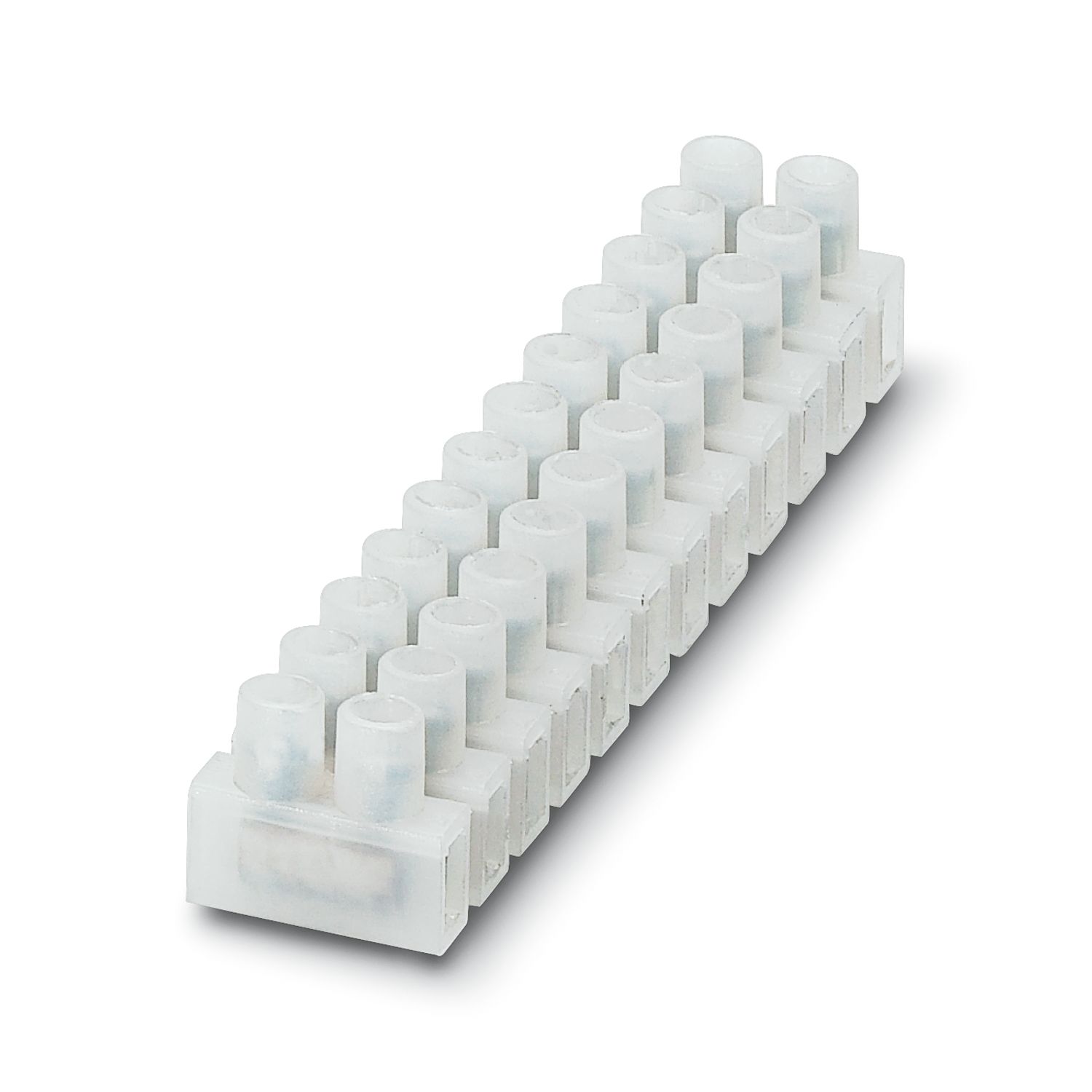

Polyamide Europe terminal strip, transparent, with wire protection, for connecting solid conductors and stranded conductors with and without ferrules with a cross section of 0.5 to 2.5 mm2
Product details
| Product type | Europe connector |
| Number of positions | 12 |
| Pitch | 8 mm |
| Number of connections | 24 |
| Number of rows | 1 |
| Maximum power dissipation for nominal condition | 0.77 W |
| Nominal cross section | 2.5 mm² |
| Screw thread | M2,6 |
| Tightening torque | 0.4 ... 0.5 Nm |
| Stripping length | 5 mm |
| Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
| Cross section AWG | 20 ... 14 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 14 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 1.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 1 mm² |
| 2 conductors with same cross section, solid | 0.5 mm² ... 0.75 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² ... 0.75 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² |
| Nominal current | 24 A (with a 2.5 mm² conductor cross section) |
| Maximum load current | 24 A (with a 2.5 mm² conductor cross section) |
| Nominal voltage | 450 V (Only use secured in place.) |
| Nominal cross section | 2.5 mm² |
| Width | 16.2 mm |
| Height | 13.4 mm |
| Depth | 16.2 mm |
| Drill hole spacing | 8 mm |
| Pitch | 8 mm |
| Color | transparent |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PA |
| Mechanical data | |
| Open side panel | No |
| Technical data | |
| Drill hole spacing | 8 mm |
| Mounting type | direct screw connection |
| Item number | 3240167 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | BE7322 |
| Product key | BE7322 |
| Catalog page | Page 556 (C-3-2019) |
| GTIN | 4046356457903 |
| Weight per piece (including packing) | 20,07 g |
| Weight per piece (excluding packing) | 20,07 g |
| Customs tariff number | 85369010 |
| Country of origin | AT |
ETIM
| ETIM 8.0 | EC001284 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 6(c) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| SCIP | 752ad24f-4ef2-426b-8b6f-315c2b38fa3b |
