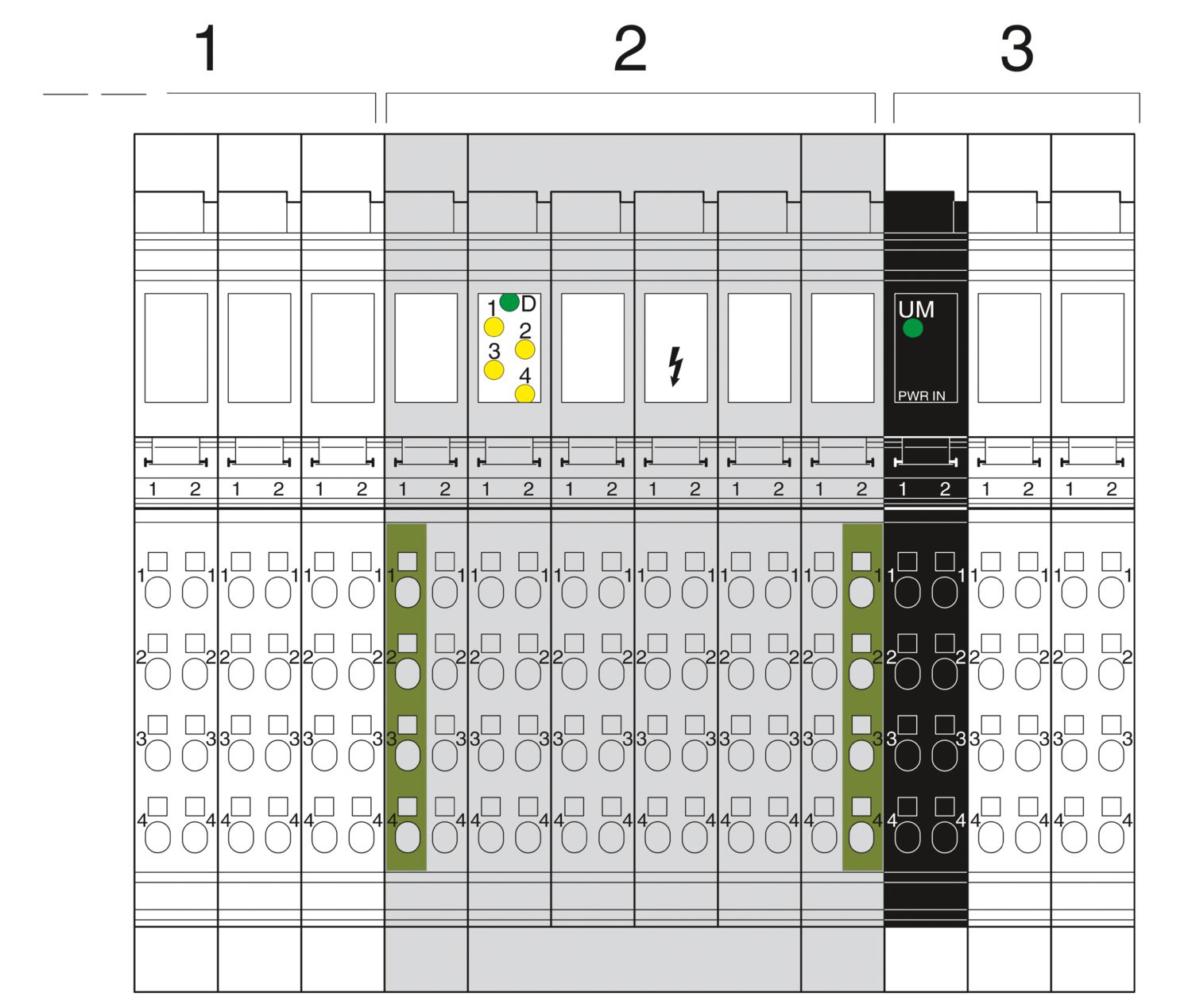

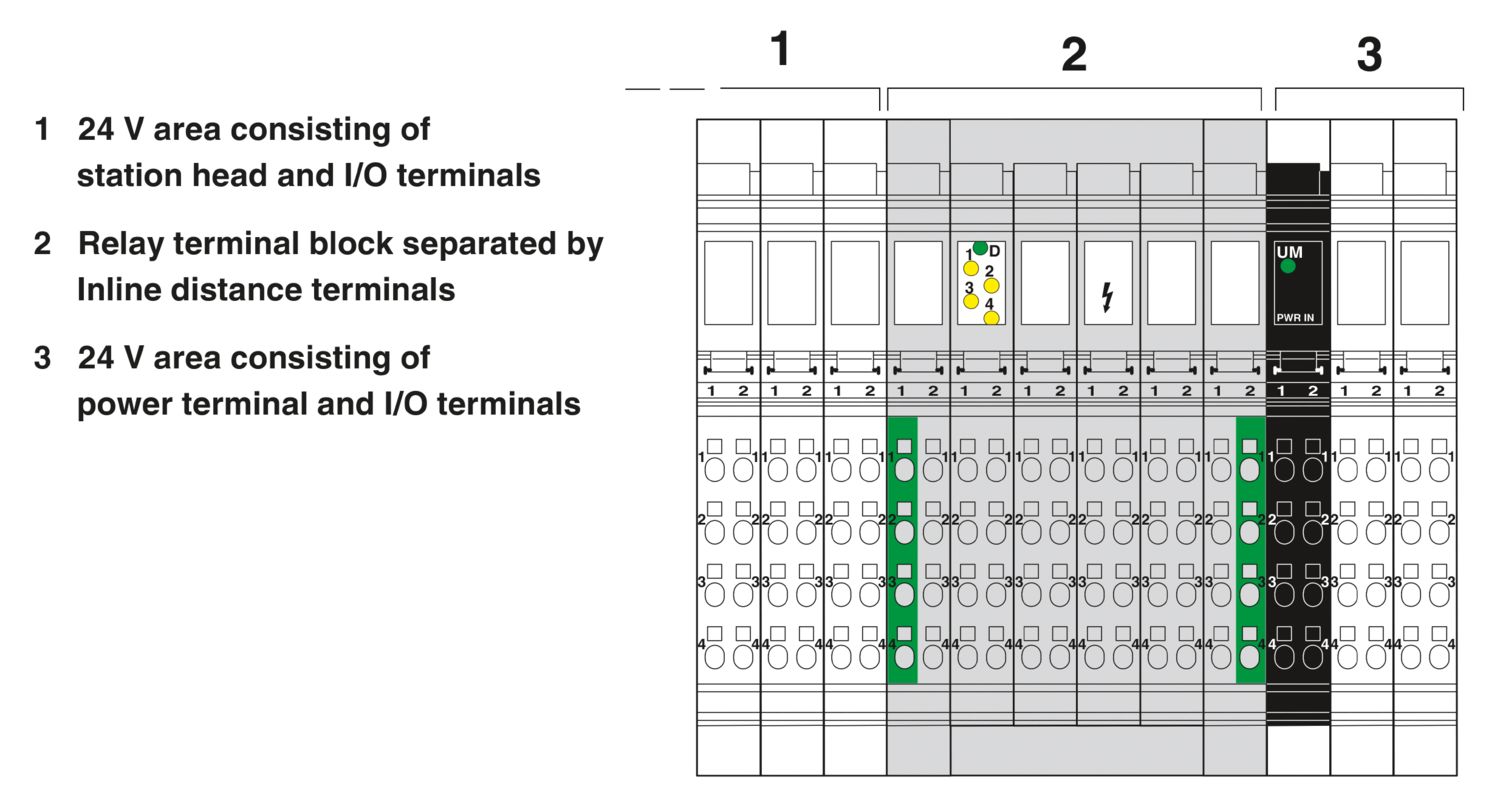

The terminal is designed for use within an Inline station. Within an Inline station, a relay terminal can be used to switch voltages that are not available in the segment in which the terminal is used (e.g., switching 230 V AC in a 24 V DC segment). In this case, place a distance terminal before and after the relay terminal. This maintains the isolating distance between the individual areas. The distance terminals interrupt the potential jumpers for the main and segment voltage, ground, and functional ground. Cables are not connected to these terminals.

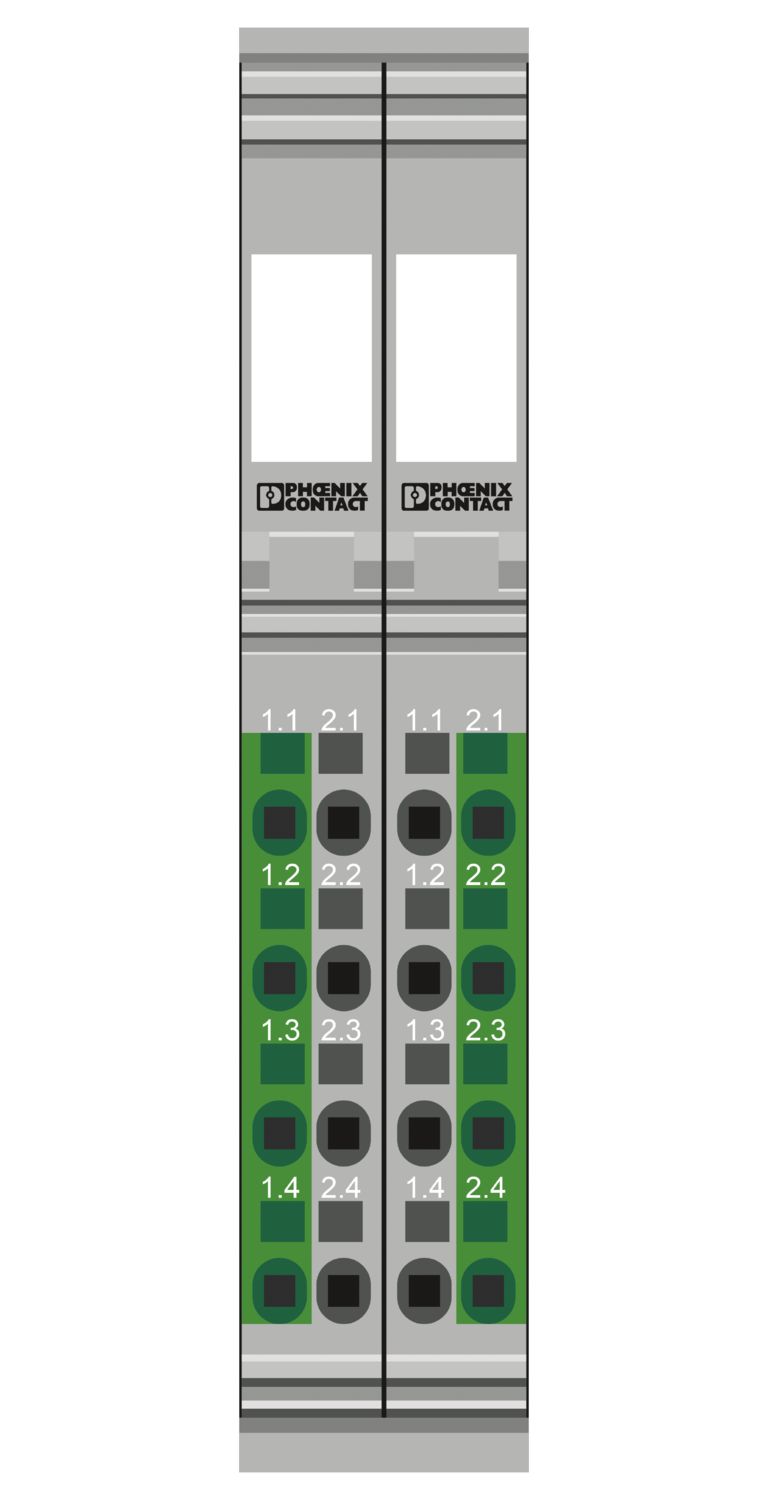

IB IL DOR LV-SET-PAC
-
Disconnect terminal block
2861645
Product details
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Distance terminal |
| Product family | Inline |
| Type | modular |
| Insulation characteristics | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Module | |
| ID code (dec.) | none |
| ID code (hex) | none |
| Register length | 0 Byte |
| Required parameter data | 0 Byte |
| Required configuration data | 0 Byte |
| Test section | 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min |
| Inline connector | |
| Connection method | Spring-cage connection |
| Stripping length | 8 mm |
| Inline local bus | |
| Connection method | Inline data jumper |
| Dimensional drawing |
|
| Width | 24.4 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Color (Housing) | gray (RAL 7042) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % |
| Mounting type | DIN rail mounting |
