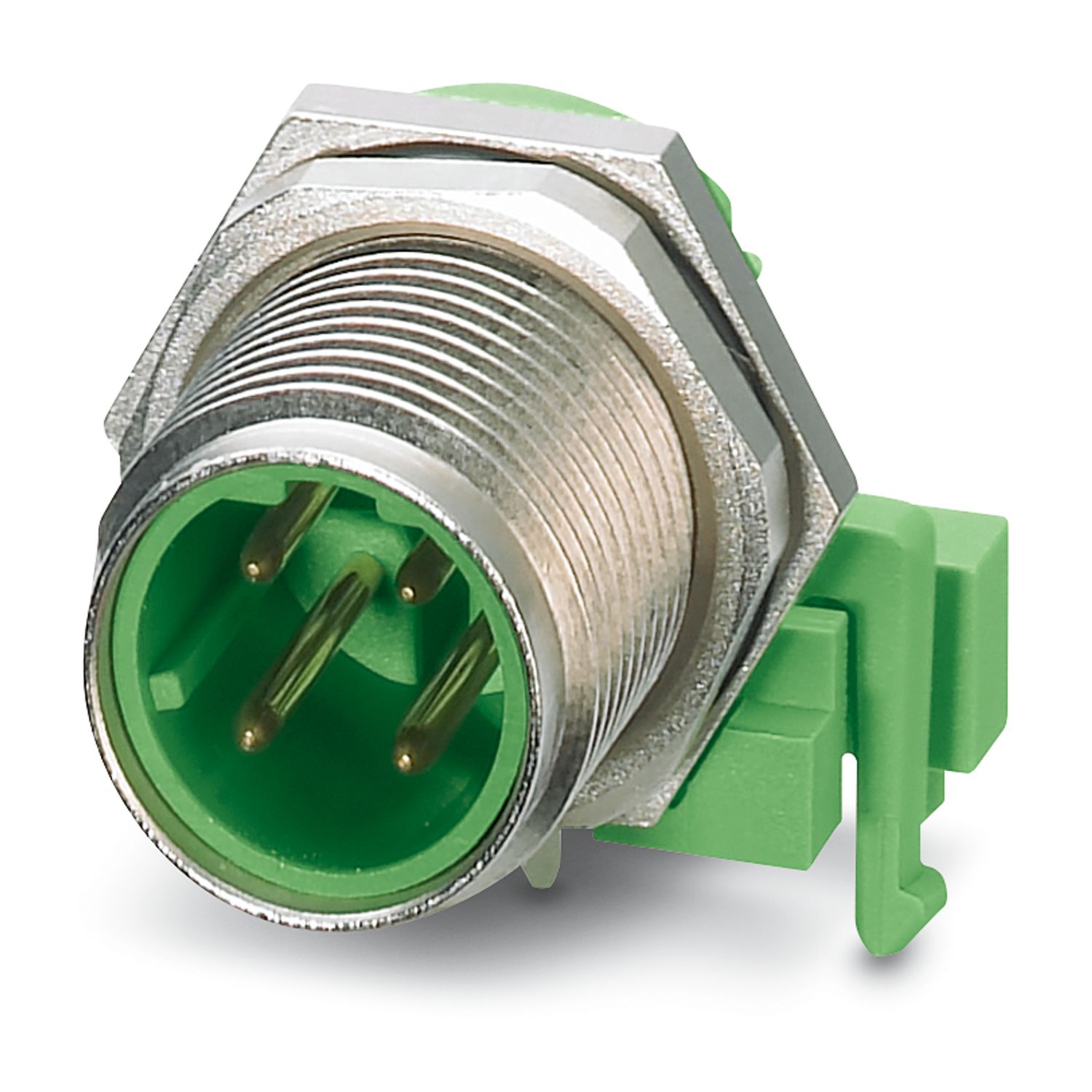

SACC-DSIV-M12MSD-4CON-L90
-
Device connector rear mounting
1434866
Bus system flush-type connector, Ethernet, 4-pos., M12, shielded, D-coded, rear/screw mounting, with angled solder connection
Product details
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
| Mounting type | Rear mounting M12 x 1 With flat nut |
| Assembly note | With flat nut |
| Product type | Circular connectors (device side) |
| Number of positions | 4 |
| Shielded | no |
| Coding | D |
| Thread type | M12 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Brass, nickel-plated |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 250 V |
| Nominal current IN | 4 A |
| Conductor connection | |
| Connection method | Solder pins |
| Contact connection type | Pin |
| Connection 1 | |
| Head design | Pin |
| Head cable outlet | angled |
| Head thread type | M12 |
| Coding | D |
| Ambient conditions | |
| Degree of protection | IP67 |
| IP67 | |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 85 °C |
| UL Type Rating | Type 4 (indoor use only) |
| Standard designation | M12 circular connector |
| Standards/specifications | according to IEC 61076-2-101 |
| Item number | 1434866 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Sales key | ABQEGI |
| Product key | ABQEGI |
| Catalog page | Page 60 (PC-2011) |
| GTIN | 4046356410779 |
| Weight per piece (including packing) | 11,47 g |
| Weight per piece (excluding packing) | 11,47 g |
| Customs tariff number | 85369010 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 27440110 |
ETIM
| ETIM 9.0 | EC003568 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 6(c) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| SCIP | 5e0d6752-675f-416f-96df-a01a27e85688 |
