VIP-CAB-FLK20/FS/NA/HF/30,0M
-
Cable
2908834

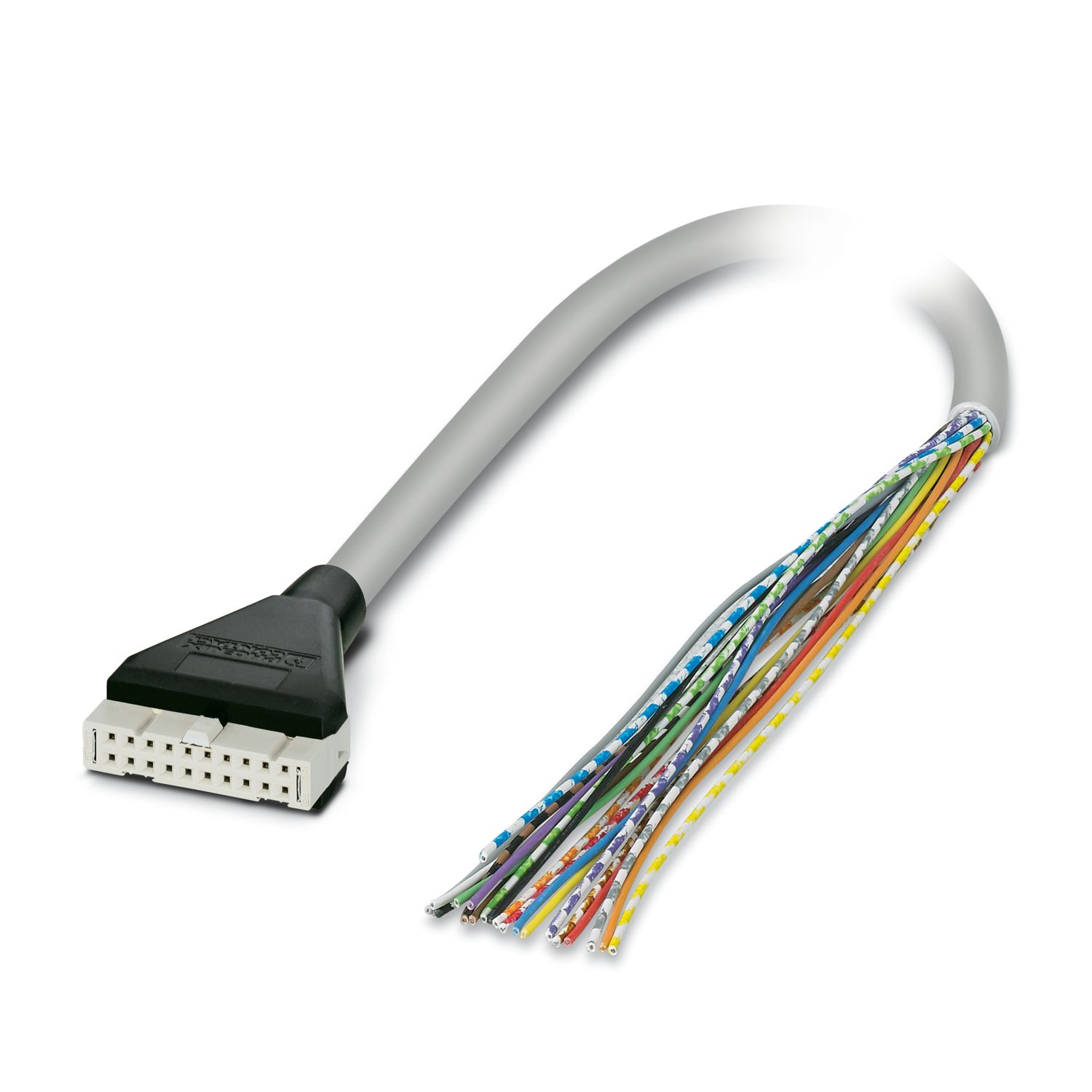

Assembled, halogen-free round cable; connection 1: IDC/FLK socket strip (1x 20-position, 180 °-out put); connection 2: Single wires (20-position); cable length: 30 m
Product details
| Product type | System cable |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
| Ambient conditions | |
| Degree of protection | IP00 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient temperature (operation) (fixed installation) | -40 °C ... 70 °C (fixed installation) |
| Ambient temperature (operation) (flexible installation) | -10 °C ... 70 °C (flexible installation) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (Per path, 50°C) | ≤ 1 A |
| Current (Per path) | ≤ 0.6 A |
| Air clearances and creepage distances | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Cable length | 30 m |
| UL AWM Style | 2464/1061 |
| Number of positions | 20 |
| Shielded | no |
| Conductor type | Assembled, halogen-free round cable |
| Conductor structure signal line | 7x 0.16 mm |
| AWG signal line | 26 |
| Conductor cross section | 20x 0.14 mm² |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| External cable diameter | 7.10 mm ±0.4 mm |
| Outer sheath, material | FR-PE, halogen-free |
| External sheath, color | gray |
| Conductor material | Tin-plated Cu litz wires |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| Insulation resistance | ≥ 20 MΩ*km (20 °C) |
| Smallest bending radius, fixed installation | 60 mm |
| Smallest bending radius, movable installation | 113 mm |
| Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
| Halogen-free | yes |
| Flame resistance | IEC 60332-1-2 (raw cable) |
| VDE 0842, Part 332-1-2 (raw cable) | |
| IEC 60332-3-22 (raw cable) | |
| Resistance to oil | can withstand occasional splashes (raw cable) |
| Cable type | Cable for one module |
| Color code: Individual wire | |
| black | IDC/FLK50 (1) IDC/FLK50 (1) |
| brown | IDC/FLK50 (2) IDC/FLK50 (2) |
| red | IDC/FLK50 (3) IDC/FLK50 (3) |
| orange | IDC/FLK50 (4) IDC/FLK50 (4) |
| yellow | IDC/FLK50 (5) IDC/FLK50 (5) |
| green | IDC/FLK50 (6) IDC/FLK50 (6) |
| blue | IDC/FLK50 (7) IDC/FLK50 (7) |
| violet | IDC/FLK50 (8) IDC/FLK50 (8) |
| gray | IDC/FLK50 (9) IDC/FLK50 (9) |
| white | IDC/FLK50 (10) IDC/FLK50 (10) |
| white-black | IDC/FLK50 (11) IDC/FLK50 (11) |
| white-brown | IDC/FLK50 (12) IDC/FLK50 (12) |
| white-red | IDC/FLK50 (13) IDC/FLK50 (13) |
| white-orange | IDC/FLK50 (14) IDC/FLK50 (14) |
| white-yellow | IDC/FLK50 (15) IDC/FLK50 (15) |
| white-green | IDC/FLK50 (16) IDC/FLK50 (16) |
| white-blue | IDC/FLK50 (17) IDC/FLK50 (17) |
| white-violet | IDC/FLK50 (18) IDC/FLK50 (18) |
| white-gray | IDC/FLK50 (19) IDC/FLK50 (19) |
| brown-black | IDC/FLK50 (20) IDC/FLK50 (20) |
| Field level | |
| Connection method | Single wires |
| Number of positions | 20 |
| Controller level | |
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 20 |
| Exit angle | 180 ° |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
| Air clearances and creepage distances | |
| Standards/regulations | DIN EN 50178 |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Item number | 2908834 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | CK2229 |
| Product key | DK2229 |
| GTIN | 4055626348070 |
| Weight per piece (including packing) | 2.200 g |
| Weight per piece (excluding packing) | 2.200 g |
| Customs tariff number | 85444290 |
| Country of origin | DE |
UNSPSC
| UNSPSC 21.0 | 26121620 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
