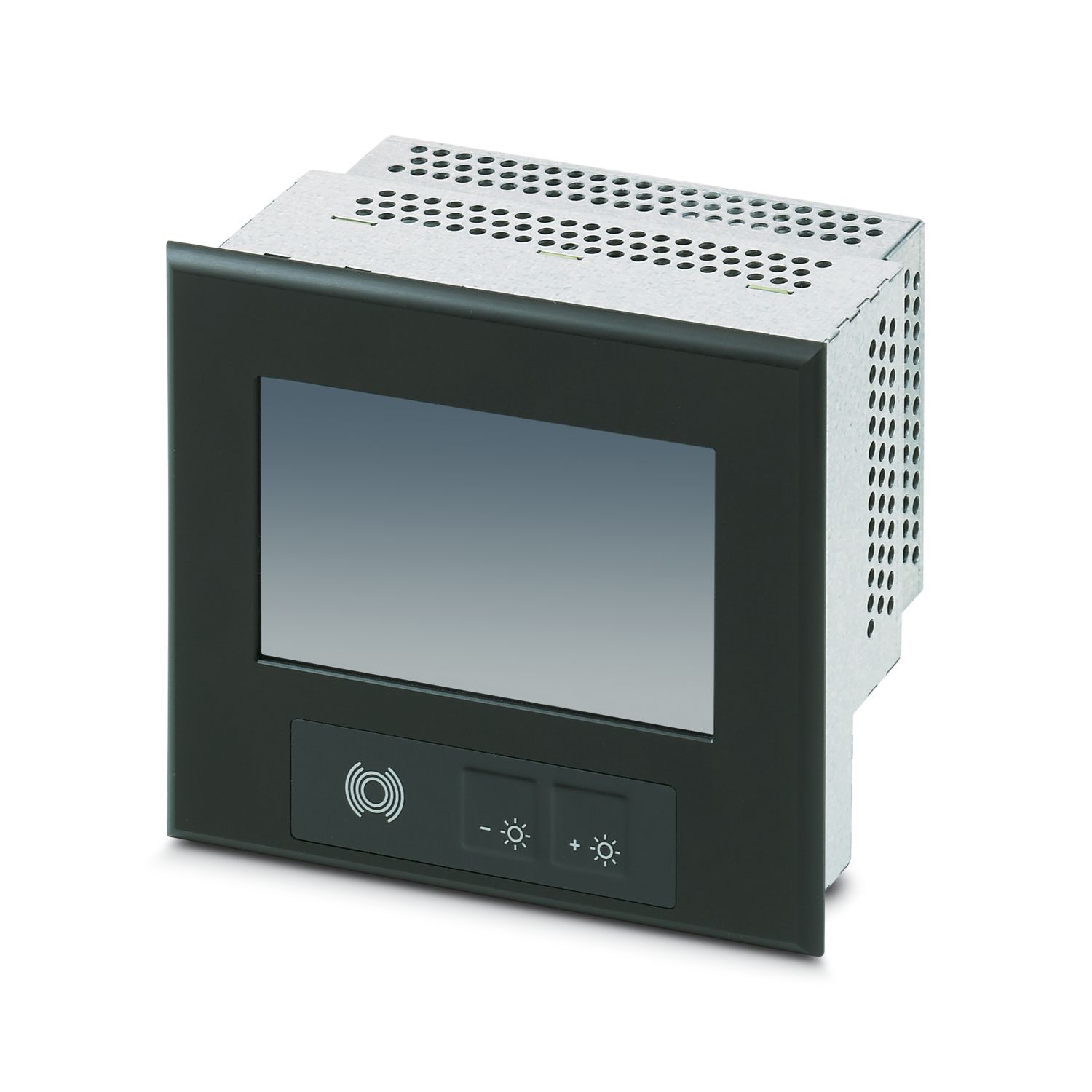

TPM 3043 - Touch panel - 2404516

Product properties

Product type	Operator panel
Application	Maritime
Computer data
Processor	Arm® Cortex®-A8, 1000 MHz
Operating system	Windows® Embedded Compact 7
RAM	512 MB LPDDR RAM
RAM		1 MB SRAM
Data storage system	NAND-Flash, 1 GB
Slots	1x SD
Front cover	Aluminum (black anodized) with dimming buttons and horn
Front cover		Aluminum (naturally anodized) without dimming buttons and horn
Display
Display type	10.92 cm / 4.3"-TFT
Screen resolution	480 x 272 Pixel(s) (WQVGA)
Touch technology	analog resistive (polyester)
Display lighting type	LED
Brightness	385 cd/m² typical (adjustable)
MTBF	40000 h
Color spectrum	262144 colors
Reading angle left	75.00 °
Reading angle right	75.00 °
Reading angle top	63.00 °
Reading angle bottom	75.00 °

Interfaces

Interfaces	2x USB Host 2.0
Optional interfaces	Without optional interface
	1 x COM (RS-232), 1 x COM (RS-422; 4-wire, full duplex)
	1 x COM (RS-232), 1 x COM (RS-422; 4-wire, full duplex), 2 x CAN
	2x CAN
Network	1 x Ethernet (10/100 Mbps), RJ45
Bus system	without bus system
Bus system	DualCAN

System properties

Electrical properties

Service life of battery	5 years (typical)
Supply
Power supply unit	24 V DC ±20 %
Typical current consumption	0.3 A
Real-time clock
Realtime clock	Yes

Mounting

Mounting type	Front mounting

Material specifications

Housing material	Steel sheet, zinc-plated

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65 (front), IP20 (back)
Ambient temperature (operation)	-20 °C ... 60 °C (Front aluminum, black anodized)
	0 °C ... 55 °C (Front aluminum, natural anodized)
Ambient temperature (storage/transport)	-30 °C ... 80 °C (Front aluminum, black anodized)
	-25 °C ... 70 °C (Front aluminum, natural anodized)
Altitude	3000 mm
Permissible humidity (operation)	20 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)	20 % ... 85 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	1g, according to EN 60068-2-6

Dimensions

External dimensions
Width / Height / Depth	140 mm / 118 mm / 5 mm (Front plate dimensions (black anodized aluminum))
		140 mm / 100 mm / 5 mm (Front plate dimensions (natural anodized aluminum))
Installation dimensions
Width / Height / Installation depth	132 mm / 110 mm / 53 mm (Mounting cutout (front aluminum, black anodized))
		132 mm / 92 mm / 42 mm (Mounting cutout (front aluminum, natural anodized))
Installation depth	71 mm, (Depth with fieldbus (front aluminum, natural anodized))
		79 mm, (Depth with fieldbus (front aluminum, black anodized))

Item number	2404516
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DRCBBC
Product key	DRCBBC
Weight per piece (including packing)	700 g
Weight per piece (excluding packing)	700 g
Customs tariff number	84714100
Country of origin	DE
