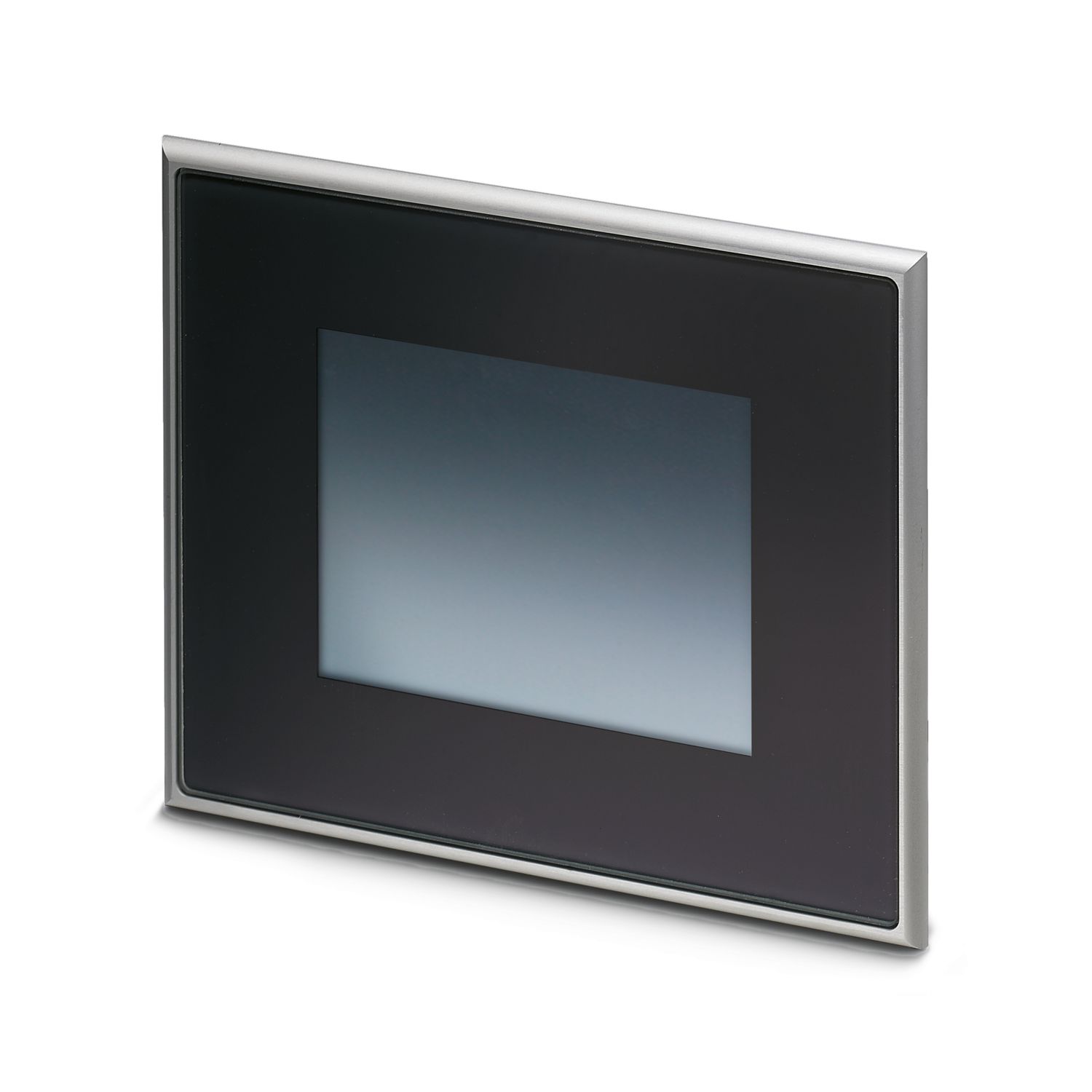

TPE057ACQ/107060020 S00008 - Touch panel - 2401200

Product properties

Product type	Operator panel
Application	Rugged
Computer data
Processor	Arm9™, 184 MHz
Operating system	Windows® CE 5.0
RAM	128 MB SDRAM
RAM		512 KB NV
Data storage system	NOR-Flash, 64 MB
Display
Display type	14.5 cm / 5.7"-TFT
Screen resolution	320 x 240 Pixel(s) (QVGA)
Touch technology	Projective-capacitive, single-touch control
Display lighting type	LED
Brightness	400 cd/m², typical (adjustable)
MTBF	40000 h
Color spectrum	65536 colors
Reading angle left	75.00 °
Reading angle right	75.00 °
Reading angle top	60.00 °
Reading angle bottom	75.00 °

Interfaces

System properties

User software	Open platform

Electrical properties

Service life of battery	5 years (typical)
Supply
Typical current consumption	0.3 A
Real-time clock
Realtime clock	Yes
Supply
Power supply unit	24 V DC ±20 %

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP67 (front), IP20 (back)
Ambient temperature (operation)	-20 °C ... 70 °C
Ambient temperature (storage/transport)	-30 °C ... 80 °C
Altitude	4000 m
Permissible humidity (operation)	5 % ... 95 % (Front)
	20 % ... 85 % (On the rear)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	1g, according to EN 60068-2-6

Dimensions

External dimensions
Width / Height / Depth	205 mm / 169 mm / 6 mm (Dimensions of the front plate)
Installation dimensions
Width / Height / Installation depth	170 mm / 134 mm / 64 mm

Item number	2401200
Packing unit	1 pc
Minimum order quantity	1 pc
Product key	DRCACA
GTIN	4055626096049
Weight per piece (including packing)	1’000 g
Weight per piece (excluding packing)	1’000 g
Country of origin	DE

TPE057ACQ/107060020 S00008 - Touch panel

2401200

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
