SAC-4P-M12MS CCL TR
-
Termination resistor
1558470
CC-Link termination resistor, 4-pos., M12 plug
Product details
| Product type | Terminal resistor |
| Number of positions | 4 |
| Coding | A |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 24 V AC |
| 24 V DC | |
| Nominal current IN | 20 mA |
| General | |

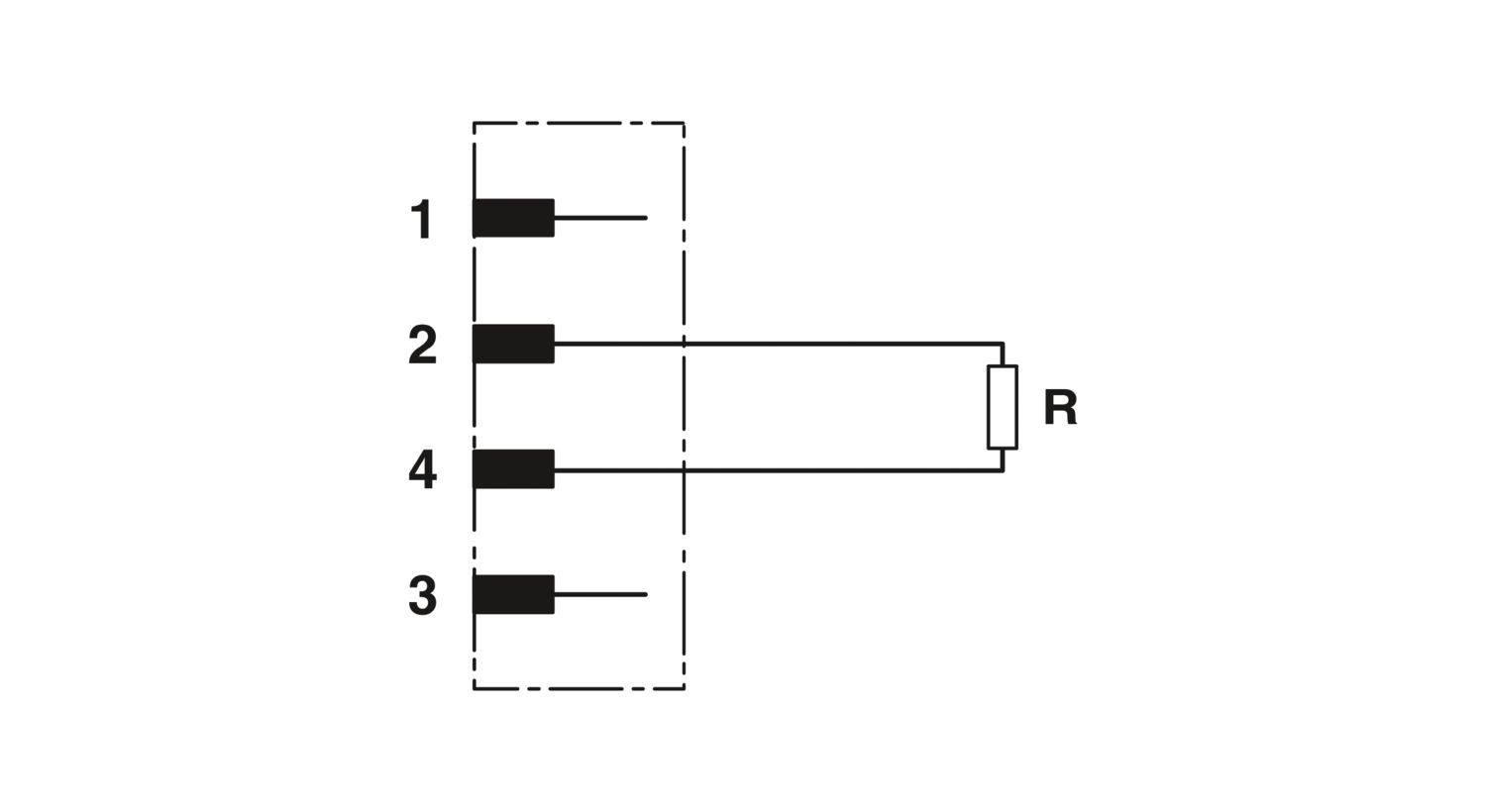

| Termination resistor | 110 Ω (Contact 2 and 4) |
| Power consumption | 0.5 W |
| Status display | no |
| Status display present | no |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Connection 1 | |
| Type | Plug straight M12 |
| Coding type | A |
| Connection 2 | |
| Type | free cable end |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 90 °C |
| Item number | 1558470 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | AF1GVX |
| Product key | AF1GVX |
| GTIN | 4046356293648 |
| Weight per piece (including packing) | 16.9 g |
| Weight per piece (excluding packing) | 11.26 g |
| Customs tariff number | 85332100 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 19070403 |
ETIM
| ETIM 9.0 | EC000448 |
UNSPSC
| UNSPSC 21.0 | 32121600 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
| EF3.0 Climate Change | |
| CO2e kg | 0.277 kg CO2e |
