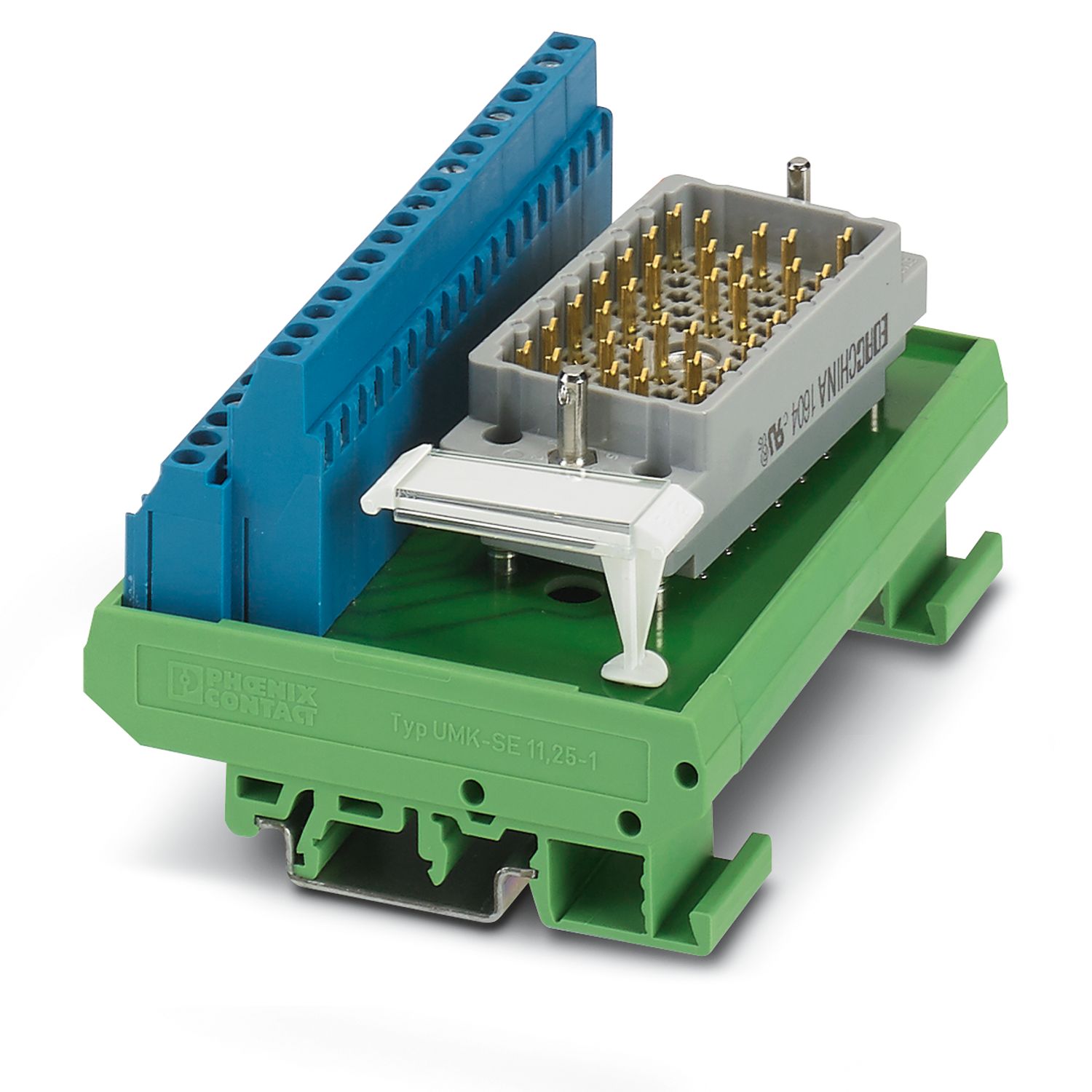

UMK- EC90/32/EX-XUL - Termination board

UMK- EC90/32/EX-XUL - Termination board

2969071

Termination board, connection 1: Screw connection, connection 2: ELCO connector 1x 32-position (Pin strip type 8016 (EEx i protection), left)

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Interface module
Number of positions	32

Electrical properties

Nominal voltage U_N	max. 30 V DC (Max. voltage between two intrinsically safe circuits: 60 V DC)
Max. current carrying capacity per branch	500 mA

Connection data

Field level
Connection in acc. with standard	IEC / EN
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	ELCO connector
Coding	1-1
Number of connections	1
Number of positions	32
Note	Pin strip type 8016 (EEx i protection), left

Signaling

Status display present	no

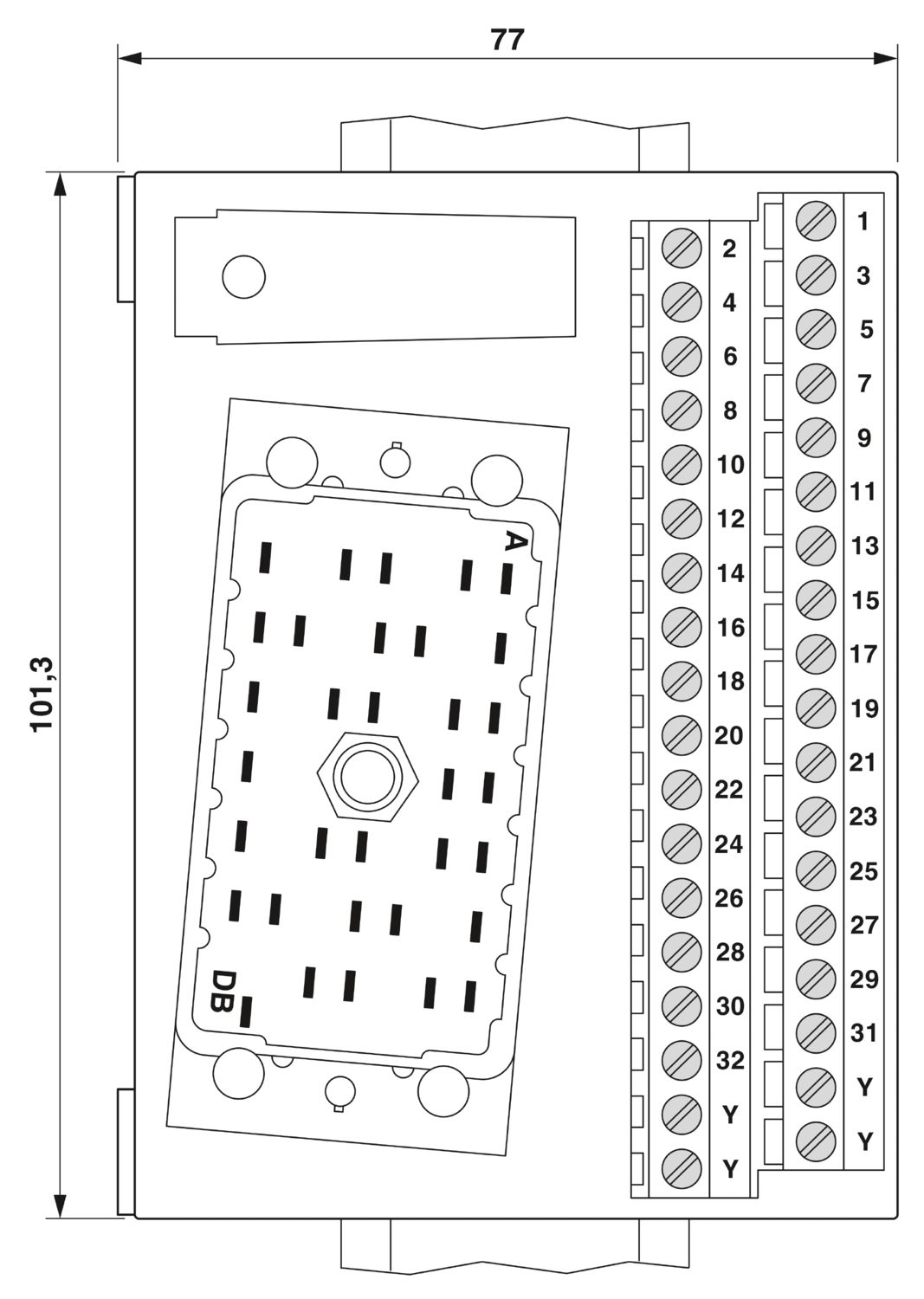

Dimensions

Item dimensions
Width	101.3 mm
Height	77 mm
Depth	58.5 mm

Material specifications

Color	green (RAL 6021)

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards and regulations

Standards/regulations	DIN EN 60079-11

Mounting

Mounting type	DIN rail mounting
Assembly note	To separate intrinsically safe and non-intrinsically safe circuits, a gap of least 50 mm must be created between the connection points, e.g., by means of partition plates or spacing.
Mounting position	any

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2969071
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK2186
Product key	DK2186
GTIN	4046356462112
Weight per piece (including packing)	227.5 g
Weight per piece (excluding packing)	227 g
Customs tariff number	85366900
Country of origin	DE

Classifications

UNSPSC

UNSPSC 21.0

39121432

Environmental product compliance

China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
