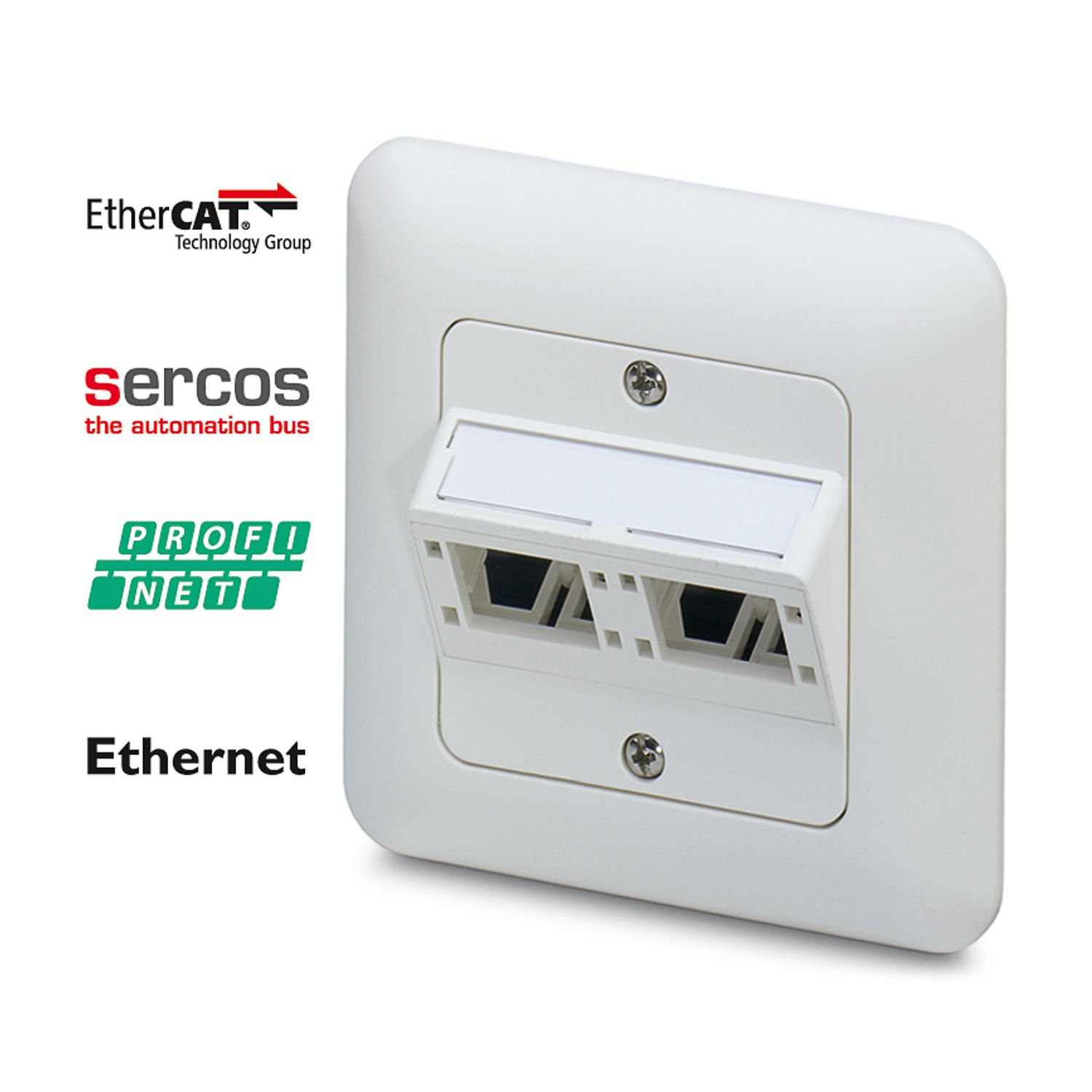

VS-TO-IW-2-F-9010
-
Terminal outlet
1653016
Terminal outlet, flush-type mounting, IP20, two slots for contact inserts with the Freenet system
Product details
| Product type | Network distributor box |
| Application | Einbauplätze für Kontakteinsätze mit Freenet-System |
| No. of cable outlets | 2 |
| Number of slots | 2 |

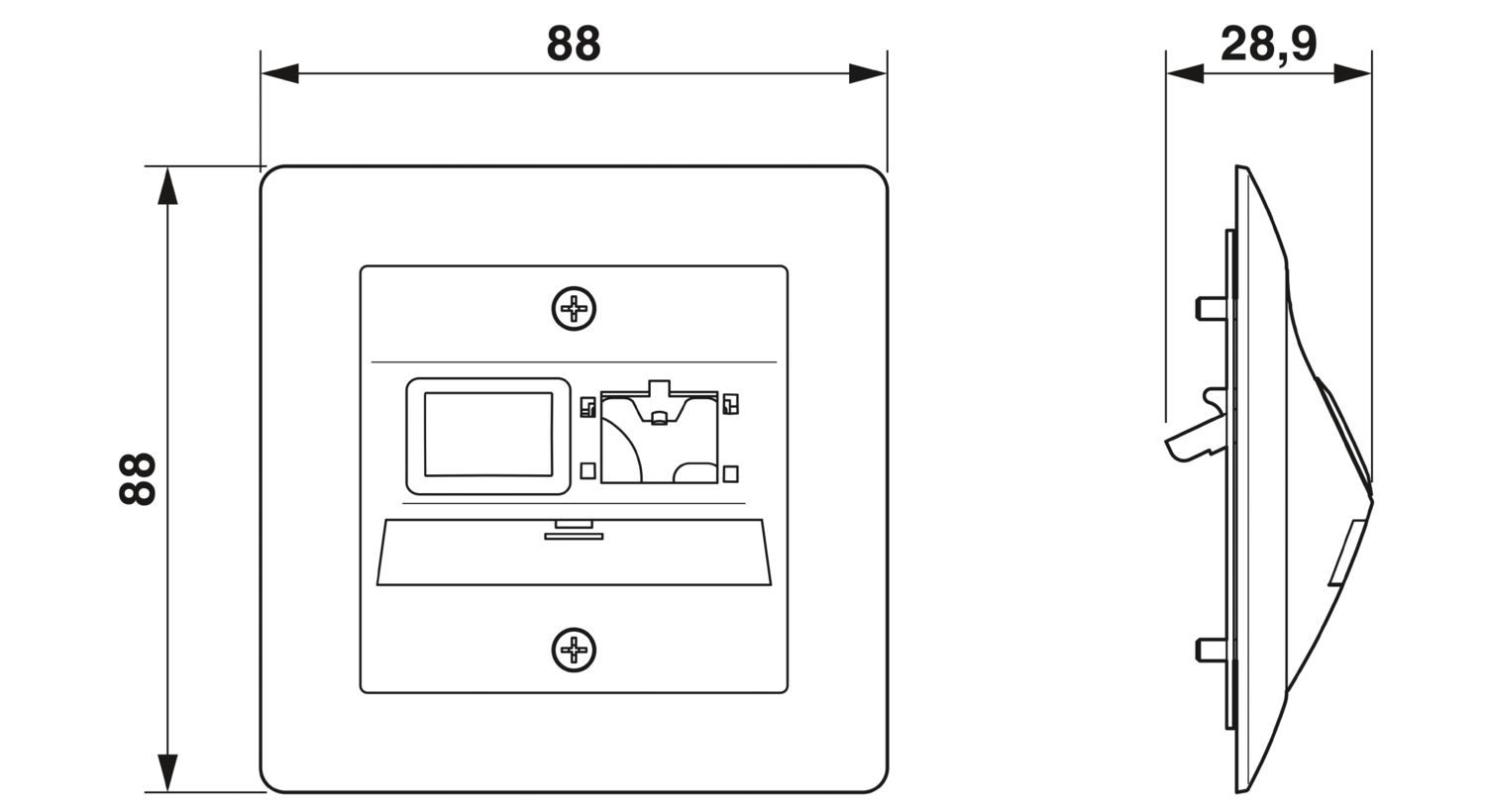

| Dimensional drawing |
|
| Width | 80 mm |
| Length | 80 mm |
| Color | pure white RAL 9010 |
| Flammability rating according to UL 94 | HB |
| Housing material | PC+ABS |
| Ambient conditions | |
| Degree of protection | IP20 |
| IP20 | |
| Ambient temperature (operation) | 5 °C ... 55 °C |
| Mounting type | UP/channel installation |
