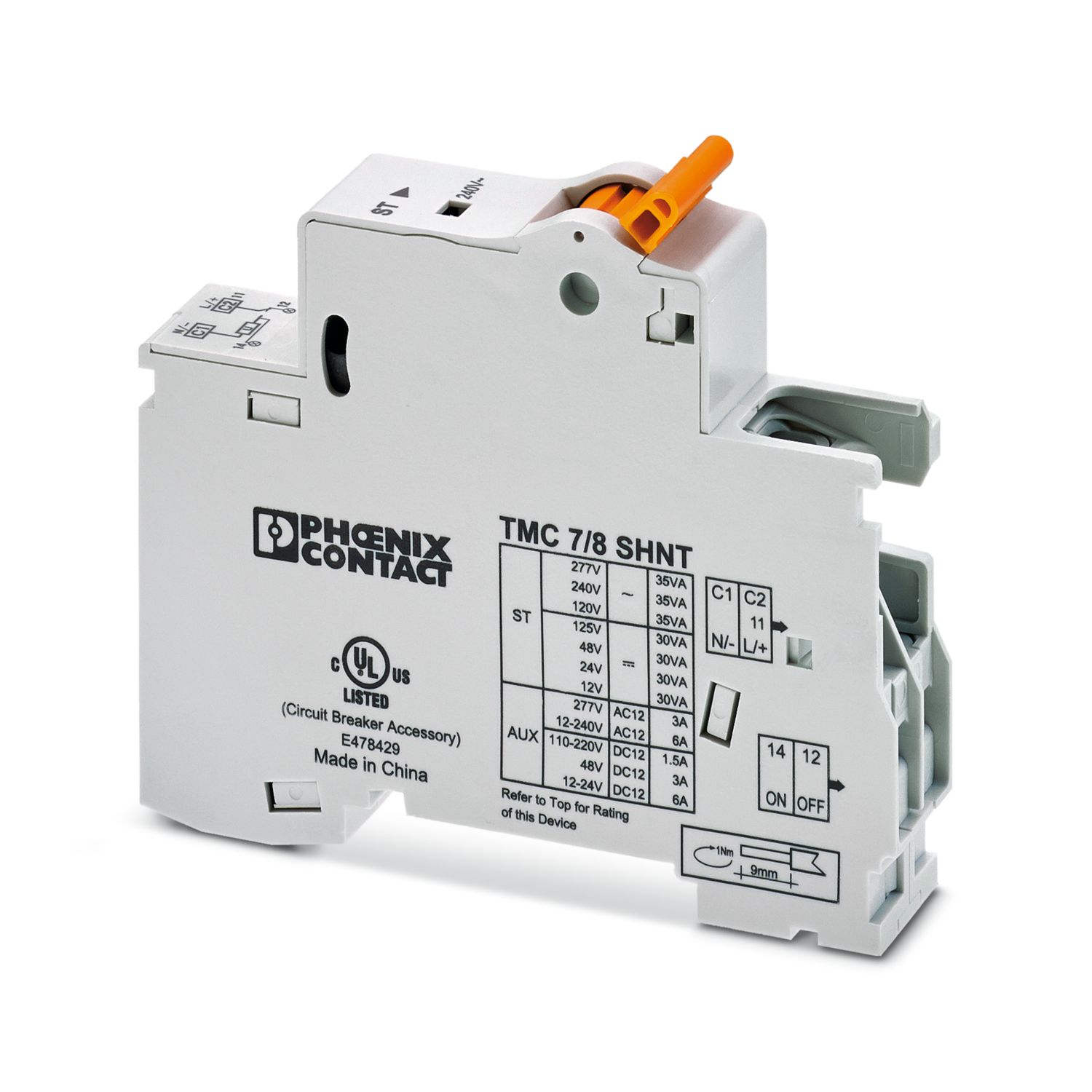

TMC 7/8 240VAC SHNT
-
Shunt trip
2908227
Shunt trip, 1-position, connection method: Screw, mounting type: Snaps on to side of circuit breaker, rated current: 6 A
Product details
| Product type | Circuit breakers |
| Product family | TMC 8 |
| Type | DIN rail module, one-piece |
| Number of positions | 1 |
| Mechanical service life | 20000 |
| General | |
| Operating voltage | 240 V AC |
| Rated current IN | 6 A |
| Tripping level | 160 V AC |
| Power dissipation | 240 W |
| Contact switching type | none |
| Load circuit | |
| Shutdown time | 10 ms |
| Tightening torque | ... 1 Nm |
| Conductor cross section rigid | 1 mm² ... 35 mm² |
| Cross section AWG | 18 ... 2 (converted acc. to IEC) |
| Conductor cross section flexible | 1 mm² ... 35 mm² |
| Connection method | Screw connection |

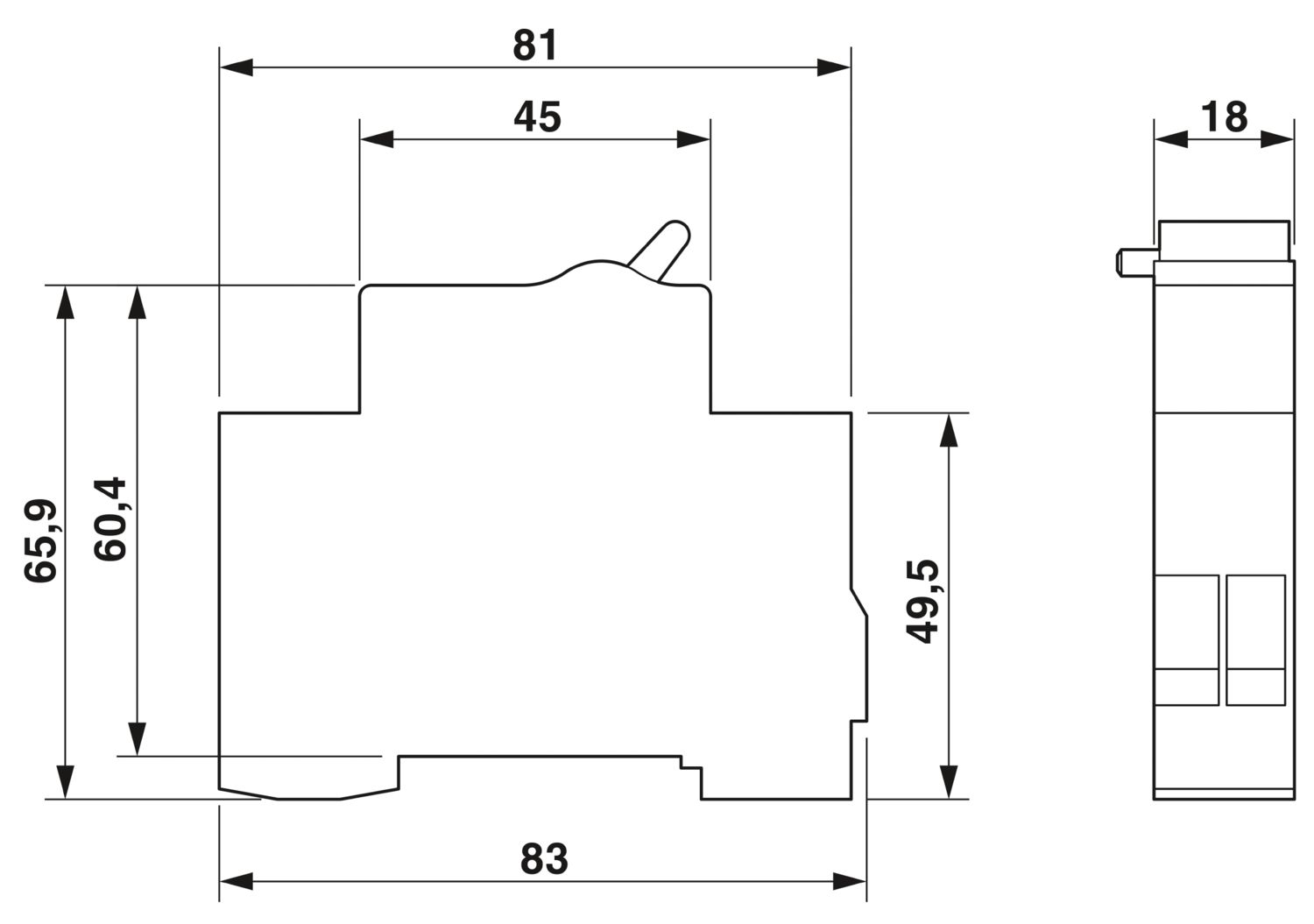

| Dimensional drawing |
|
| Width | 18 mm |
| Height | 83 mm |
| Depth | 65.7 mm |
| Color | light gray (RAL 7035) |
| Ambient conditions | |
| Ambient temperature (operation) | -35 °C ... 70 °C |
| Permissible humidity (operation) | 95 % |
| Humidity test | 48 h, 95% RH, 40°C (IEC 60068-2-78) |
| Shock (operation) | 30g (11 ms) (IEC 60068-2-11) |
| Vibration (operation) | ±0.38 mm (10-57 Hz), 5g (57...500 Hz) (IEC 60068-2-6, Fc, sine) |
| Mounting type | Snaps on to side of circuit breaker |
