M23 HYBRID_CONTACT-SAMPLE-SET - Sample set

1623252

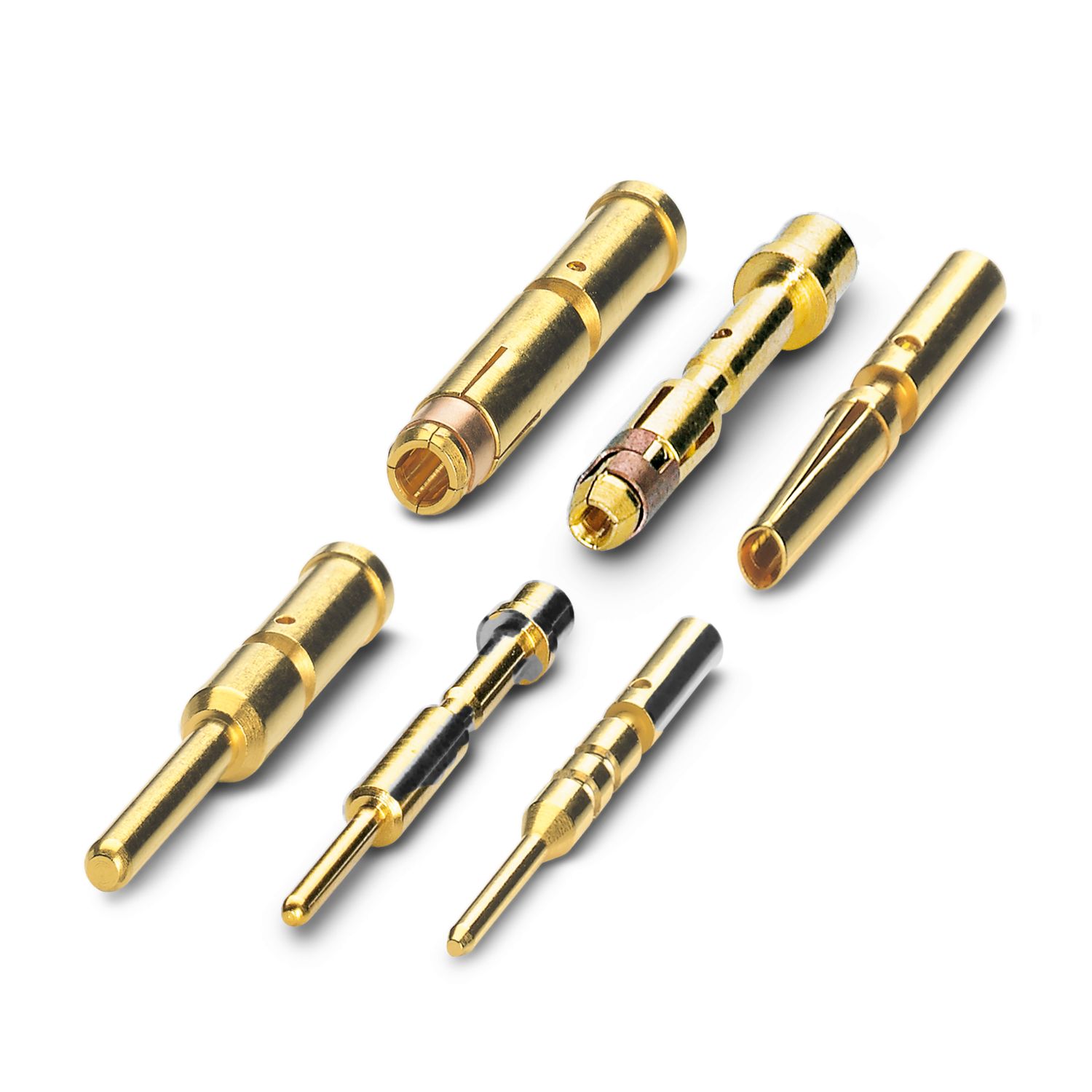

Sample set consisting of 4x Ø 1.0 mm, 4x Ø 0.8 mm, 5x Ø 2.0 mm socket and pin contacts for M23 hybrid connectors. Contacts included: 1621573, 1618464, 1621577, 1621575, 1618458, 1621580

Product details

Technical data

Product properties

Product type	Crimp contact
Series	SH

Electrical properties

Contact
Contact diameter	2 mm
Min. cross section	1 mm²
Max. cross section	2.5 mm²
Contact
Contact diameter	0.8 mm
Min. cross section	0.34 mm²
Max. cross section	0.5 mm²
Contact
Contact diameter	1 mm
Min. cross section	0.25 mm²
Max. cross section	1 mm²

Commercial data

Item number	1623252
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	ABRJBA
Product key	ABRJBA
GTIN	4055626139661
Weight per piece (including packing)	22.7 g
Weight per piece (excluding packing)	14.305 g
Customs tariff number	85389000
Country of origin	DE

Classifications

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
