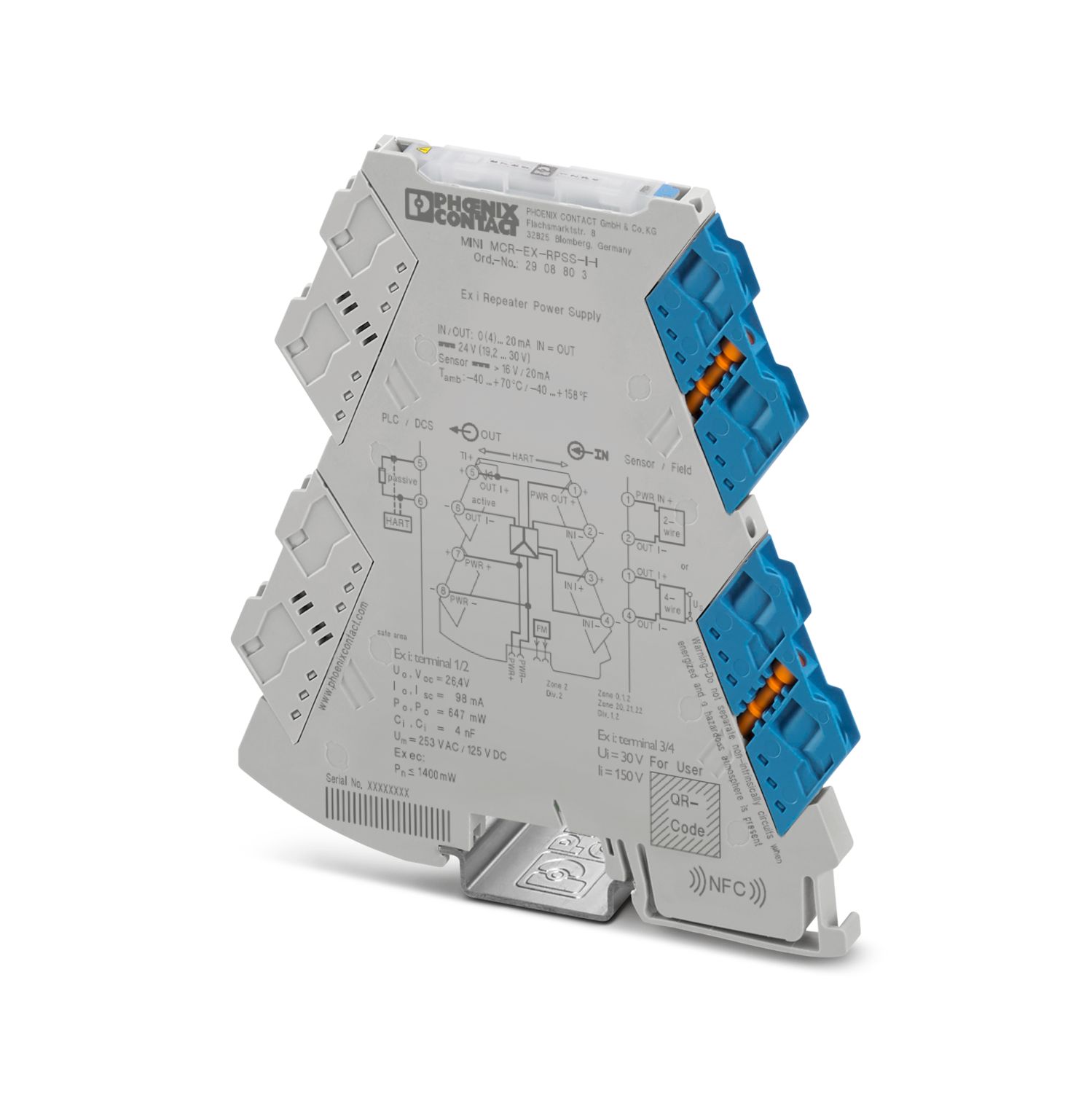

MINI MCR-EX-RPSS-I-I - Repeater power supply - 2908803

Product details

Technical data

Product properties

Product type	Repeater power supply
Product family	MINI Analog Pro
Application	Analog IN

Electrical properties

Electrical isolation between input and output	yes
Line monitoring	Line fault detection
Signal transmission behavior	In = Out
Step response (10-90%)	≤ 10 ms
Maximum temperature coefficient	≤ 0.01 %/K
Maximum transmission error	≤ 0.1 %
Reverse polarity protection	yes
Electrical isolation
Overvoltage category	II (≤ 5000 m)
Pollution degree	2 (≤ 5000 m)
Electrical isolation Input/output/power supply IEC/EN 61010-1
Standards/regulations	IEC/EN 61010-1
Rated insulation voltage	300 V_rms
Test voltage	2.5 kV AC (50 Hz, 60 s)
Insulation	Double/reinforced insulation
Electrical isolation Input/output, power supply IEC/EN 60079-11
Standards/regulations	IEC/EN 60079-11
Rated insulation voltage	253 V_rms
Electrical isolation Input/output/power supply IEC/EN 60079-7
Standards/regulations	IEC/EN 60079-7
Rated insulation voltage	251 V_rms
Supply
Nominal supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC
Power consumption	≤ 1.4 W

Input data

Signal: Repeater power supply operation
Description of the input	Active current input, intrinsically safe
Current input signal	4 mA ... 20 mA
Transmitter supply voltage	> 16 V (20 mA)
	> 15.75 V (21 mA)
Signal: Signal conditioner operation
Description of the input	Passive current input, intrinsically safe
Current input signal	4 mA ... 20 mA
	0 mA ... 20 mA
Voltage drop	< 4 V DC (20 mA)

Output data

Signal: Repeater power supply operation
Output description	Current output
Number of outputs	1
Current output signal	4 mA ... 20 mA
Load/output load current output	≤ 450 Ω (20 mA)
	≤ 420 Ω (21 mA)
Open-circuit voltage	≤ 15 V DC
Short-circuit-proof	yes
Signal: Signal conditioner operation
Output description	Current output
Number of outputs	1
Current output signal	4 mA ... 20 mA
	0 mA ... 20 mA
Load/output load current output	≤ 450 Ω (20 mA)
	≤ 420 Ω (21 mA)

Connection data

Connection method	Screw connection
Stripping length	10 mm
Screw thread	M3
Conductor cross-section rigid	0.2 mm² ... 1.5 mm² (with ferrule)
	0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross-section flexible	0.14 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12 (flexible)
Tightening torque	0.5 Nm ... 0.6 Nm

Ex data

Ex installation (EPL)	Gc
Ex installation (EPL)		Div. 2
Ex i circuits (EPL)	Ga
		Da
		Ma
		Div. 1
Safety data: Repeater power supply operation
Max. internal inductance L_i	negligible
Max. internal capacitance C_i	4 nF
Max. output voltage U_o	26.4 V
Max. output current I_o	98 mA
Max. output power P_o	647 mW
Safety-related maximum voltage U_m	253 V AC
Safety-related maximum voltage U_m		125 V DC
IIA/I (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	10 mH / 2.48 µF
IIB/III (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	4 mH / 730 nF
IIC (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	2 mH / 92 nF
IIA/I (mixed circuit): Max. external inductivity L_o / Max. external capacitance C_o	10 mH / 496 nF, 1 mH / 556 nF, 500 µH / 656 nF, 200 µH / 836 nF, 100 µH / 996 nF
IIB/III (mixed circuit): Max. external inductivity L_o / Max. external capacitance C_o	4 mH / 306 nF, 1 mH / 386 nF, 500 µH / 466 nF, 200 µH / 616 nF, 100 µH / 736 nF
IIC (mixed circuit): Max. external inductivity L_o / Max. external capacitance C_o	1.4 mH / 45 nF, 1 mH / 52 nF, 500 µH / 69 nF, 200 µH / 92 nF
Safety data: Signal conditioner operation
Input voltage U_i	30 V
Input current I_i	150 mA
Max. internal inductance L_i	negligible
Max. internal capacitance C_i	4 nF
Safety-related maximum voltage U_m	253 V AC
Safety-related maximum voltage U_m		125 V DC
IIA/I (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	10 mH / 2.48 µF
IIB/III (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	4 mH / 730 nF
IIC (simple circuit): Max. external inductivity L_o / Max. external capacitance C_o	2 mH / 92 nF
IIA/I (mixed circuit): Max. external inductivity L_o / Max. external capacitance C_o	10 mH / 496 nF, 1 mH / 556 nF, 500 µH / 656 nF, 200 µH / 836 nF, 100 µH / 996 nF
IIB/III (mixed circuit): Max. external inductivity L_o / Max. external capacitance C_o	4 mH / 306 nF, 1 mH / 386 nF, 500 µH / 466 nF, 200 µH / 616 nF, 100 µH / 736 nF
IIC (mixed circuit): Max. external inductivity L_o / Max. external capacitance C_o	1.4 mH / 45 nF, 1 mH / 52 nF, 500 µH / 69 nF, 200 µH / 92 nF

Interfaces

Connection method	S-PORT
Data communication (bypass)
Protocols supported	HART-transparent
Limit frequency (3 dB)	≥ 1.75 kHz

Signaling

Status display	Green LED (supply voltage)

Dimensions

Width	6.2 mm
Height	109.81 mm
Depth	119.2 mm

Material specifications

Color	gray (RAL 7042)
Housing material	PBT

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 70 °C (Any mounting position)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (at 25 °C, non-condensing)
Shock (operation)	15g (DIN EN 60068-2-27)
Vibration (operation)	5g (DIN EN 60068-2-6)
Altitude range (IEC/EN 61010-1)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	300 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	300 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	150 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 60079-11)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Safety-related maximum voltage U_m	121 V AC
Safety-related maximum voltage U_m		110 V DC
Rated insulation voltage	150 V_rms (Input/output, power supply)
Altitude range (IEC/EN 60079-11)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Safety-related maximum voltage U_m	33 V AC/DC
Rated insulation voltage	60 V_rms (Input/output, power supply)
Altitude range (IEC/EN 60079-11)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Safety-related maximum voltage U_m	33 V AC/DC
Rated insulation voltage	60 V_rms (Input/output, power supply)
Altitude range (IEC/EN 60079-7)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	162 V_rms (Input/output/power supply)
Altitude range (IEC/EN 60079-7)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	60 V_rms (Input/output/power supply)
Altitude range (IEC/EN 60079-7)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	60 V_rms (Input/output/power supply)

Approvals

CE
Certificate	CE-compliant
ATEX
Identification	 II (1) G [Ex ia Ga] IIC
		 II (1) D [Ex ia Da] IIIC
		 II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
		 I (M1) [Ex ia Ma] I
Certificate	BVS 23 ATEX 006 X
IECEx
Identification	[Ex ia Ga] IIC
		[Ex ia Da] IIIC
		Ex ec [ia Ga] IIC T4 Gc
		[Ex ia Ma] I
Certificate	IECEx BVS 23.0003X
CCC / China-Ex
Identification	[Ex ia Ga] IIC
		[Ex ia Da] IIIC
		Ex ec [ia Ga] IIC T4 Gc
Certificate	2023122310117250
UL, USA/Canada
Identification	UL 61010-2-201 Listed
		Class I, Div. 1, Groups A, B, C, D
		Class II, Div. 1, Groups E, F, G
		Class III, Div. 1
		Class I, Zone 0, 1, 2, Groups IIC, IIB, IIA
		Class I, Div. 2, Groups A, B, C, D T4
		Class I, Zone 2
		AEx ec [ia Ga] IIC T4 Gc; AEx ec [ia IIIC Da] IIC T4 Gc
		Ex ec [ia Ga] IIC T4 Gc X; Ex ec [ia IIIC Da] IIC T4 Gc X
		Class I, Zone 0, [AEx ia Ga] IIC, [Ex ia Ga] IIC X
		Class I, Zone 20, [AEx ia Da] IIIC, [Ex ia Da] IIIC X
Certificate	, C.D.-No 097285872
Shipbuilding approval
Certificate	DNV TAA00003FZ
Safety Integrity Level (SIL, IEC 61508)
Identification	3
Note	single-channel
INMETRO
Identification	[Ex ia Ma] I
		[Ex ia Ga] IIC
		[Ex ia Da] IIIC
		Ex ec [ia Ga] IIC T4 Gc
Certificate	DNV 23.0186 X
Shipbuilding data
Temperature	B
Humidity	B
Vibration	A
EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board

EMC data

Electromagnetic compatibility	Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21
Low Voltage Directive	Conformance with Low Voltage Directive
Noise immunity	EN 61000-6-2
Noise immunity	EN 61326-3-2
Noise emission
Standards/regulations	EN 61000-6-4

Mounting

Mounting type	DIN rail mounting
Mounting position	any

Commercial data

Item number	2908803
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK1221
Product key	DK1221
GTIN	4055626362977
Weight per piece (including packing)	128 g
Weight per piece (excluding packing)	118.5 g
Customs tariff number	85437000
Country of origin	DE

Classifications

Approvals

Environmental product compliance

ECLASS-13.0	27210120
ECLASS-15.0	27210120

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	8556a039-e5e2-453e-befe-1c2cb65d5a2a
