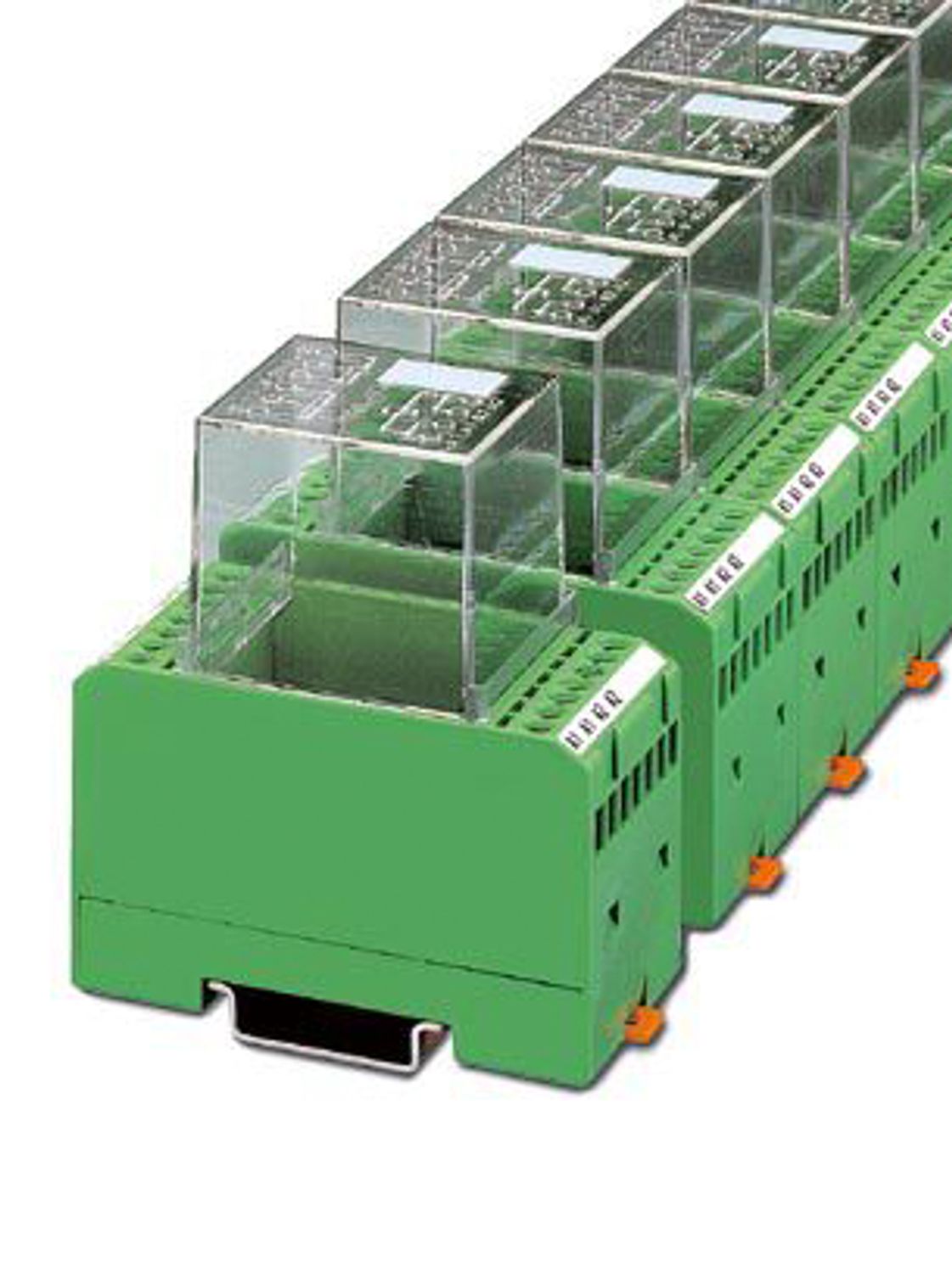

Relay module, with plug-in base for KAMMRELAIS® size 2, contact: F 104, 2 changeover contacts
Product details
Product type
Relay socket
Insulation characteristics
Overvoltage category
III
Pollution degree
2
Nominal input voltage UN
230 V AC
230 V AC
Input side
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Output side
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Width
37.5 mm
Height
75 mm
Depth
82.5 mm
Color
green (RAL 6021)
Insulating material
PC-F
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0109-11, draft
DIN EN 50178/VDE 0160
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
Item number
2946706
Packing unit
5 pc
Minimum order quantity
1 pc
Product key
DK6131
GTIN
4017918082345
Weight per piece (including packing)
90.86 g
Weight per piece (excluding packing)
90.86 g
Country of origin
DE
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
