WP-GA HF IP69K M16 BK - Protective hose screw connection

3240911

Cable gland, metric thread, IP68/69k protection, angled

Product details

Technical data

Product properties

Product type	Protective hose screw connection
Application	Cable gland
Type of the screw connection	Conduit adapter
Type	Outer thread
Cable outlet	angled
Thread type	metric

Dimensions

Width	23 mm
Height	42 mm
Length	40.5 mm
Diameter	24.5 mm

Material specifications

Material	PA 6
Flammability rating according to UL 94	V2
Material for screw connection	PA
Components	free from silicone, halogen, and cadmium

Cable/line

Halogen-free	yes

Mechanical properties

Mechanical data
Type of the screw connection	Conduit adapter

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP68
	IP69K
Ambient temperature (operation)	-40 °C ... 120 °C

Commercial data

Item number	3240911
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	AF7DSA
Product key	AF7DSA
GTIN	4046356710183
Weight per piece (including packing)	11.06 g
Weight per piece (excluding packing)	11.06 g
Customs tariff number	39174000
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

ECLASS-13.0	27430311
ECLASS-15.0	27430311

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

WP-GA HF IP69K M16 BK - Protective hose screw connection

3240911

Product details

ECLASS

ETIM

UNSPSC

UL Recognized

LR

VDE approval of drawings

Compatible products

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

WP-GA HF IP69K M16 BK - Protective hose screw connection 3240911

Product details

ECLASS

ETIM

UNSPSC

Compatible products

WP-PA HF 15,8 BK - Protective hose 3240682

WP-PA HF-HB 15,8 BK - Protective hose 3240840

WP-BASE A M16 - Protective hose fixing bracket 3241083

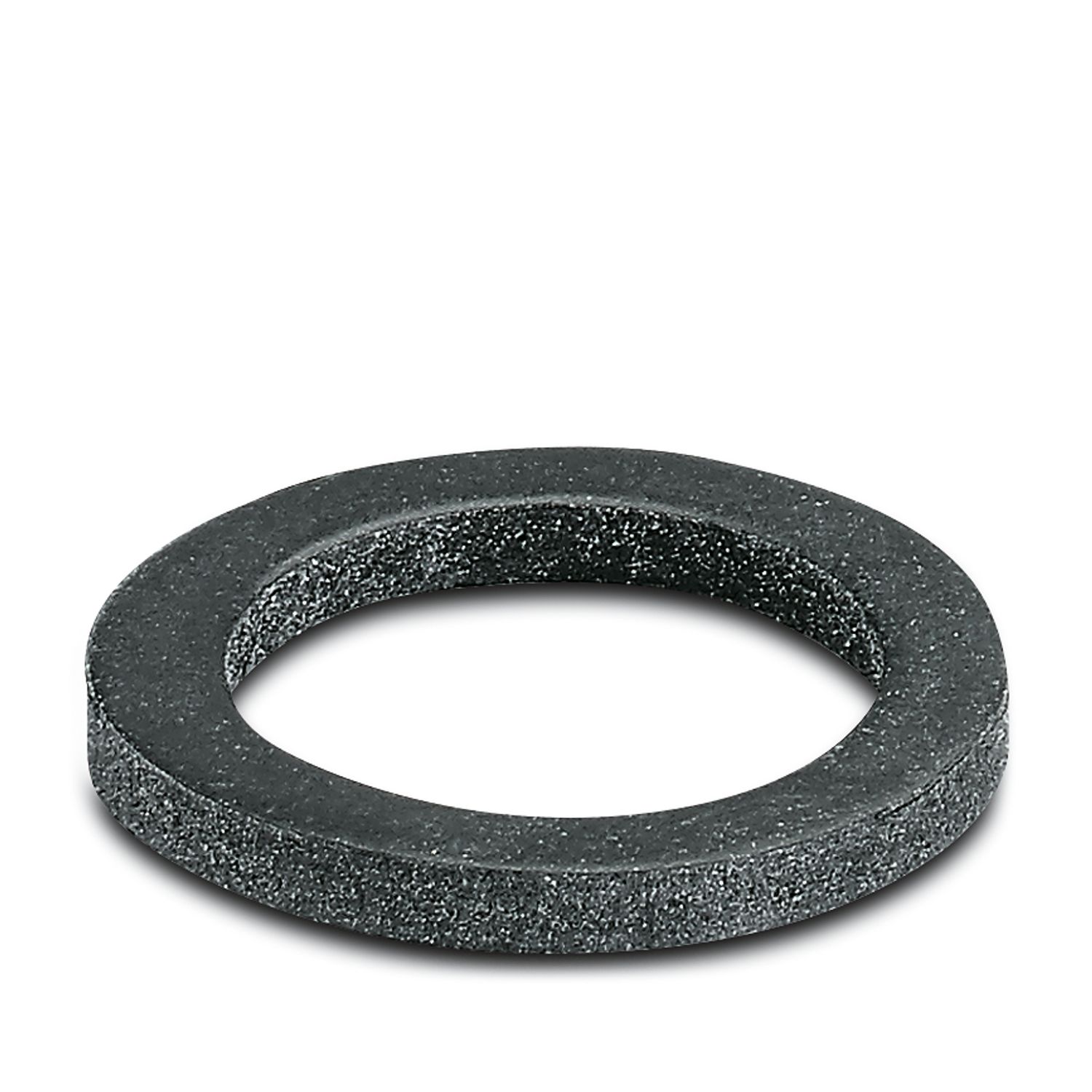

WP-FS IP68 M16 - Flat gasket 3241161
