HC-M-PN3-3,00-BU-V
-
Pneumatic contact
1663556
Pneumatic socket with valve, for HC-M-PN3 module, internal hose diameter of 3.0 mm
Product details
| Product type | Pneumatic contact |
| Series | HC-M-03-PN |
| Type | Individual female contact |
| Integrated valve | Yes |
| Connection technology | |
| Connection technology | Hose connection |

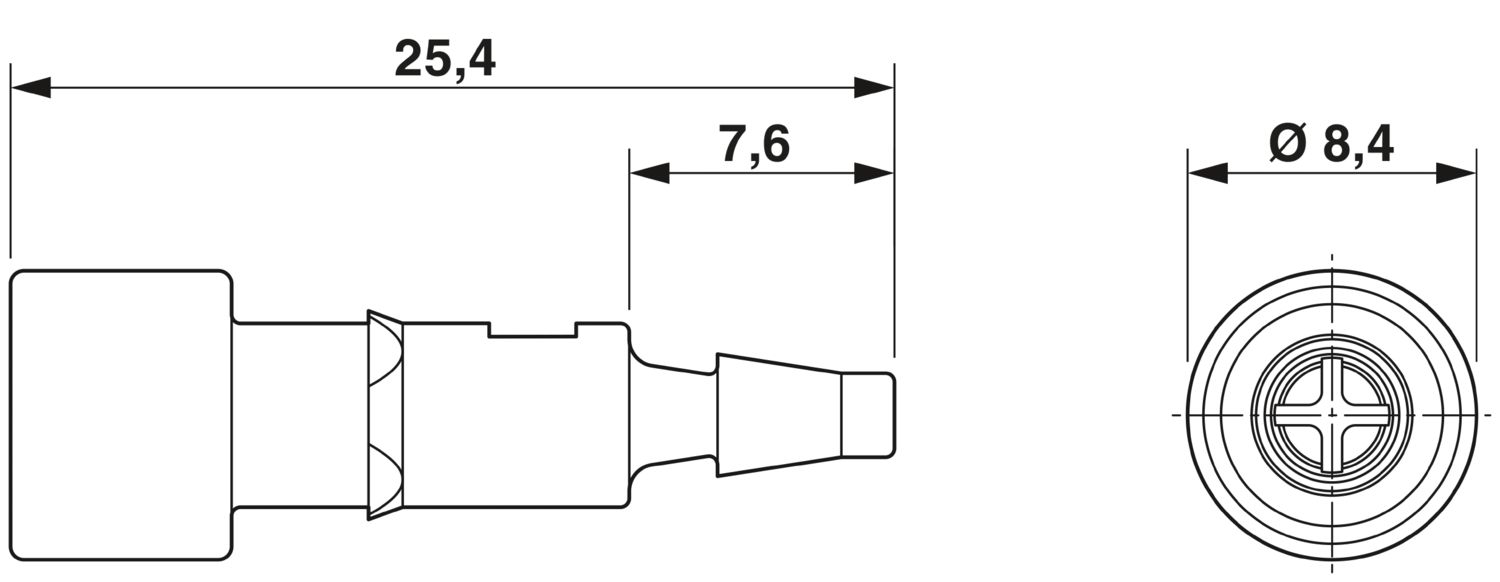

| Dimensional drawing |
|
| Width | 8.2 mm |
| Height | 8.2 mm |
| Depth | 25.5 mm |
| Diameter | 3 mm |
| Mechanical characteristics | |
| Internal diameter of pressure hose connection | 3 mm |
| Contact diameter | 5.2 mm |
| Material Valve | Polypropylene |
| Seal material | Buna-N |
| Contact material | Delrin acetal |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Operating pressure | 8.00 bar |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
