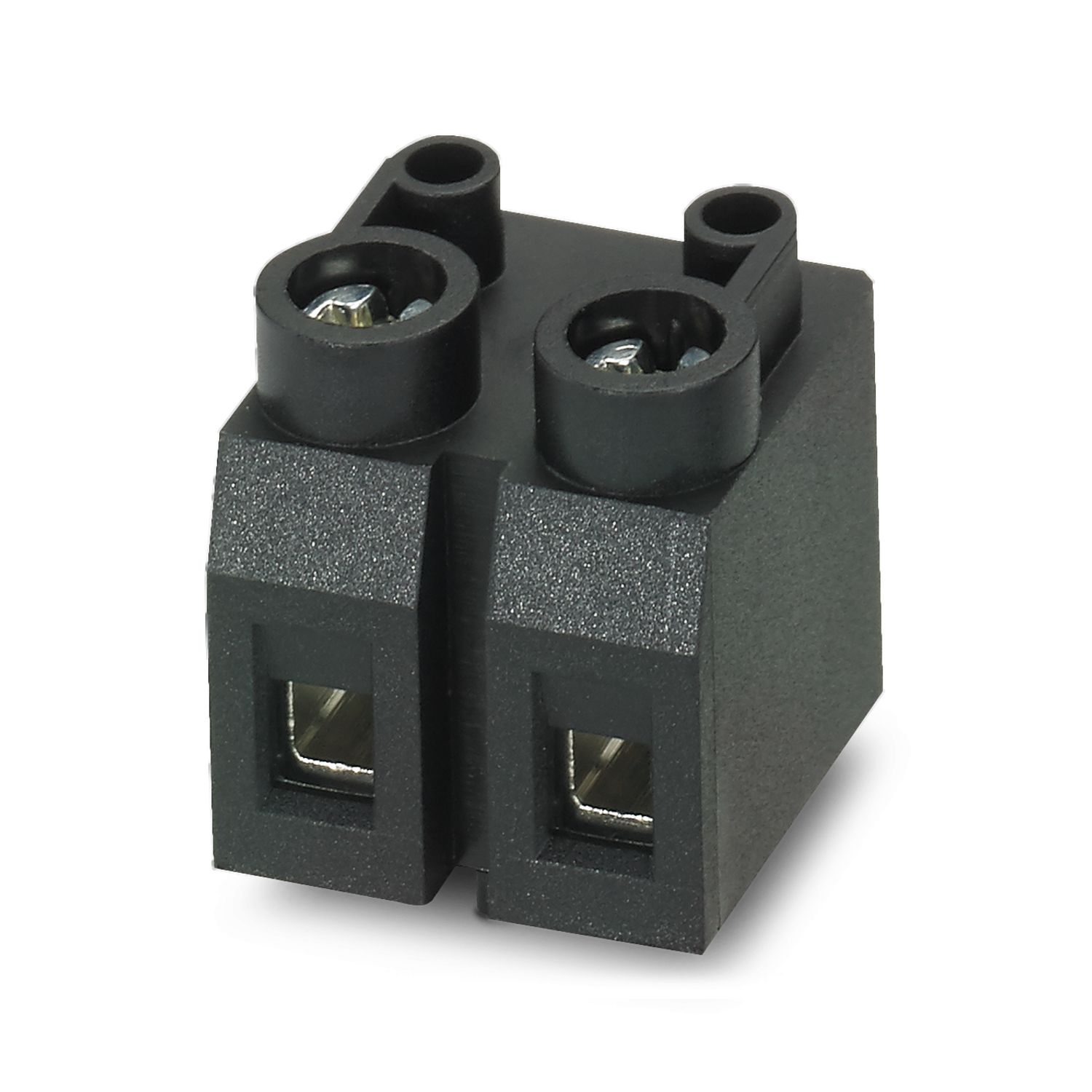

PTE 1,5/ 2-7,5 EU H1L
-
PCB terminal block
1009839
Printed circuit board terminal, number of rows: 1, number of positions per row: 2, product range: PTE 1,5, pitch: 7.5 mm, connection method: Screw connection with tension sleeve, screw head form: H1L Slotted Phillips recess, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 3 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard
Product details
| Product type | Printed circuit board terminal |
| Product family | PTE 1,5 |
| Product line | COMBICON Terminals S |
| Number of positions | 2 |
| Pitch | 7.5 mm |
| Number of rows | 1 |
| Pin layout | Linear pinning |
| Solder pins per potential | 1 |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Material data - housing | |
| Color (Housing) | black (9005) |

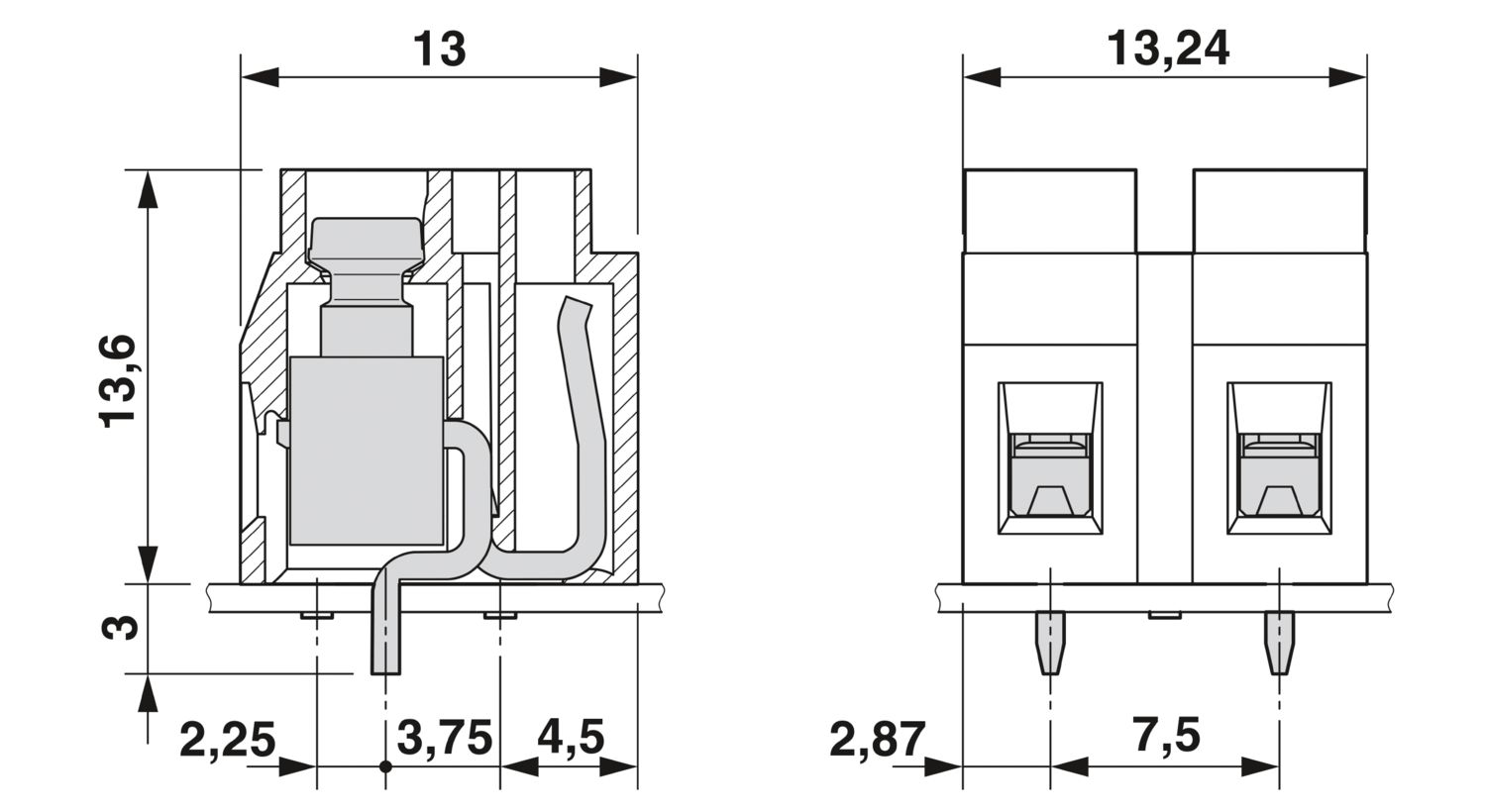

| Dimensional drawing |
|
| Pitch | 7.5 mm |
| Width [w] | 13.24 mm |
| Height [h] | 16.6 mm |
| Length [l] | 13 mm |
| Installed height | 13.6 mm |
| Solder pin length [P] | 3 mm |

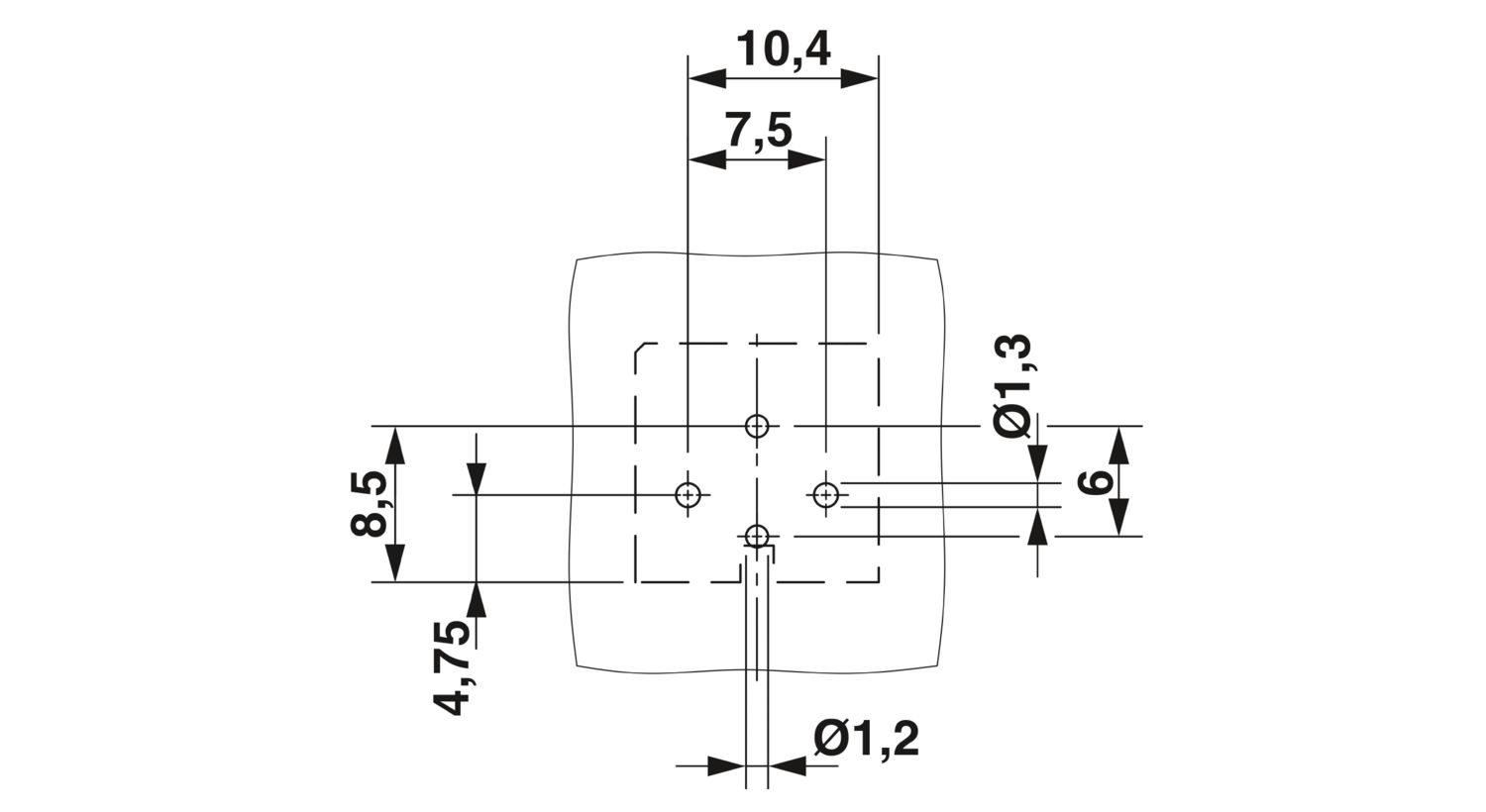

| PCB design | |
| Hole diameter | 1.3 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Type of packaging | packed in cardboard |
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
