SAC-12P- 5,0-PUR/M12FS MC - Master cable

SAC-12P- 5,0-PUR/M12FS MC - Master cable

1530786

Master cable, number of positions: 12, coding: A, status display: no, Universal

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Master cable, assembled
Number of positions	12
Coding	A

Electrical properties

Nominal voltage U_N	30 V AC
Nominal voltage U_N		30 V DC

Connection data

Connection method	Fixed connection

Signaling

Status display present	no

Material specifications

Flammability rating according to UL 94	HB
Contact material	CuSn
Contact surface material	Au

Connector

Connection 1
Coding type	A

Cable/line

Number of positions	10
Shielded	no
Conductor cross section	8x 0.14 mm² (Signal)
Conductor cross section		2x 0.25 mm² (Supply)
Outer sheath, material	PUR
External sheath, color	black RAL 9005

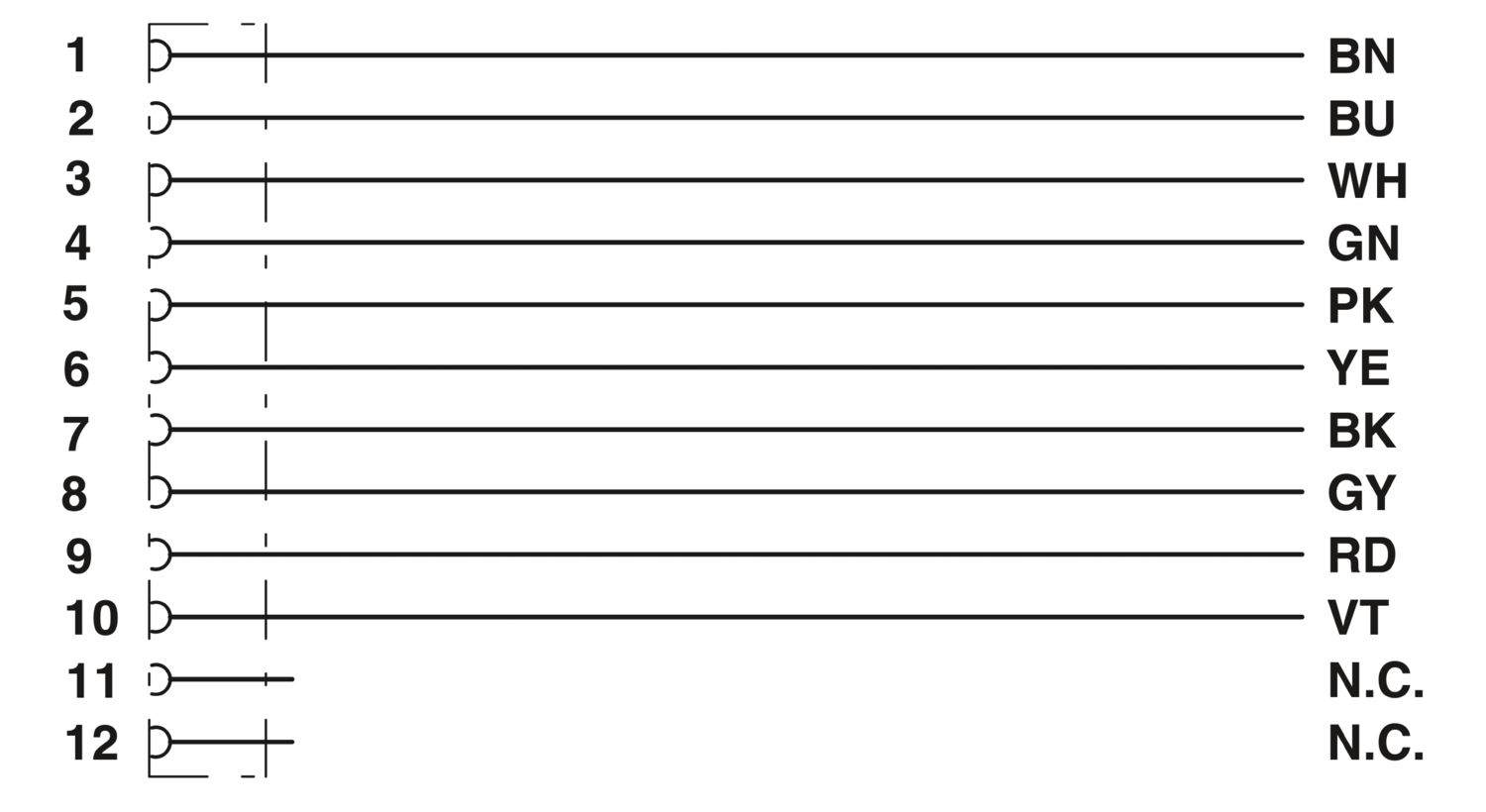

Single wire, color	brown, blue, white, green, pink, yellow, black, gray, red, violet
Ambient temperature (operation)	-40 °C ... 80 °C (cable, fixed installation)
Ambient temperature (operation)		-25 °C ... 80 °C (Cable, flexible installation)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP68
Ambient temperature (operation) (Cable, fixed installation)	-40 °C ... 80 °C (cable, fixed installation)
Ambient temperature (operation) (Cable, flexible installation)	-25 °C ... 80 °C (Cable, flexible installation)

Standards and regulations

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-101

Commercial data

Item number	1530786
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	AF1CGA
Product key	AF1CGA
GTIN	4046356024464
Weight per piece (including packing)	238.1 g
Weight per piece (excluding packing)	238.1 g
Customs tariff number	85444200
Country of origin	DE
