HC-EVO-B16-CHWS-ELC-AL
-
Housing
1411464

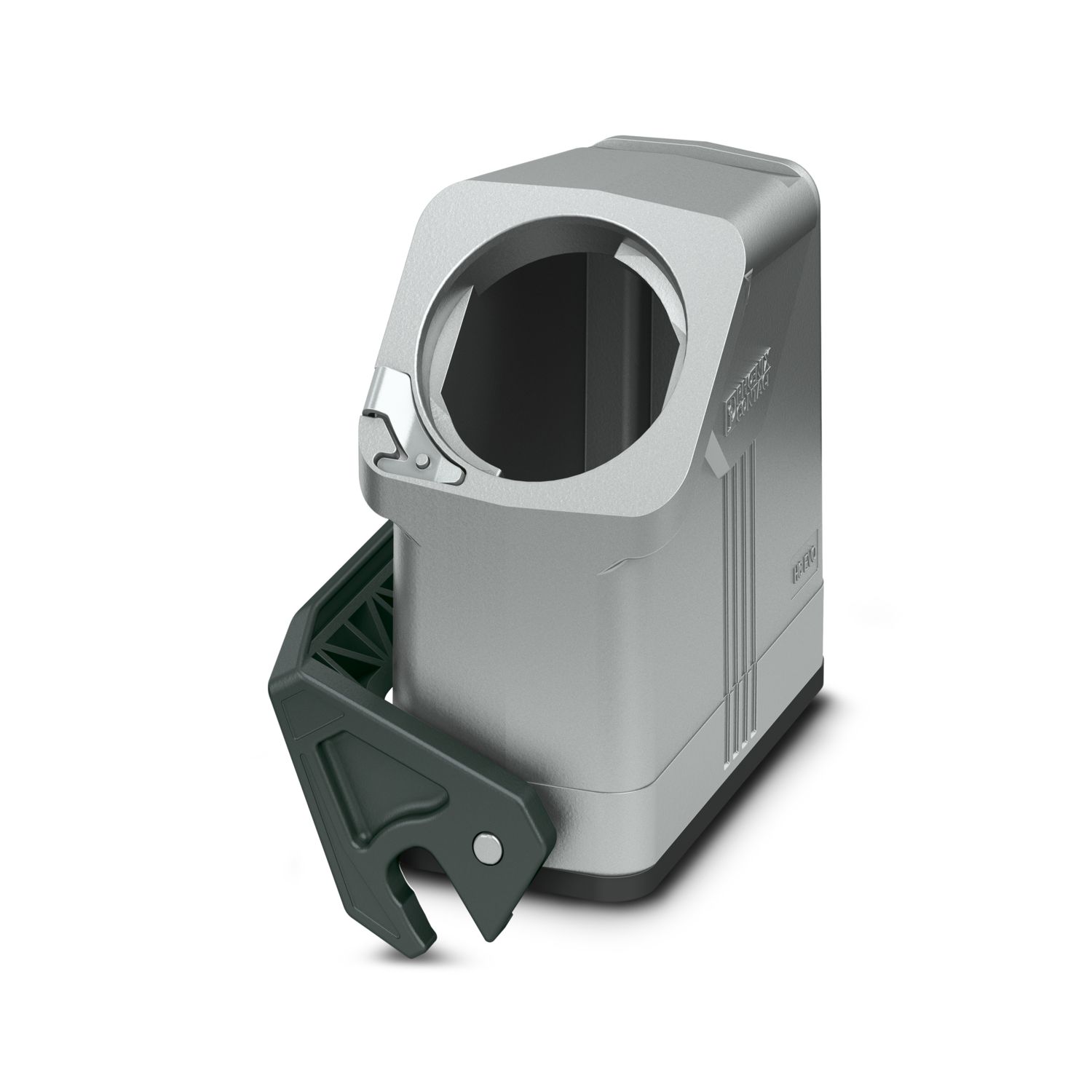

HEAVYCON EVO coupling housing, EMC version, without powder coating, with bayonet flange for EVO screw connection, B16, with single locking latch, height: 90.5 mm, without EVO screw connection.
Product details
| General | For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K |
| Product type | Housing with locking latch |
| Housing type | Coupling housings |
| Application | Standard |
| Type | B16 |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Pg screw connection | none |

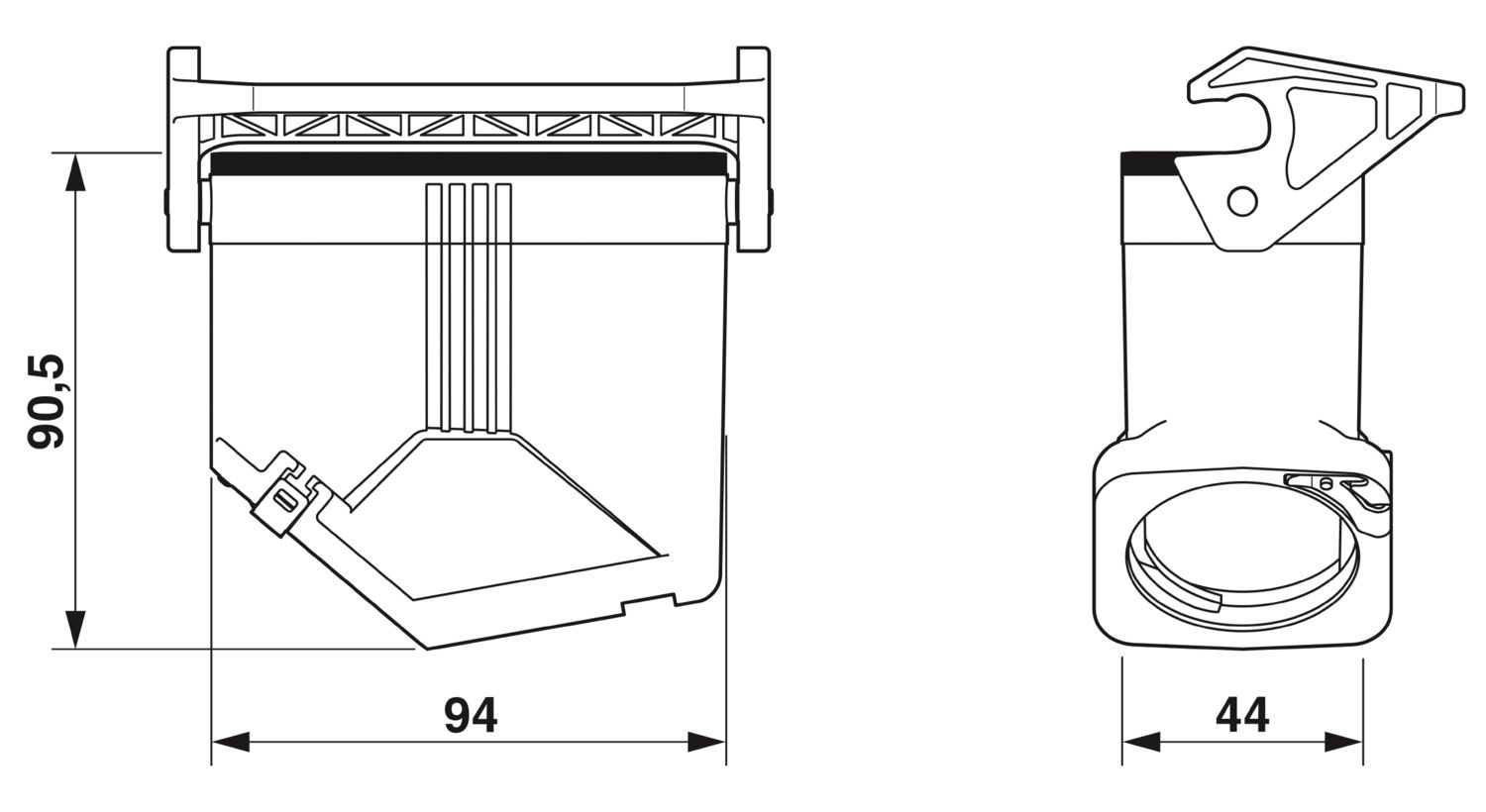

| Dimensional drawing |
|
| Width | 44 mm |
| Height | 90.5 mm |
| Length | 94 mm |
| Seal material | NBR, conductive |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Assembly note | The coupling basic housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. It enables the creation of a straight or lateral cable outlet. The EVO screw connection is assembled by hand or using a pipe wrench. |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Flexible cable outlet direction, lateral or straight
