HC-B 10-AMQ
-
Housing
1771325
HEAVYCON B10 panel mounting base, with double locking latch, height: 29 mm, with flat gasket
Product details
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B10 |
| Shielded | no |
| Pg screw connection | none |

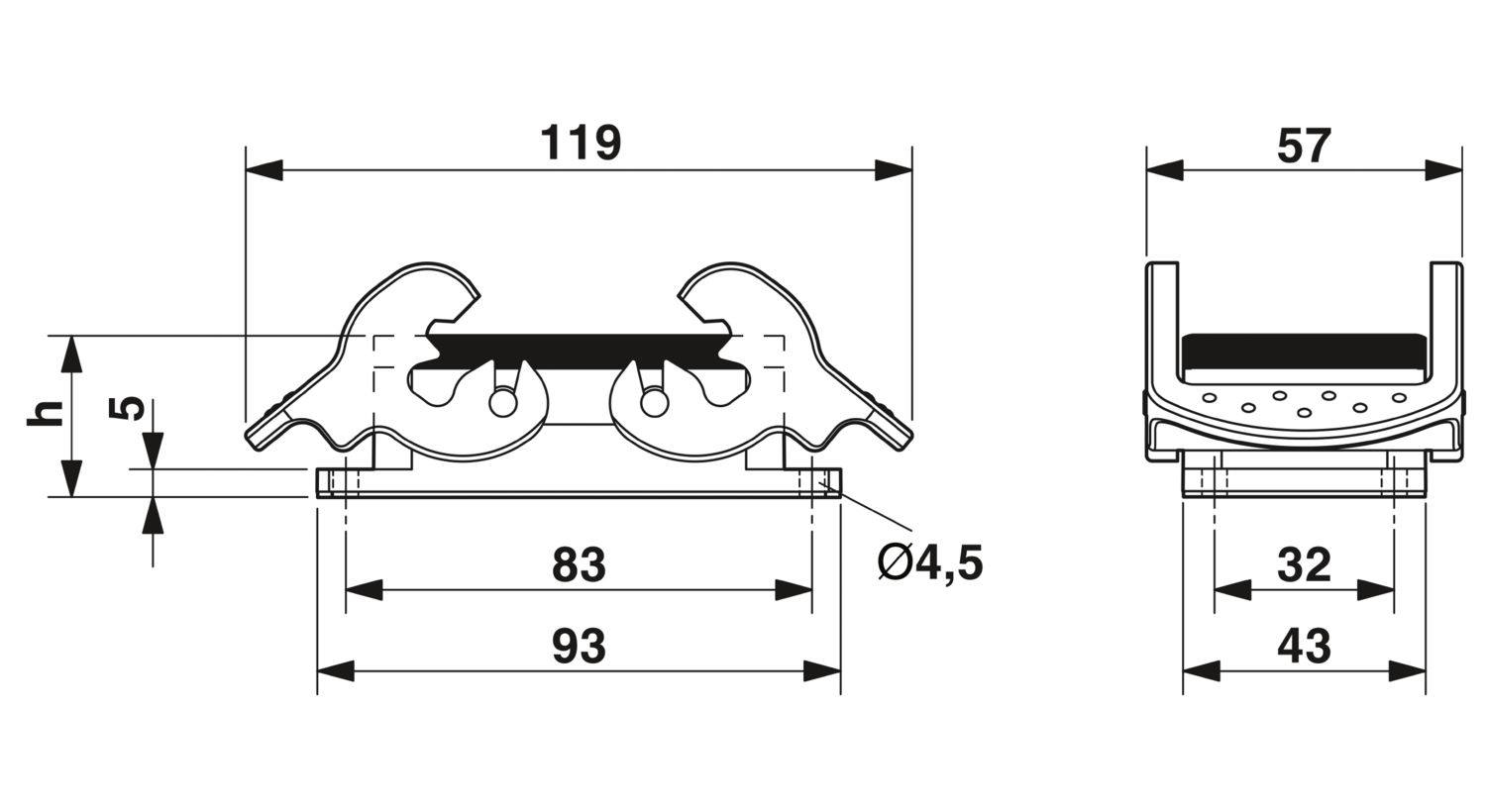

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 29 mm |
| Length | 93 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
| Seal material | NBR |
| CR | |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Locking type | Latch |
| Tightening torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Ambient conditions | |
| Degree of protection | IP65 (When plugged in) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
