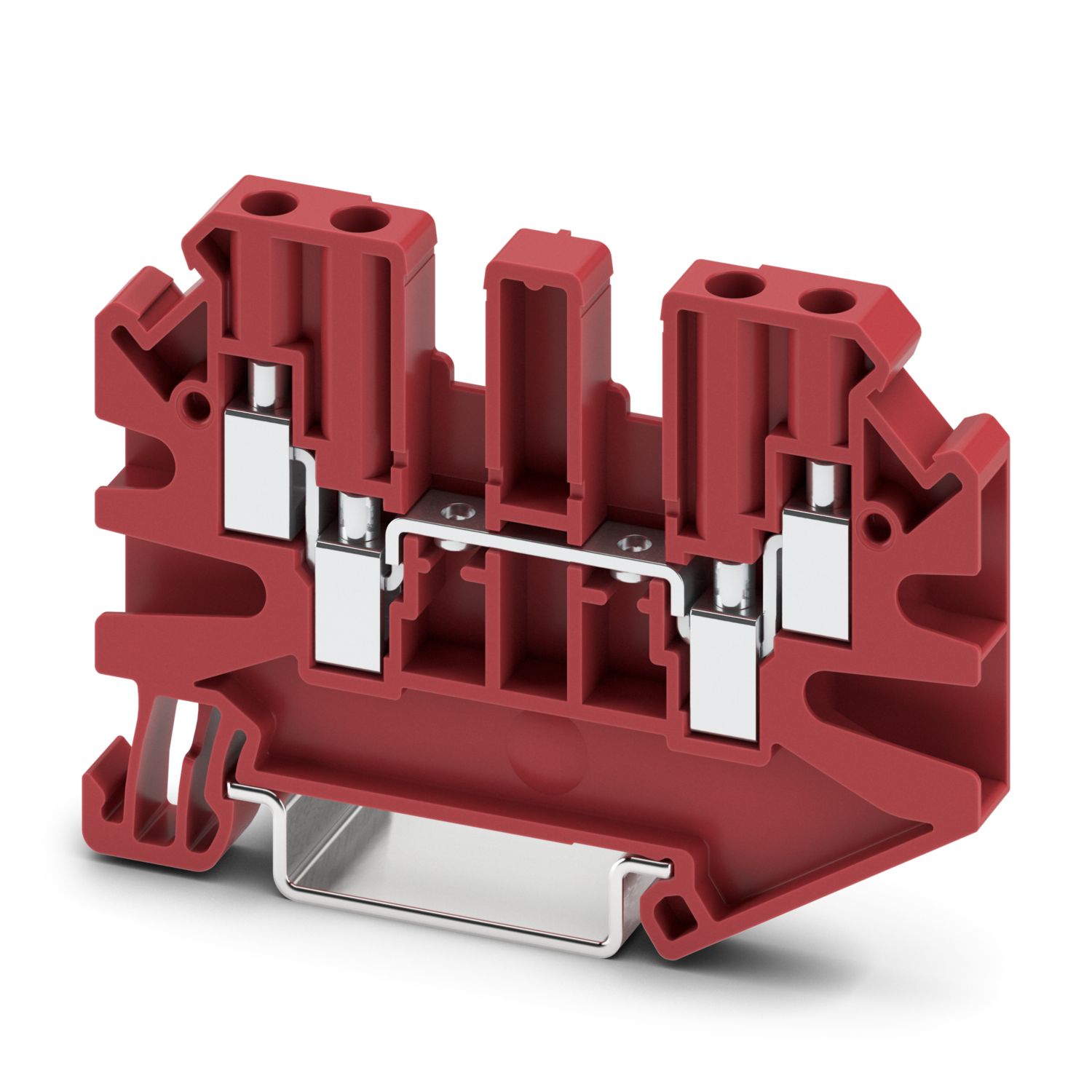

US 4-QUATTRO RD - Feed-through terminal block - 1748873

Product type	Multi-conductor terminal block
Product family	US
Area of application	Railway industry
	Machine building
	Plant engineering
	Process industry
Number of positions	1
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV

Screw thread	M3
Tightening torque	0.5 ... 0.6 Nm
Stripping length	8 mm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 6 mm²
Cross section AWG	24 ... 10 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 1.5 mm²
Cross-section with insertion bridge, rigid	2.5 mm²
Cross-section with insertion bridge, flexible	2.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1 mm²
Nominal current	32 A (with 6 mm² conductor cross section)
Maximum load current	32 A (In the case of a 6 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors)
Nominal voltage	1000 V
Nominal cross section	4 mm²

Width	6.2 mm
Height	68.6 mm
Depth	47.5 mm
Depth on NS 35/7,5	48.1 mm
Depth on NS 35/15	55.6 mm

Color	red (RAL 3001)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C

Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Mounting type	NS 35/7,5
Mounting type		NS 35/15

Item number	1748873
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE1213
Product key	BE1213
GTIN	4067923313439
Weight per piece (excluding packing)	22.22 g
Country of origin	CN

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

US 4-QUATTRO RD - Feed-through terminal block

1748873

Product details

ECLASS

ETIM

UNSPSC

Compatible products

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)

Mechanical data
Open side panel	Yes

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

US 4-QUATTRO RD - Feed-through terminal block 1748873

Product details

ECLASS

ETIM

UNSPSC

Compatible products

IS-K 4 - Bridge bar isolator 1302338

ISSBI 10- 6 - Bridge 0301505

LB 10-6 BU - Bridge 0202280

LB 10-6 RD - Bridge 0202293

LB 10-6 GY - Bridge 0202358

LB 100-6 GY - Bridge 0202345

LB 100-6 RD - Bridge 0202316

LB 100-6 BU - Bridge 0202303

FBI 100- 6 - Fixed bridge 0201650

FBI 10- 6 - Fixed bridge 0203250

FBI 20- 6 - Fixed bridge 0201867

WS 3- 6 - Warning label 1004115

WS 5- 6 - Warning label 1004403

WS 4- 6 - Warning label 1004209

KSS 3- 6 - Short-circuit connector 0309523

KSS 6 - Short-circuit connector 0301547

RPS - Reducing plug 0201647

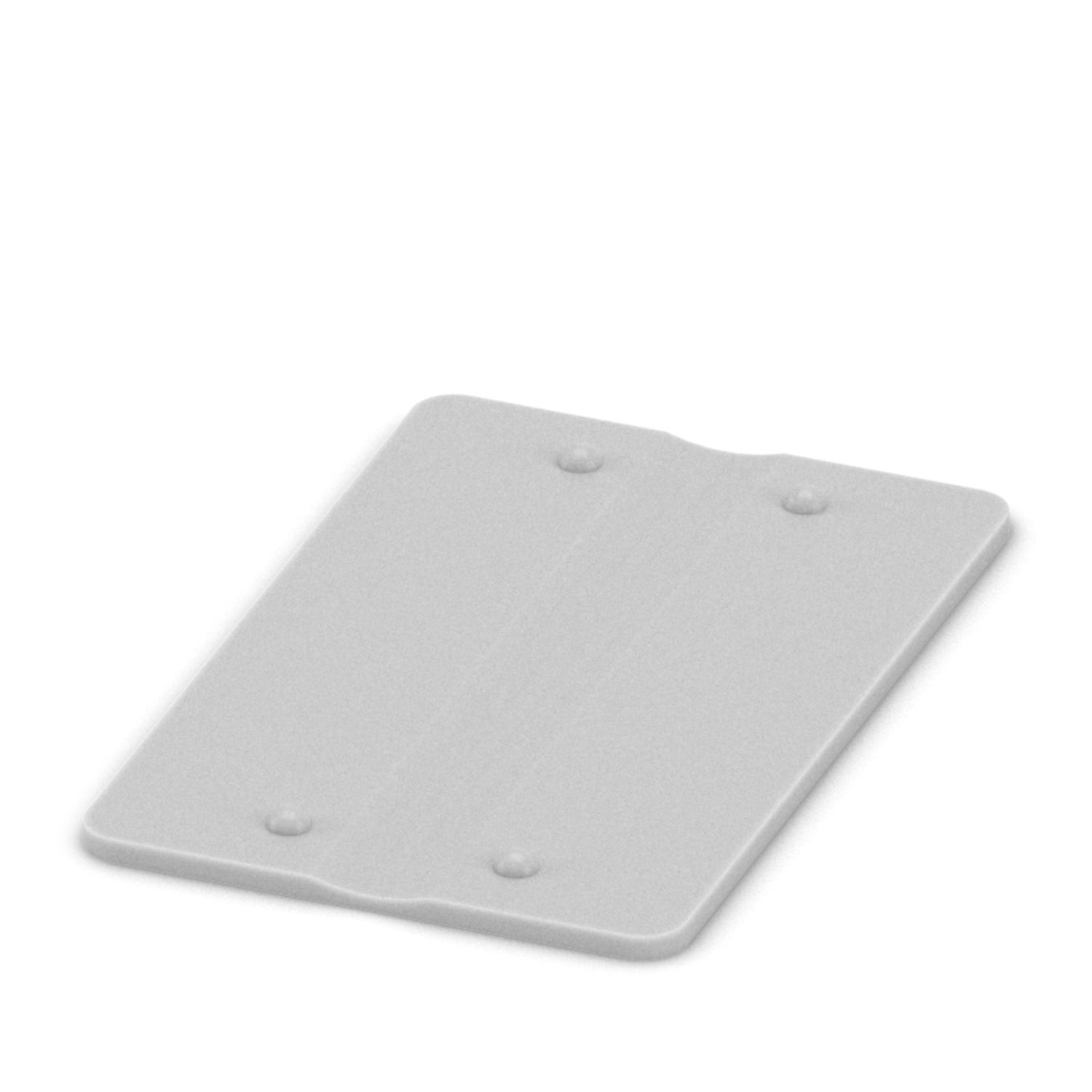

TS-KK-US - Separating plate 1797575

SBS 6:UNBEDRUCKT - Marker card 1007222

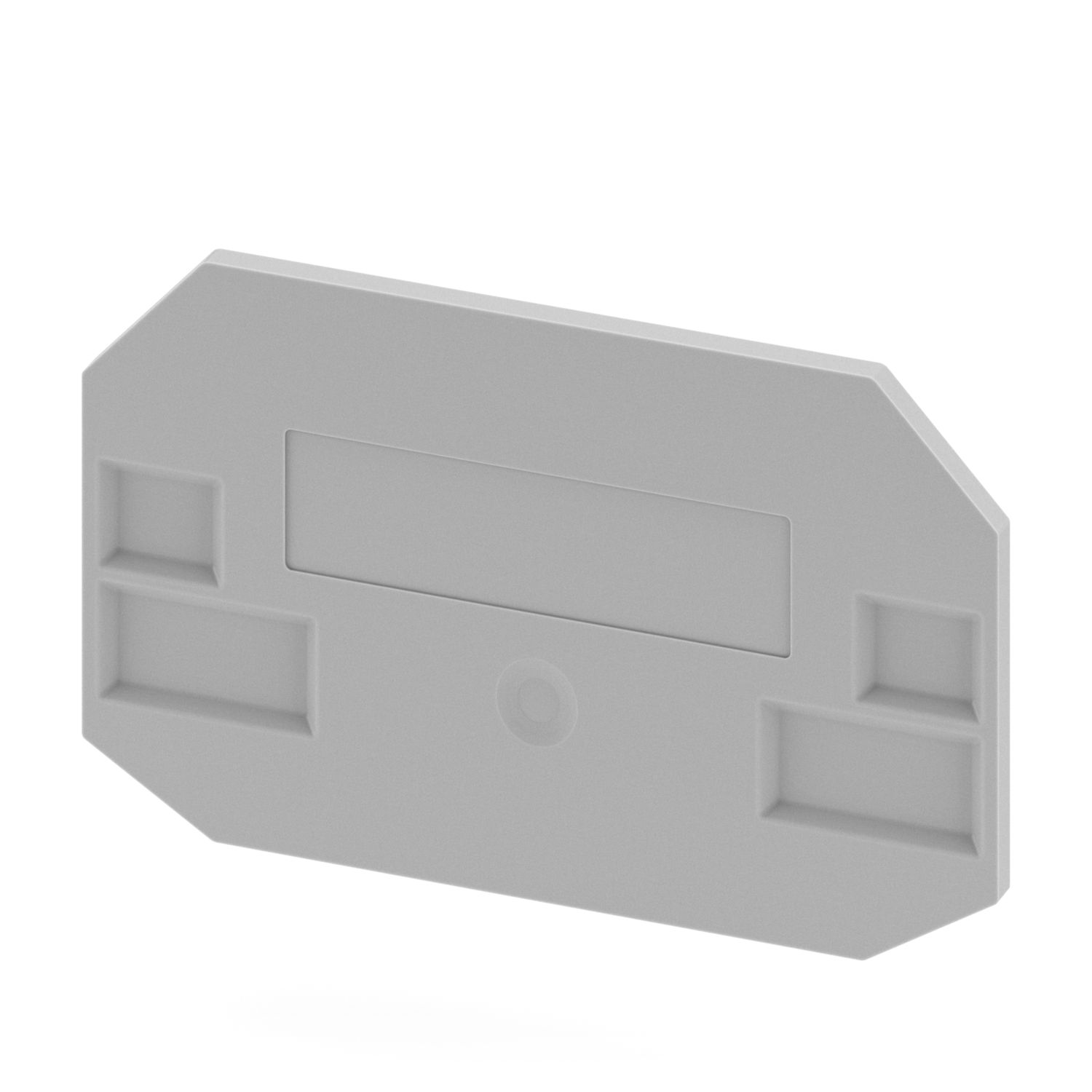

D-US 4-QUATTRO - End cover 1787655
