C PX A 605X405X252
-

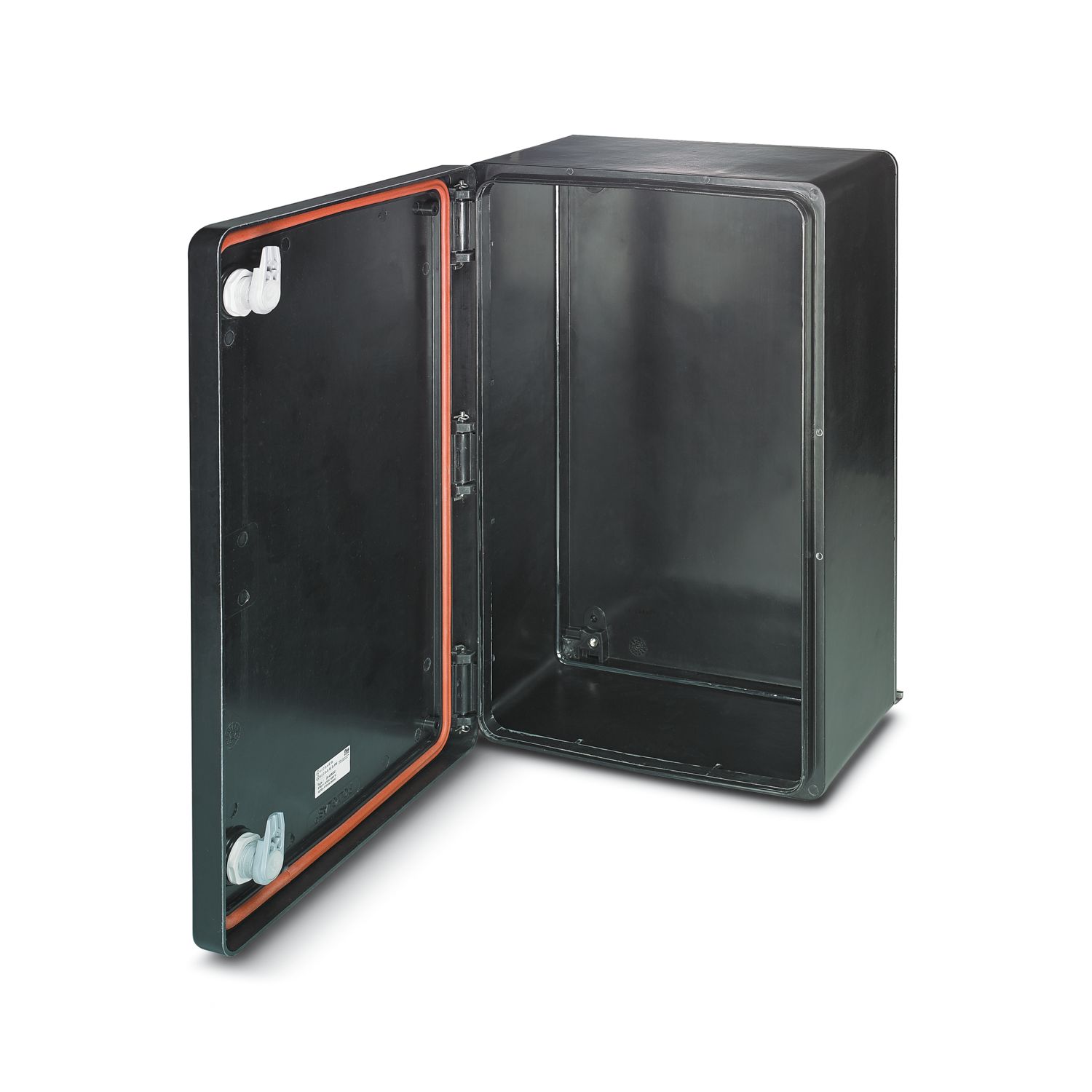

Empty enclosure
0899334
Empty enclosure, material: Glass-fiber-reinforced polyester with added graphite, black, 405 mm x 605 mm x 252 mm, type of locking: Door, scope of supply - ATD: Door hinge with 8 mm square lock, Door hinge with 8 mm square lock
This product needs further products for operation.
Mandatory accessories
Product details
| General | Mounting panel required |
| Product type | Terminal box |
| Type | Ex empty enclosure with door |
| Scope of supply | Door hinge with 8 mm square lock |
| Insulation characteristics | |
| Protection class | II |

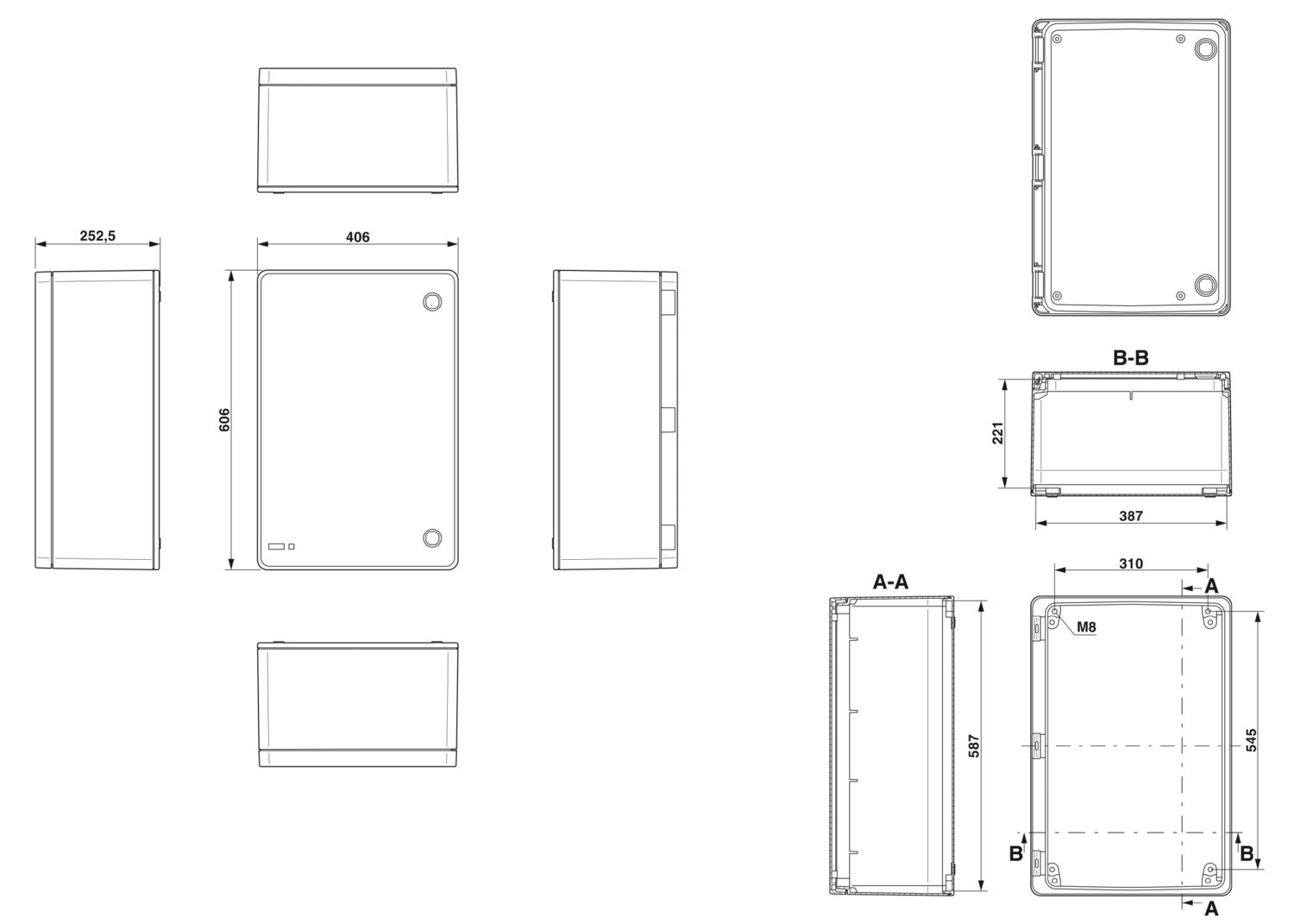

| Dimensional drawing |
|
| Width | 405 mm |
| Height | 605 mm |
| Depth | 252 mm |
| Clearance width, maximum DIN rail length | 565 mm |
| max. assembly length | 545 mm |
| Color | black |
| Material | Glass-fiber-reinforced polyester with added graphite |
| Flammability rating according to UL 94 | V0 |
| Seal material | Silicon |
| Components | halogen-free |
| General | |
| Type of locking (GRP) | Door Square lock |
| Degree of protection (IP code) | |
| Degree of protection | IP66 |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 127 °C |
| Assembly note | External fixing clips |
| External fixing clip not supplied as standard | |
| Direct DIN rail mounting | no |
| Useable DIN rail type | NS 35 |
